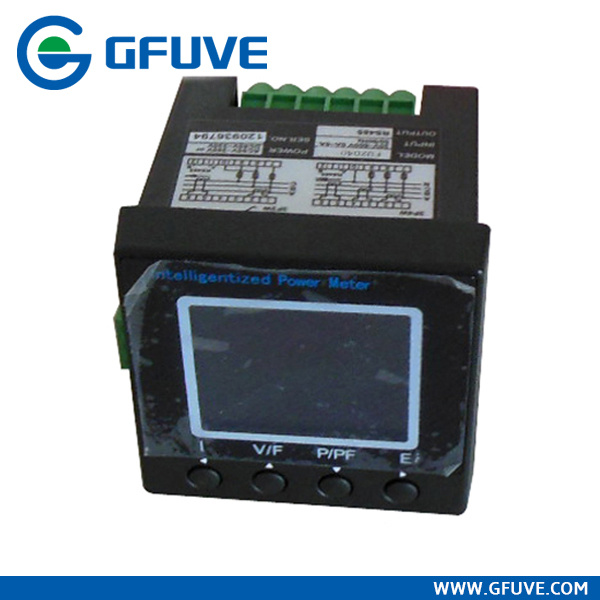

FU2040 Stop single phase digital power meterIntroductionFU2040 is a LCD display power analyzer, metering and displaying all the measured parameter in one circuit and computing four quadrants energy. This model can work in wide temperature range.
Measurement ParametersVoltage (pH-N); Voltage (pH-pH); Current; Frequency; PF; Active Power(W); Reactive Power(Q); Apparent Power(S)
ComputationForward / Reverse active / reactive power energy.
Measuring Range30~600V, 0~6A, 45~60Hz
Measuring Accuracy
Frequency: 0.1%
Electric energy: 0.5%, 1.0%
Voltage: 0.2%± 0.1V
Current: 0.2%± 0.001A
Power: 0.5% ± 0.4W
Power Factor: 0.5% ± 0.001
DisplayLCD Display, 3 Displays. 4 Operation keys.
CommunicationRS-485 interface port support, 32(128) Networking, ModBus-RTU
Communication protocol.
Connection Mode3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W.
ProgrammableMeasuring System: 3P4W/3P3W etc.
Transformation Ratio: PT, CT.
Communication:Address: 1~247; Baud: 1200~19200; Parity Bit: N/E/O
Energy: Reset
DimensionMounting Panel: 72 X 72mm
Thickness: 13mm
Depth: 60mm
MountingPanel Mounting
Trepanning: 68 X 68mm
Power Supply (AC/DC)AC85~265V / DC85~330V
Power Consumption: <4VA
Working conditionTemperature: -25 ~ 55 ° C
Humidity: 20% ~ 95%RH, Without condensation
