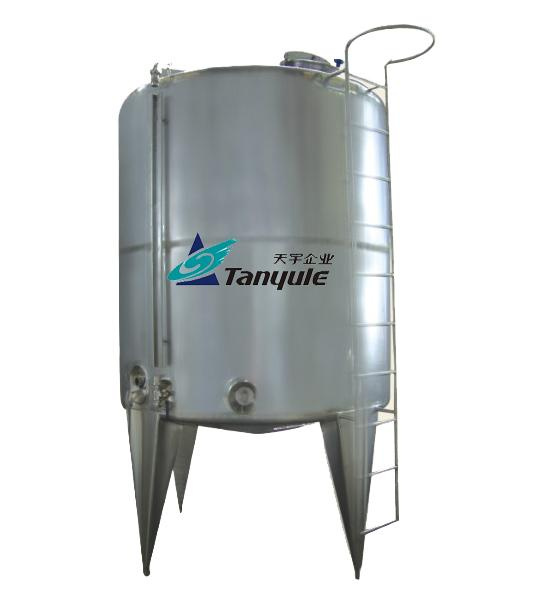

Storage Tank
Price: |
Negotiable |
Min Order: |
1 |
Heating and cooling tank
Standard cutting and welding machine for manufacturing of tank.
Application
Field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc
Mateial: SUS304 SUS316L
Jacket for heating and cooling water or for mixer of glycol and water, or oil
Isolation: PU foam or rock wool
Configuration:
Manhole
CIP cleaning ball
Adjustable leg
Thermometer (according to customer requirement)
Ladder (according to customer requirement)
Jacket (according to customer requirements)
Liquid lever meter and lever controller
Effective volume (L) | Dimension of tank(d × h ) (mm × mm) | Total height (mm) | Diameter Of inlet & outlet | Heat preservation layer Δ (mm) |
500 | 840 × 1000 | 2250 | 38 | 60 |
600 | 920 × 1000 | 2300 | 38 | 60 |
700 | 990 × 1000 | 2300 | 38 | 60 |
800 | 950 × 1220 | 2500 | 38 | 60 |
900 | 1010 × 1220 | 2500 | 38 | 60 |
1000 | 1060 × 1220 | 2550 | 51 | 60 |
1500 | 1160 × 1500 | 2850 | 51 | 60 |
2000 | 1340 × 1500 | 2900 | 51 | 60 |
3000 | 1410 × 2000 | 3400 | 51 | 60 |
4000 | 1620 × 2000 | 3450 | 51 | 60 |
5000 | 1810 × 2000 | 3500 | 51 | 60 |
6000 | 1980 × 2000 | 3550 | 51 | 60 |
7000 | 1930 × 2440 | 4000 | 51 | 60 |
8000 | 2060 × 2440 | 4000 | 51 | 60 |
9000 | 2180 × 2440 | 4050 | 51 | 60 |
10000 | 2300 × 2440 | 4050 | 51 | 60 |
12000 | 2270 × 3000 | 4600 | 51 | 60 |
15000 | 2530 × 3000 | 4700 | 51 | 60 |
20000 | 2640 × 3660 | 5400 | 51 | 60 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CNZH Group
Consist of branch factory of following:
Wenzhou Tianyu light industry machinery Co., Ltd
Jiangsu Tianyu light industry machinery Co., Ltd
Shanghai Tianyu light industry machinery Co., Ltd
Wenzhou Tianyu machinery industry Research institute
Shanghai Dipu automatic technology Co Ltd
The CNZH headquartered in WENZHOU, China, is a globally successful leading group with more than 5 companies in China which leading the food processing production line. The company focuses on mechanical engineering especially food and liquid process engineering and equipment. CNZH Group technologies are applied in the food, dairy, winery and brewery, beverage, condiments, biochemical as well as the pharmaceutical industries.
Main Industry solution service:
Dairy Engineering: Pasterilizeed milk, UHT milk, yoghurt, etc
Beverage Engineering: Vegetable, fruit juice, tea, functional beverage etc
Condiments Engineering: Ingredient of sea food, bone, vinegar etc
Pharmaceutical Engineering: Herb, injection, biochemical, pet,
Food Engineering: Cans, agricultural byproduct,
Fine Biochemical & Biological Engineering: Essence, tea polyphenols, enzyme preparations.
CNZH cooperated with most of the biggest food group and make out engineering service that obtain excellent credit and reputation.
Service:
Turnkey production line solution
Processing formula consultation and support,
Production line design,
Machine fabrication and supply,
Engineering installation,
Commissioning,
After-service maintains and support
CNZH also support special fabrication for the customers with their own design and technical support.
Customers
Mars(Dubai), DuPont, Coca-Cola, Pepsi, Robust(milk), Bosch(machine),
Yili(milk), Mengniu(milk), Guangming(milk), huiyuan(juice), Wahaha(milk), Kanshifu(machine), Huiyuan, Wahaha, Nongfu spring water, Taizhinai(milk beverage), zhejiang panda dairy(milk), etc
Advanced machines for stainless steel machine fabrication,
CNC machines processing, regulated QC control system and testing system and equipments(X-ray test gun, testing machines and examine machines etc ), ensured the product in high quality.
