Stranding Machine, Rigid Frame Stranding Machine
Product Specifications
| Prod Model: |
JLK-710/630/500/400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: Metal: |
Color: as Required |
| Precision: |
High Precision |
| Certification: |
ISO |
| Automatic Grade: |
Semiautomatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
12 Months |
Product Description
Stranding machine

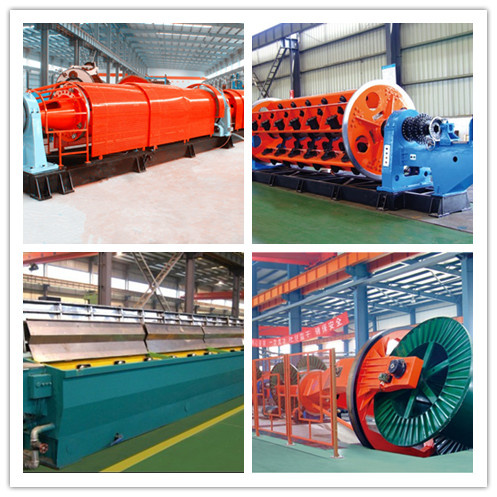

JLK Rigid Frame Stranding Machine
1. Application:The machine is used for stranding copper or aluminum wire, round or sector compact conductors. It also can be used for pre-twisting, compacting and stranding of sector conductors. The line is mainly used for stranding and compacting of sector or round conductors including aluminum wire, copper wire and ACSR etc.Rigid Frame Stranding Machine adopt tandem rigid type stranding without back twist. Equipped with bobbin auto-loading lifter, for 19-37-61B conductors round & pre-spiral sectors stranding and cable armouring. Hysteresis bobbin tension control.
This line is mainly used for stranding and compacting of sector or round conductors including aluminum wire, copper wire and ACSR etc.
2. Main Compositions:2.1. Pay-off 2.2. Nonmetal taping device (delectable)2.3. Wire guiding stand 2.4. Pre-twisting and compacting device (selectable)2.5. Stranding cage 2.6. Length counter2.7. Wire assembling and compacting device2.8. Dual wheel capstan2.9. Mechanical transmission system (selectable)2.10. Electric control system2.11. Safety protection system2.12. Bobbin hoist device (selectable)2.13. Take-up2.14. Auto loading/unloading device (selectable) 3. Products:3.1. Based on different bobbin size in stranding cage: PND400, PND500, PND630, PND710
3.2. Based on different cores of stranding cable: 1+6+12+18+24+30(91B), 12+18+24+30(84B), 1+6+12+18+24(61B), 12+18+24(54B), 1+6+12+18(37B), 12+18(30B), 1+6+12(19B)
3.3. Based on different loading/unloading device: side-bottom auto loading, side auto loading, bottom auto loading, manual loading.
3.4. Based on different transmission: separate motor transmission, ground shaft transmission.
3.5. Based on different bobbin clamping device: cylinder clamping, warm-gear clamping, hand wheel clamping
3.6. Based on different tension control: pneumatic automatic feedback type tension control, fixed tension mechanical friction type tension control.
3.7. Based on different wire broken detector: wire broken detector of every bobbin, wire broken detector of stranding cage
3.8. Based on different central pay-off: shaft-less type, shaft type and manual type in structure; Φ400, Φ500, Φ630, Φ1600, Φ2000, Φ2500 in bobbin size.
3.9. Based on different take-up: portal type, shaft-less type and shaft type in structure; Φ1600, Φ2000, Φ2500, Φ3150, Φ3500 in bobbin size.
3.10. Based on different control of main motor: DC speed regulation, AC frequency conversion speed regulation, electromagnetic speed regulation.
4. Our company:Yangtze Precision Machinery & Technology Co.,Ltd. is a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China. Our main products consist of three main series, drawing machine, stranding machine and laying up machine include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying up machine, laying-up stranding machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, extruder, optical fiber cable SZ stranding line, optical fiber sheath production line and relevant auxiliary equipment.
That's our connected informations:Yangtze Precision Machinery & Technology Co.,Ltd. Changjiang Jinggong Industrial Park, Lu'an Economic Development Zone, Anhui, China 237161 Tel:+86-564-3634-718 Fax:+86-564-3634-717 Website:www.ahcjcm.com
Anhui Changjiang Jinggong Wire & Cable Machinery Co., Ltd. is a subsidiary of Jinggong Holding Group with registered capital of 40 million yuan and total investment 150 million yuan. With continuous development and extensive experience, it becomes a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China.
Our factory is located at Changjiang Jinggong Industry Park, Lu' An Economic Development Zone. The modern plant covers an area of 48, 000 square meters, equipped with large scale processing machine and a complete range of test equipment. Our company is a member of China Electrical Equipment Industrial Association and Shanghai Wire and Cable Industry Association. We have established the Quality Management System (QMS) with ISO9000 standard and achieved SGS certification of golden supplier on Made-in-China. Three main series, over 40 kinds of products have acquired CE marking for Europe market.
Our feature products include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying-up machine, planetary core laying-up machine, armoring machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, trolley wire drawing machine, extruder and relevant auxiliary equipment.
Technology To Further Our ' People First' Philosophy. By offering the customers full technical support, and services including commissioning, training of personnel, one year warranty and continuous spare part supply, we always aim to provide our global customers top quality products and service.
