Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Air Pressure: |
0.49---0.63MPa |
| Strip Speed (Loading Anything): |
85mm/S |
| Tensioning Force: |
8.5kn |
| Weight: |
4.8n |
| Strip Specification: |
32*(0.8--1.2)Mm |
| Delivery Time: |
1 Month |
| Warranty: |
12 Months |
Product Description

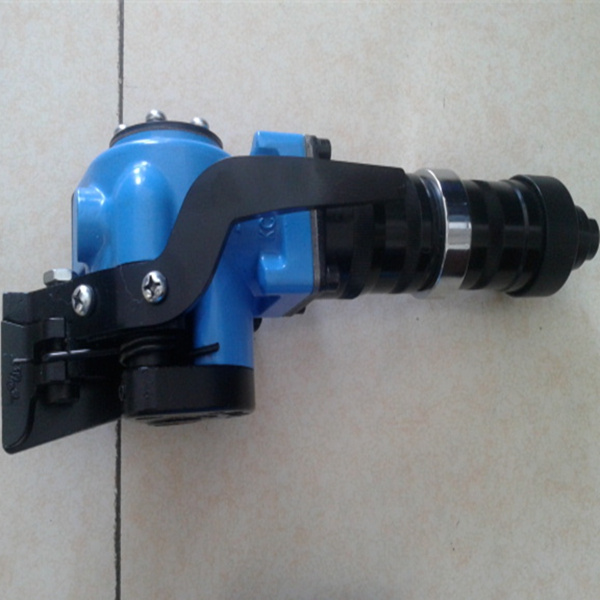

This machine is to packing the good which weight ≤ 500kg
Metal strip width: 16mm, 19mm, 25mm, 32mm
Metal strip thickness: 0.5-0.6mm
There should be 0.8m³/min air flow and 0.49--0.63Mpa compressed air source in workshop when we use this strapping tool. the average air cosumption during strapping process is 1m³. The compressed air should enter into the strapping tool through oil water separator, pressure adjusting valve and lubricator. Every branch pipe should come from top of the main pipe and its ID should surpass 15mm. The ID of plastic pipe which is connected to the strapping tool is 9mm with length within 5m.
Our company is to supply steel processing equipment, such as tube mill, cut to length, slitter, cold rolling mill, duct production machines, press braker, shear, and other steel equipment. Our machine has high quality and competitive price.
With our technical innovation, our machine can reduce power consumption, increase efficiency.
