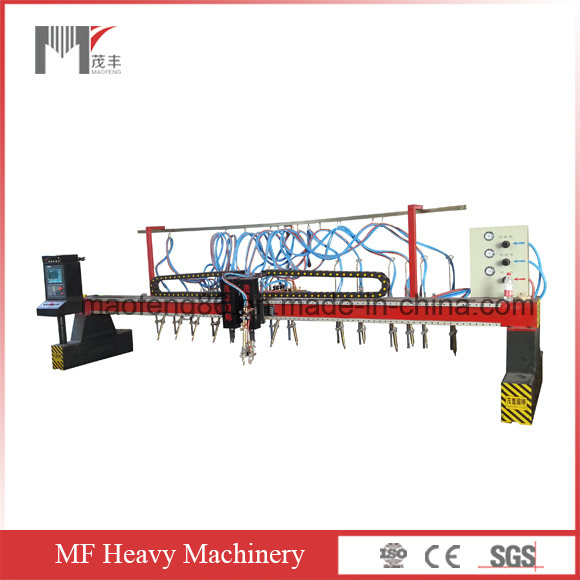

Strip Cutting Torch CNC Flame Cutting Machine

Name: Strip Cutting Torch CNC Flame Cutting Machine
Brand: china-manufacturer-directory.com
SKU: 741951035
Availability: InStock
Rating: 4.7 (74 reviews)

Supplier:	MaAnShan Maofeng Heavy Machinery Manufacturing Co., Ltd.
Price:	US $ 100-80000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MF40/120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cross Beam Length(X Axis):	4000mm
Longitudinal Rail Length(Y Axis):	12000mm
Cutting Torch Station Numbers:	9 Groups of Vertical/1 Group of Transverse
Cutting Mode:	Flame
Flame Cutting Thickness:	5-300mm
Cutting Gas:	Acetylene\Propane
Process Usage:	Metal-Cutting CNC Machine Tools
Performance Classification:	Economical CNC Machine Tools
Numerical Control:	CNC/MNC
Movement Method:	Bilateral Driver
Control Method:	CNC

Product Description

Straight line cutting machine for cutting straight pieces, multi-head straight cutting machine, straight line flame cutting machine, straight strip cutting machine, straight line metal cutting machine
1, This cutting machine adopts gantry structure, its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users'demands, also can be configured as abnormity cutting and strip cutting.
2, It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Cross Beam Length(X axis)	4000mm
Longitudinal Rail Length(Y axis)	12000mm;24KGS heavy rail(can be lengthened according to user's demand)
Effective Cutting Width (X axis)	3200mm
Effective Cutting Length (Y axis)	10000mm
Cutting torch station numbers	9 groups of vertical/1 group of transverse
Cutting Mode	Flame
Servo Driving motor	Stepper motor
Drive Mode	Bilateral Driver
Drive Method	Rack and pinion drive for X and Y axes
Flame Cutting Thickness	5-200mm
Cutting Speed	0-3500mm/min
Cutting torch lifting distance	≤150mm
Moving Precision	0.01mm/step
Nesting Software	STARCAM
Cutting Gas	Acetylene\Propane
Plasma Gas	Pressed air\Oxygen\N2
Automatic Torch Height Controller	Capacitive height controller for flame cutting

Established in 2006. MaAnShan Maofeng Heavy Machinery Manufacturing Co., Ltd. It passed authentication of the ISO9001: 2000 quality management system in 2005, and CE certificate in 2008. Dedicate to product development, quality and service improvement, creating greater value for global customers to enhance the international competitiveness of China forging equipment industry.

It mainly produces brand series products: Hydraulic swing/Guillotine Shear, Hydraulic plate bending machine, press, Cutting machine. Three/Four roll bending machine etc, Four series of more than one hundred models. The large electro-hydraulic servo press brake WADF series filled the gap in AnHui province and won good praise. And have exported to Europe and America, Southeast Asia, Middle East such countries.

We firmly believe that through our unremitting effofts, we are able to meet your needs, and achieve win-win cooperation
