Structure Cabling Optical Fiber GJFJH Indoor Soft Optical Fiber Cable
Introduction

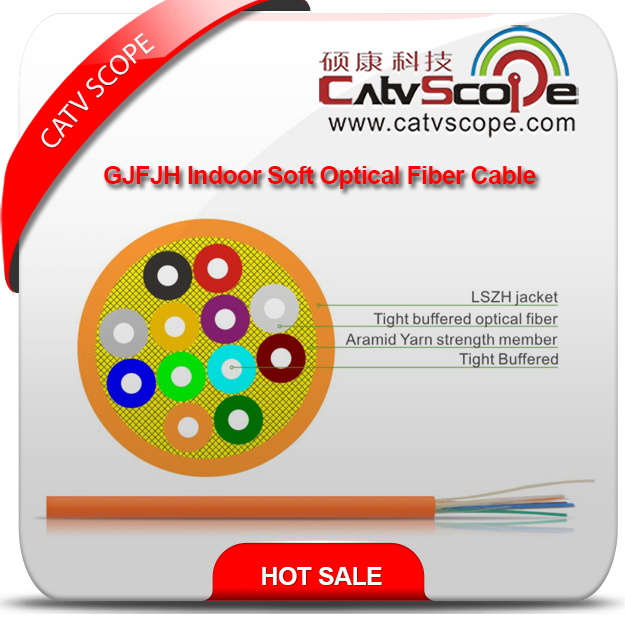

One 900µm buffered fibers are surrounded by aramid yarn strength members and a flame-retardant jacket.
G652D Fiber Information
Mode field diameter(1310nm): 9.2µm±0.4µm
Mode field diameter(1550nm): 10.4µm±0.8µm
Cladding diameter: 125µm±1.0µm
Coating diameter: 245µm±7µm
Cut off wavelength of cabled fiber (λcc): ≤1260µm
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.21dB/km
Bending loss at 1550nm(100 turns, 30mm radius): ≤0.05dB
Dispersion in the range 1288 to 1339nm: ≤3.5ps/(nm·km)
Dispersion at 1550nm: ≤18ps/(nm·km)
Dispersion slope at zero dispersion wavelength: ≤0.092/(nm2·km)
Cable Structure and Parameter
SN | Item | Unit | Value |
| 1 | no. of fibers | count | 12 |
| 2 | tight buffer material |
| LSZH |
| 3 | tight buffer color |
| yellow |
| 4 | strength member |
| blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua |
| 5 | tight buffer diameter | mm | 0.9±0.05 |
| 6 | jacket thickness | mm | 0.75 |
| 7 | cable diameter | mm | 5.6 |
| 8 | cable weight | kg/km | 28 |
| 9 | short term tension | N | 660 |
| 10 | short term crush | N/100mm | 1000 |
| note: mechanical sizes are nominal valus |
Characteristic of Fiber Optical Cable
Mechanical Characteristic and Test Method |
| Tensile strength | conform to IEC 794-1-E1 |
| Crush | conform to IEC 794-1-E3 |
| Impact | conform to IEC 794-1-E4 |
| Repeated Bending | conform to IEC 794-1-E6 |
| Torsion | conform to IEC 794-1-E7 |
| Flexing | conform to IEC 794-1-E8 |
| Cable bend | conform to IEC 794-1-E11 |
| Water Penetration | conform to IEC 794-1-F5B |
| Temperature requirement | operation | -40ºC~+60ºC |
| installation | -10ºC~+60ºC |
| storage/transportation | -40ºC~+60ºC |
| Temperature cycling test | conform to IEC 794-1-F1 |
| Bending Radius | unloaded | 10 times of outer diameter |
| loaded | 20 times of outer diameter |
Order Information
Item | Specification | Description |
| CSP171 | 2-12 cores | Single Mode |
| CSP172 | 2-12 cores | Multimode |
