Structure Steel Building (SC-063)

Product Specifications

Prod Model:	SC-063
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Service:	Best Service and Good After-Sales Service
Material:	Q235, Q345
Color:	White, Blue, Green or as Buyer's Requirements
Type:	H-Section Steel
Standard:	BS
Trademark:	Quality Carbon Structural Steel and Alloy Structural Steel
Forming:	Hot-Rolled Steel
Connection Form:	Bolt Connection
Member:	Steel Column
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Top Wall Beam
Application:	Steel Structure Bridge

Product Description

We provide you high quality steel structure warehouse in one-stop service from designing, quotation, manufacturer, production, loading in containers and installation if you need. Our steel framed house materials are PU or EPS sandwich panel, steel beam, H-section steel, environmental roof panel and so on which are produced by our factory. We also have good experience in house designing and building, because we have built many houses in China and abroad. We can provide customization service for our clients as requirements

Steel structure Specification:
Structure type: The steel structure is formed of single span or multiple span doors and steel structures. The larges span can reach up to 40m. Hoist can be designed as well.

Brand name	YB standard steel building, green and fast construction period
Design Parameters	1)Live load on roof(KN/M2) 2)Wind speed(KM/H) 3)Snow load (KG/M2) if have 4)Earthquake load if have 5)Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure
Model	1. Single slope, Double slope, Multi-slope. 2. Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam	1. Material Q345(S355JR)or Q235(S235JR) steel. 2. All bolts connecting. 3. Straight cross-section or Variable cross-section.
Surface treatment	Hot-dip galvanized or painted.
Roof and wall panel	1. EPS ,PU ,Rockwool sandwich panel. 2. Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). 3. Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width.
Brace	X or V as well as other type bracing made from angle, round pipe etc.
Accessories	Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc.
Window	PVC or Aluminum Alloy.
C or Z purlin	Size from C120~C320, Z100~Z200.
Door	Sliding or Rolling  up shutter door.
Carrying capacity	1. Resisting winds and seismic impacts. 2. Bearing heavy snows.
Drawing	1. Making the design,drawing and quotation according to your requirements very soon. 2. Making the quotation according to your drawings. 3. Giving you the satisfying opinion to your project.
Certificate	ISO9001:2008, AWS certified welder passport,SGS,BV.

Product: steel structure warehouse
Material: High Quality Material
Others: As Per Clients' Requirement.


  We can supply steel structure warehouse as per customer's requirement. We have advanced equipment as well as excellent technical staff which assure the welding and installment quality of steel structure and galvanizing. We can design, fabricate and install all kinds of steel structure buildings. Item name: Steel structure Size: length width and height according to customer's requirements. Material: Q235B&Q345B&Q195Surface: Hot dips galvanize or painted Drawings: we can make the quotation according to customer's drawing. We can also make the design and quotation according to customer's requirements. We can offer all the detailed drawings for installation and fabrication. Packing: decided by buyer. Load in to 40ft GP, 20ft GP or 40HQ or 40 OT.


4. Design Parameters If you need we design for you, pls supply us the following parameter together with detail size:
1)Live load on roof(KN/M2)
2)Wind speed(KM/H)
3)Snow load (KG/M2) if have
4)Earthquake load if have
5)Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure

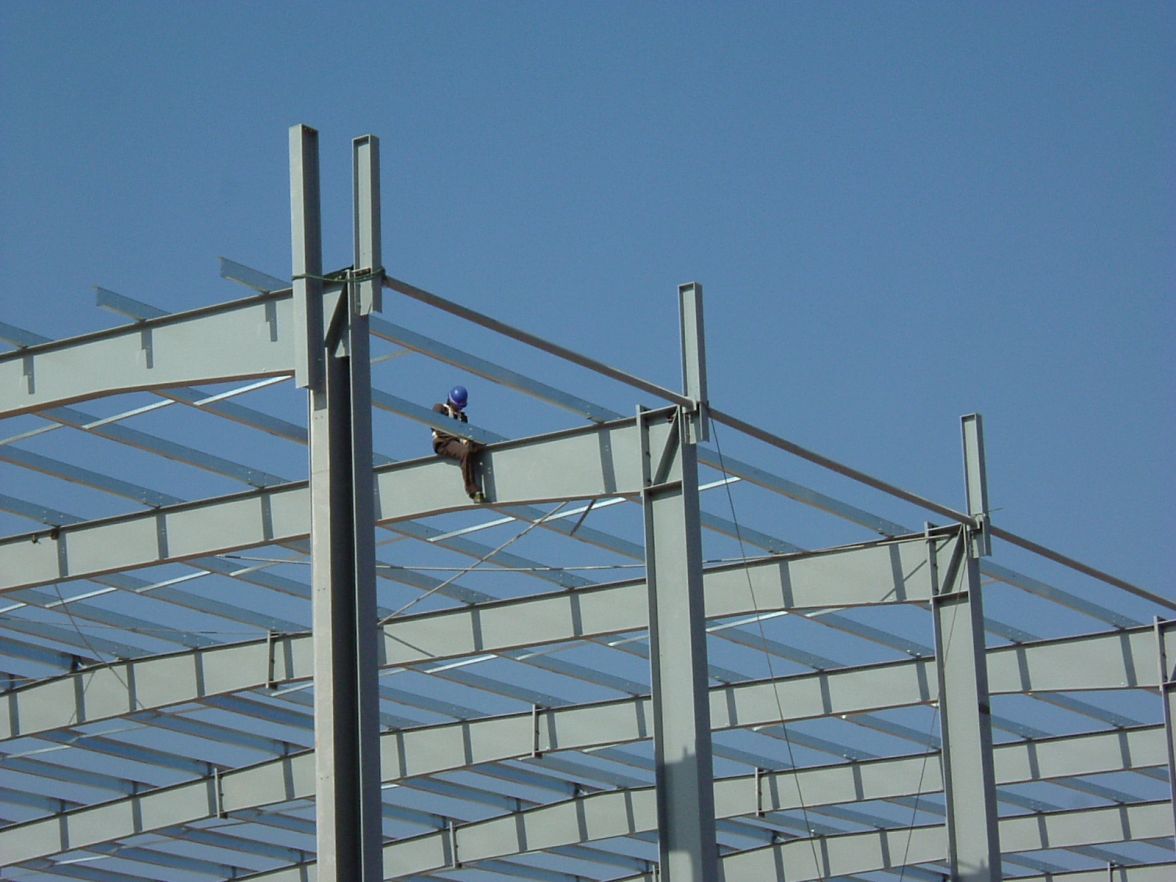

Materials: The main frame (pillar and beam) is made of hot roll H-style steel or welded H-style steel (square steel). The frame pillar is connected with the foundation by pre-embedding anchor bolt. The beam and pillar, beam and beam are connected by bolts with high intensity. The envelope construction net is made of cold form C-style purlin. The wall and roof are made of colored steel tiles or colored steel sandwich panels, which is connected with the purlin by tap bolt.

We are committed to supplying you unique or personalized steel structure warehouse or steel framed building, that's to say, you could get special styles with your ideal steel house and steel building from us.

Our philosophy is say Quality is life, Service is soul, your satisfaction is guaranteed.

We encouraged our customers to telephone us or send email to in order to take advantage of the latest discounted prices or products available. Please call or email us right now!
