Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. >> Sts-750L Total Station with Absolute Encoding System

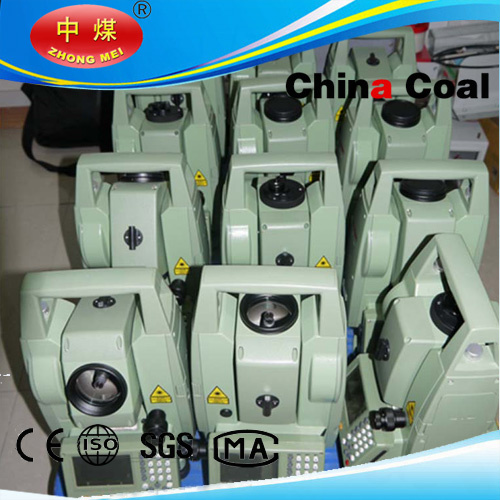

Sts-750L Total Station with Absolute Encoding System

Name: Sts-750L Total Station with Absolute Encoding System
Brand: china-manufacturer-directory.com
SKU: 706147442
Availability: InStock
Rating: 4.8 (69 reviews)

Supplier:	Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Price:	US $ 1-100000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	STS-750L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Time:	Fine: 1s; Tracking: 0.5s
Prism Constant:	Manual Input, Auto Correction
Measuring Method:	Absolute Encoding
Minimum Reading:	1"/5" Selectable
Image:	Erect
Tube Length:	154mm
Accuracy:	Standard
Vertical Lines:	Standard
Horizontal Line:	Standard
Offset:	Standard

Product Description

Model: STS-750L
Production Introduction:
Super large LCD display
Absolute encoding system
High performance CPU
Upgraded laser path system
Abundant surveying programs

STS-752L	STS-755L	STS-752R6	STS-755R6
DISTANCE MEASUREMENT
single prism	5.0km		5.0km
reflectorless	-		600m
accuracy	with reflector: 2mm+2ppm; without reflector: 5mm+3ppm
reading	max: 99999999.999 min: 1mm
measuring time	fine: 1s; tracking: 0.5s
atmospheric refraction & earth curvation correction	manual input, auto correction
prism constant	manual input, auto correction
ANGLE MEASUREMENT
measuring method	absolute encoding
diameter of raster disk	79mm
minimum reading	1"/5" selectable
Accuracy	2"	5"	2"	5"
detection method	horizontal: dual vertical: dual
TELESCOPE
image	erect
tube length	154mm
effective aperture	Telescope: 45mm; EDM: 50mm
magnification	30X
field of view	1°30'
resolving power	3"
min. focusing distance	1m
AUTO VERTICAL COMPENSATOR
system	1-axis liquid-electric		2-axis liquid-electric
working range	±3'
accuracy	1"
LEVEL
plate vial	30"/2mm
circular vial	8'/2mm
OPTICAL PLUMMET
image	erect
magnification	3X
focusing range	0.5m ~ ∞
field of view	5°
OTHER
display type	2 sides, alphanumeric keyboard
laser plummet	optional
water & dust proof	IP54
ON-BOARD BATTERY
type	rechargeable Ni-H battery
voltage	6V
operating time	8 hours
DIMENSION & WEIGHT
dimension	200 X 190 X 350mm
weight	6.0kg
