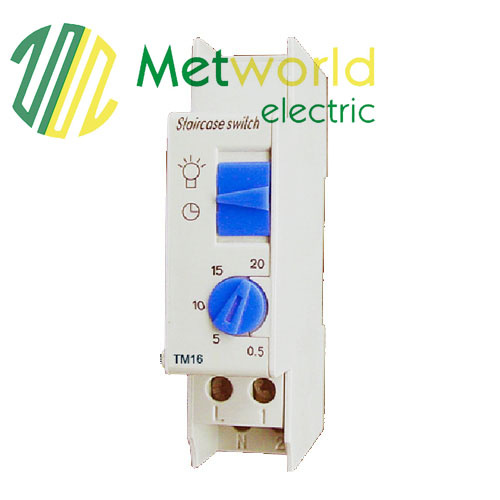

Sttm Series Staircase Time Switch (STTM-16)
Product Specifications
| Prod Model: |
STTM-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
Customized |
| Standards: |
CE |
| Brands: |
Metworld |
| Series: |
Sttm |
| Voltage: |
600V AC |
| Frequency: |
50,60Hz |
| No. Of Contact: |
1no |
| Color: |
Grey,Blue,White,etc. |
| Terminal Capacity(Max): |
4mm2 |
| Temperature Range: |
-25oc~+40oc |
| Type: |
Infrared Sensor Switch |
| Standard: |
Standard |
| Certification: |
CE |
| Principle: |
Electromechanical |
| Wires: |
Customized |
| Application: |
Customized |
| Size: |
Customize |
Product Description

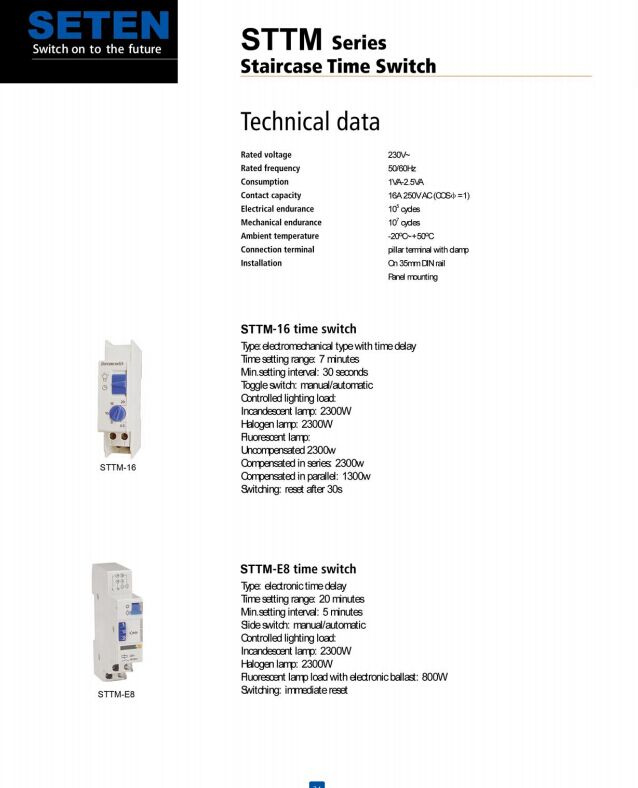

STTM-16 time switch
Type:electromechanical type with time delayTime setting range: 7 minutesMin.setting interval: 30 secondsToggle switch: manual/automaticControlled lighting load:Incandescent lamp: 2300WHalogen lamp: 2300WFluorescent lamp:Uncompensated 2300wCompensated in series: 2300wCompensated in parallel: 1300wSwitching: reset after 30s
-
STTM-E8 time switch
Type: electronic time delayTime setting range: 20 minutesMin.setting interval: 5 minutesSlide switch: manual/automaticControlled lighting load:Incandescent lamp: 2300WHalogen lamp: 2300WFluorescent lamp load with electronic ballast: 800WSwitching: immediate reset
-

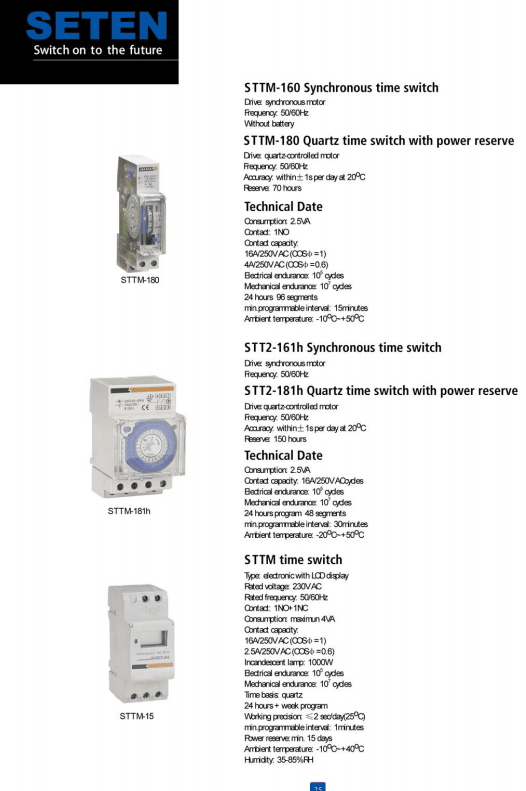

time switch TM160
STTM-160 Synchronous time switchDrive: synchronous motorFrequency: 50/60HzWithout batterySTTM-180 Quartz time switch with power reserveDrive: quartz-controlled motorFrequency: 50/60HzAccuracy: within±1s per day at 20oCReserve: 70 hoursTechnical DateConsumption: 2.5VAContact: 1NOContact capacity:16A/250V AC (COSφ=1)4A/250V AC (COSφ=0.6)Electrical endurance: 105 cyclesMechanical endurance: 107 cycles24 hours 96 segmentsmin.programmable interval: 15minutesAmbient temperature: -10oC~+50oC
-
time switch STM161H
STM161H Synchronous time switchDrive: synchronous motorFrequency: 50/60HzSTT2-181h Quartz time switch with power reserveDrive:quartz-controlled motorFrequency: 50/60HzAccuracy: within±1s per day at 20oCReserve: 150 hoursTechnical DateConsumption: 2.5VAContact capacity: 16A/250V ACcyclesElectrical endurance: 105 cyclesMechanical endurance: 107 cycles24 hours program 48 segmentsmin.programmable interval: 30minutesAmbient temperature: -20oC~+50oC
-
STTM time switch STM15
STM15 Type: electronic with LCD displayRated voltage: 230V ACRated frequency: 50/60HzContact: 1NO+1NCConsumption: maximun 4VAContact capacity:16A/250V AC (COSφ=1)2.5A/250V AC (COSφ=0.6)Incandescent lamp: 1000WElectrical endurance: 105 cyclesMechanical endurance: 107 cyclesTime basis: quartz24 hours + week programWorking precision: ≤2 sec/day(25oC)min.programmable interval: 1minutesPower reserve:min. 15 daysAmbient temperature: -10oC~+40oCHumidity: 35-85%RH
-
Measuring Device
Standard
Rated insulation
Temperature range
Terminal capacity(Max)
Type of terminal
Module width
Confirming to EN / IEC60051-1-2
600V AC
-25oC~+40oC
6mm2
Pin type
36mm
STPM-45A Ammeter
Rated Frequency: 50Hz
Power Consumption: 1.5VA
Accuracy: Class 1.5
Temperature Range: -25oC~+40oC
Insulation Voltage: 600V
STPM-45V Voltmeter
Rated Frequency: 50Hz
Power Consumption: 3.5VA
Range: 0-600V.0-300V
Accuracy: Class 2.5
Temperature Range: -25oC~+40oC
Insulation Voltage: 600V
STPM-D45A Ammeter
Display: 3 1/2 Digitals
Accuracy: 0.5%
Standards: EN / IEC60051-1-2
Rated current: 0-10A AC,0-5A AC
Auxiliary voltage: 115/230V 50Hz
Power consumption: 1.8VA
Rated frenquency: 50Hz
Insulation voltage: 660V
Test voltage at 50Hz 1 min: 2000V
Terminal capacity(Max): 4mm2
STPM-D45V Voltmeter
Display: 3 1/2 Digitals
Accuracy: 0.5%
Standards: EN / IEC60051-1-2
Rated voltage: 600VAC
Auxiliary voltage: 115/230V 50Hz
Power consumption: 1.8VA
Rated frenquency: 50Hz
Insulation voltage: 660V
Test voltage at 50Hz 1 min: 2000V
Terminal capacity(Max): 4mm2
| Rated voltage | Rated frequency | Consumption | Contact capacity | Installation |
| 230V | 50/60HZ | 1VA-2.5VA | 16A 250VAC | On 35mm Din rail |
