Stx800 Series Big Event Stage PA Audio Speaker System

Name: Stx800 Series Big Event Stage PA Audio Speaker System
Brand: China-Manufacturer-Directory.com
SKU: 773782515
Availability: InStock
Rating: 4.9 (132 reviews)

Supplier:	Guangzhou Skytone Audio Co., Limited
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	stx800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Passive/Unpowered 2 Way Full Frequency
Size:	12"/15"18"
Model:	Stx812m/Stx815m/Stx825/Stx818s/Stx828s
Finish:	Environmental Water-Based Paint
Finish Features1:	Waterproof
Finish Features2:	No Odor of Paint
Finish Features3:	Hard Scratching Resistant Wood Varnish
Finish Features4:	Imported Spray Painting
Finish Features5:	Dry in 3 Minites
Noise:	<95dB
Operation Mode:	Wire / Remote Control
Application:	Commercial
Certification:	SGS
Monitor:	LCD Screen
THD:	<0.005%
Hi-Fi:	Professional Preformence
Speaker System:	Professional Preformence
Speaker Material:	Plywood

Product Description

Product Description

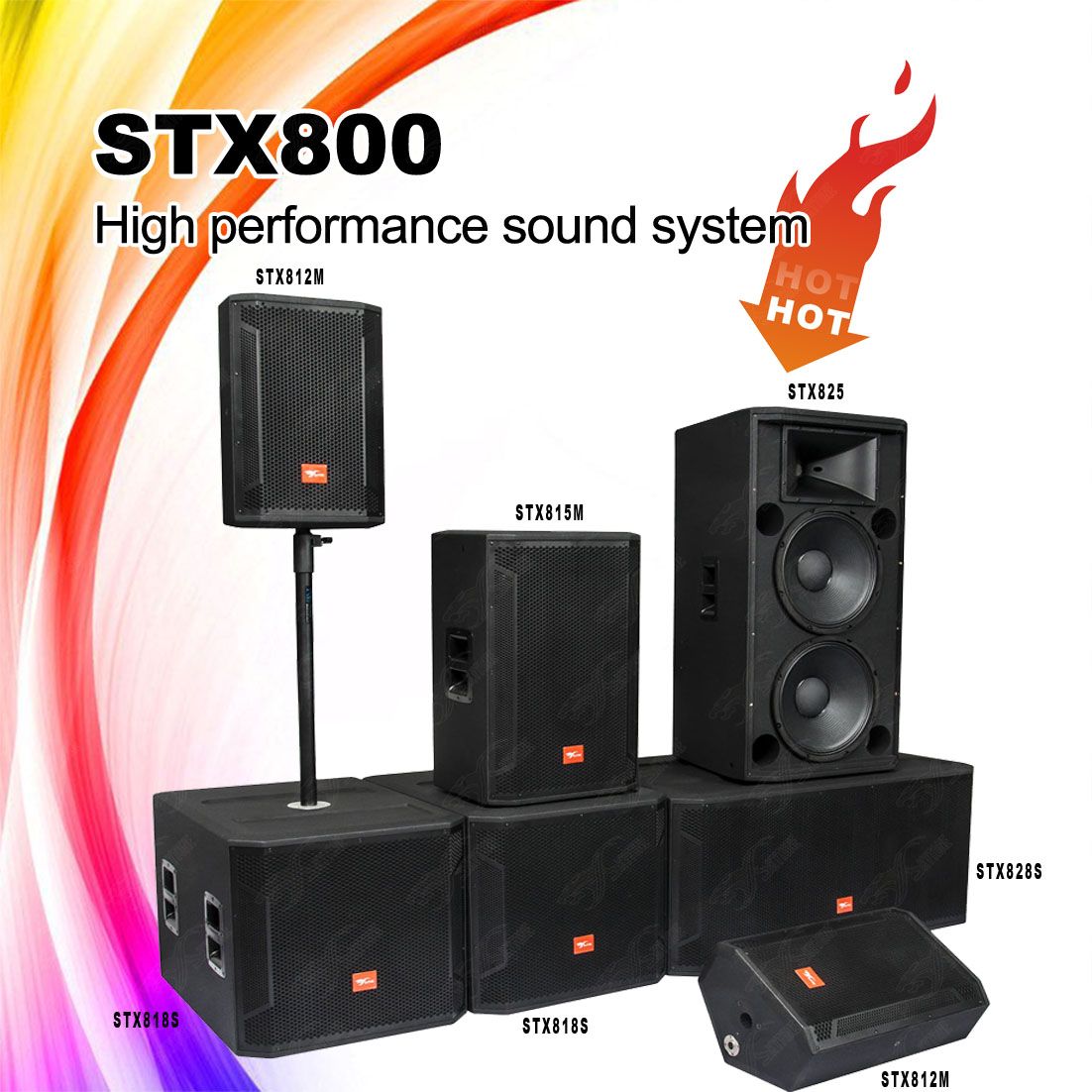

STX800 series Professional Speaker, Speaker Box, PA Speaker

STX800 series professional speaker:
Including model:

STX812M stage monitor speaker ---1x12" full frequency
STX815M stage monitor speaker ---1x15" full frequency
STX825 pro audio ---2x15" full frequency
STX818S subwoofer -1x18" subwoofer speaker box
STX828S dual 18" subwoofer --- 2x18" subwoofer speaker box

Major Features:

The STX800 Series was designed to bridge the space between light-duty portable PA speakers and flown full-size line array tour sound systems. Our goals at the inception of this project were simple: Offer a high performance, high density system solution in a truck-pack friendly format. Develop concert-worthy floor monitors and side fills that could affordably complement any touring sound system. Deliver an affordable, great sounding subwoofer that could reproduce true low frequency at elevated sound pressure levels.

With three full-range systems and two subwoofers, the STX Series can cover just about any professional application. Whether you're in need of ancillary speakers for a full-blown tour sound system, ground-stacking for a live concert performance, installing speakers in dance clubs or performance venues, touring clubs with your band, or you are a performing mobile DJ, STX800 Series is the smart choice.

Model	STX812M	STX815M	STX825	STX818S	STX828S
Frequency Range ( -10 dB)	50 Hz-20 kHz	41 Hz-20 kHz	34 Hz-20 kHz	35 Hz-250 Hz	32 Hz-250 Hz
Frequency Response (± 3 dB)	75 Hz-20 kHz	55 Hz-20 kHz	42 Hz-19 kHz	40 Hz-120 Hz	37 Hz-120 Hz
Coverage Pattern	70× 70nominal	70× 70 nominal	90 × 50 nominal	/	/
Sensitivity (1W/1m)	95 dB	96 dB	98 dB	96 dB	99 dB
Power Rating	450 W / 900 W / 1800 W	600 W / 1200 W / 2400 W	1200 W / 2400 W / 4800 W	800 W / 1600 W / 3200 W	1600 W / 3200 W / 6400 W
Power Rating	(Continuous/Program/Peak)	(Continuous/Program/Peak)	(Continuous/Program/Peak)	(Continuous/Program/Peak)	(Continuous/Program/Peak)
Rated Maximum SPL	130 dB SPL Peak	131 dB SPL Peak	136 dB SPL Peak	132 dB SPL Peak	138 dB SPL Peak
Nominal Impedance	8Ω	8Ω	4Ω	8Ω	4Ω
Input Connectors	Two NL4	Two NL4	Two NL4	Two NL4	Two NL4
Operational Modes	Full Range/Bi-Amp	Full Range/Bi-Amp	Full Range/Bi-Amp	Subwoofer	Subwoofer
Dimensions (H x W x D)	571 mm x 355 mm x 264 mm	721 mm x 436 mm x 329 mm	1066 mm x 568 mm x 573 mm	558 mm x 568 mm x 718 mm	564 mm x 1137 mm x 714 mm
Dimensions (H x W x D)	(22.5" x 13.4" x 10.4")	(28.4" x 17.2" x 13.0")	(42.0" x 22.4" x 22.6")	(22.0" x 22.4" x 28.3")	(22.2" x 44.8" x 28.1")
Net Weight	19 kg ( 42 lbs)	26 kg (58 lbs)	51 kg (112 lbs)	45 kg (100 lbs)	82 kg (180 lbs)
