Product Specifications
| Prod Model: |
H3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Multistage Pump |
| Power: |
Electric |

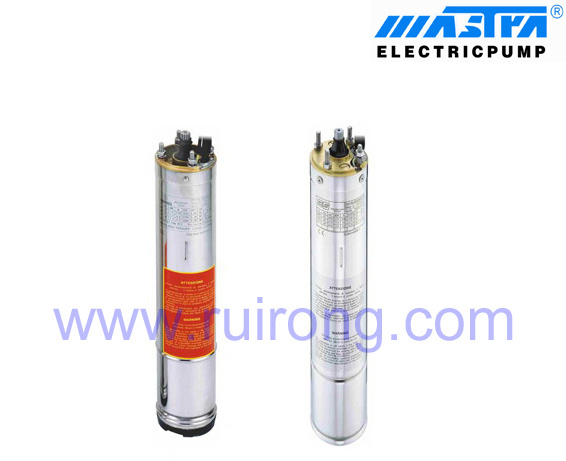

Product Description
Characters:
Conform to international standard of iec34-1, CE, whole blocked asynchronous motor with squirrel cage rotor.
Outer shell, shaft and bottom made of stainless steel.
Nickel plated cast-iron upper bracket.
Swedish thrust bearing or equivalent products can undertake higher thrust load.
Italian mechanical seal.
Pressure automatic adjusting device made of oil-proof and waterproof reformed butyl rubber.
Flange connector conforms to the standard of NEMA(USA national electrical manufacturing association). Lacquer-coated wire conforms to USA standard of NEMA mw37-c.
Material:
High-quality cold-rolled silicon steel lamination.
Mechanical seal.
220-resistant lacquer-coated wires.
High-quality bearings.
|
NO. |
Type |
kW |
HP |
Current(A) |
cos |
rpm |
L(mm) |
W(Kg) |
|
1 |
H3033M224 |
0.25 |
0.33 |
2.45 |
0.86 |
2800 |
358 |
6 |
|
2 |
H3050M224 |
0.37 |
0.50 |
3.25 |
0.91 |
2800 |
378 |
6.3 |
|
3 |
H3075M224 |
0.55 |
0.75 |
4.35 |
0.91 |
2800 |
398 |
6.7 |
|
4 |
H3100M224 |
0.75 |
1.0 |
5.70 |
0.95 |
2800 |
438 |
7.7 |
3"Oil Cooling Motor Three-phase 380/415V 50Hz
|
NO. |
Type |
kW |
HP |
Current(A) |
cos |
rpm |
L(mm) |
W(Kg) |
|
1 |
H3050T224 |
0.37 |
0.50 |
1.8 |
0.63 |
2780 |
358 |
6.1 |
|
2 |
H3075T224 |
0.55 |
0.75 |
2.1 |
0.65 |
2780 |
378 |
6.5 |
|
3 |
H3100T224 |
0.75 |
1.0 |
2.5 |
0.68 |
2780 |
398 |
6.8 |
|
4 |
H3150T224 |
1.1 |
1.5 |
3.5 |
0.70 |
2780 |
438 |
7.8 |
History: 21 years of experience in submersible pumps.
Products: 3'' 4'' 6'' 8'' submersible pumps, 4'' re-windable oil cooling submersible motors, 6'' 8'' water cooling submersible motors, 6'' stainless steel submersible motors. Sewage pumps. Multistage submersible pumps.
Technical: Italy pump and motor technology, NEMA standard
Certificate: CE, ISO9001: 2000
Productivity: 250, 000 sets/year.
OEM services available.
