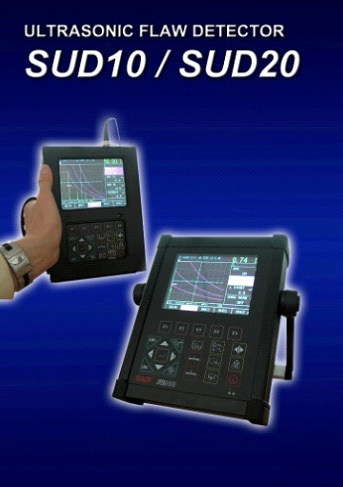

SUD10 Portable Ultrasonic Flaw Detector
Description:
SUD10 Portable Ultrasonic Flaw Detector is a portable, microprocessor-based instrument suitable for both workshop and field use.
SUD10 is integrated with international advanced digital integration and new EL display technology, is a smart Digital Ultrasonic Flaw Detector propelled by SADT.
SUD10 has almost all functions to meet requirements of professional application for non-destructive testing.
Features:
· Automatic calibration of transducer Zero Offset and/or Velocity
· Automatic gain, Peak Hold and Peak Memory
· Automatic display precise flaw location (Depth d, level p, distance s, amplitude, szdB, )
· Automatic switch three staff gauge ((Depth d, level p, distance s)
· Ten independence setup, any criterion can be input freely, we can work in the scene without test block
· Big memory of 300 A graph and 30000 thickness value.
· B scan
· RS232 port, communication with pc is eas
· The embeded software can be online updated
· Li battery, continue working time up to 8 hours
Other assistant function:
· Display freeze
· Automatic echo degree
· Angles and K-value
· Lock and unlock function of system parameters
· Dormancy and screen savers
· Electronic clock calendar
· Two gates setting and alarm indication
· High-speed capture and very low noise
· DAC, AVG, B Scan; Solid metal housing (IP65)
· Automatically make video of test process and play
· Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles
· Powerful PC software and data can be exported to Excel
Warranty:
One year warranty, battery not included.
Standard package:
SUD10 main body
Straight probe
Angle probe
Probe connection cable
Data managing software
Interface cable
Operation manual
Carrying case
Optional Accessories:
· PC software
· Test block
Specifications:
|
Title |
Parameter |
Title |
Parameter |
|
Measuring range(mm) |
0.5 ~ 10000 |
Measurement mode |
single,dual,THRU |
|
Vertical linearity error |
≤2.5% |
Reject |
0-80% |
|
Horizontal linearity error |
≤0.1% |
Pulse shift(μs) |
-20 ~ +3400 |
|
Sensitivity margin |
≥60dB |
Zero(μs) |
0.0 ~ 99.99 |
|
Dynamic scope |
≥32dB |
Port type |
BNC |
|
Resolution |
≥40dB |
Operating temperature |
-20~50 |
|
Frequency range(MHz) |
0.5 ~ 20 |
H×W×D(mm) |
240×180×50 |
|
Gain(dB) |
0 ~ 110 |
Weight(kg) |
2.2 |
|
Velocity |
1000 ~ 13000 |
-- |
|
