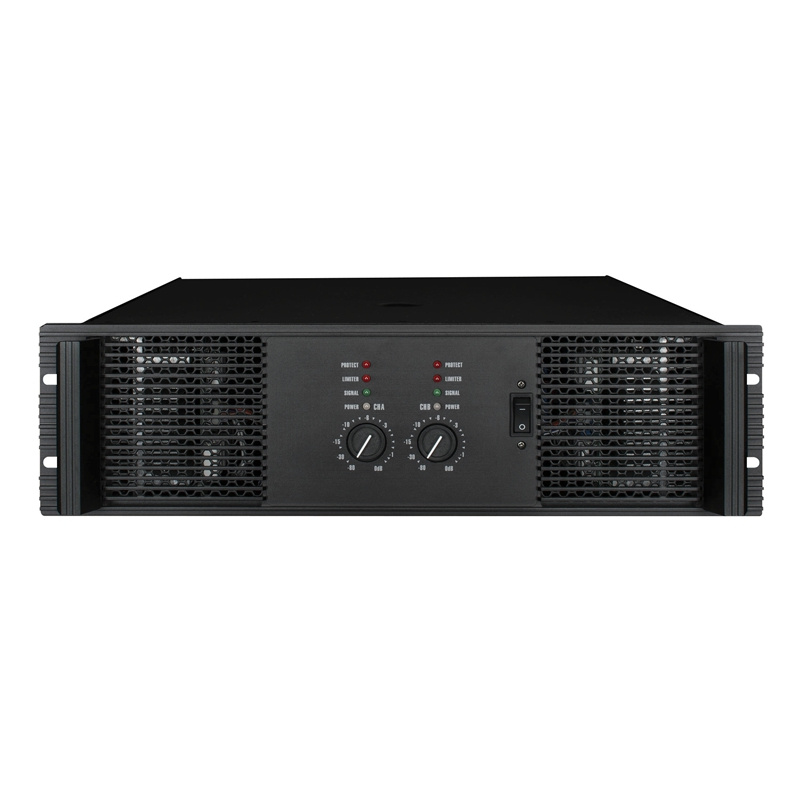

Suit for Driving Line Array Power Amplifier

Name: Suit for Driving Line Array Power Amplifier
Brand: China-Manufacturer-Directory.com
SKU: 776037315
Availability: InStock
Rating: 4.4 (41 reviews)

Supplier:	Leipasi Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	MT1100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Watt:	1100W
Transistor:	32 Pieces
Type:	Professional Amplifier
Usage:	Hi-Fi
Used For:	Professional
Tube Type:	Transistor Amplifier
Function:	Post Amplifier
Sound Channel:	2.1
Voltage:	AC 220V
Output Number:	2
Conductive Mode:	Class H

Product Description

Features
1.MT series power amplifier pursuit for faster reaction,higher damping factor,greater function and high level of protection
2.Excellent components and SMD technology
3.Can endure 2Ω stereo load and bridge 4Ω load ,suit for line array speaker system.

Model	MT800	MT1100	MT1300
Stereo power 8Ω	2x800W	2x1100W	2x1300W
Stereo power 4Ω	2x1300W	2x1800W	2x1950W
Stereo power 2Ω	2x1600W	2x2200W	2x2600W
8Ω BLT	2400W	3300W	3900W
4Ω BLT	3200W	4400W	5200W
Frequency Response	5-20K+/-0.5dB
THD+N	<0.05%@8Ω 1KHz 1/4Po
S/N Ratio	>92dB >95dB >95dB
Slew Ration	20V/u S
Damping Factor	>300
Crosstalk	>60dB@8Ω 1 KHz
Input Impendance	20KΩ(Balance)/10KΩ(Unbalance)
Input Sensitivity	0.775V/1.0V/1.4V
Protect	Overheat short circuit,DC,limit and-softstart,Output relay-zero Current Switch,Intellctual Clip limiter
Height
Gross Weight	41KG	42.5KG	43KG
Packing Dimensions	650x585x200mm

Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.

Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.

We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.

There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.

OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.

It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
