Product Specifications
| Prod Model: |
SUL181H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo, Shanghai, Other |
| Delivery Time: |
20-25 Days |
Product Description
Voltage AC24V-220V 50Hz DC24V-110V
Contact Timed SPOT Inst. SPOT
Operation On-delay with inst. Contact
Timing range 1S 2S 3S 6S 12S 30S 60S 2M 3M 5M 6M 12M 30M 60M 3H 6H 12H 24H
Voltage AC24V-220V 50Hz DC24V-110V
Contact H3Y-2, ST6P: Timed 2PDT H3Y-4, ST6P-4: Timed 4PDT
Operation H3Y-4, ST6P-2 Time-limit operation/self-restting
Timing range 0.5S 1S 5S 10S 30S 60S 120S 180S 10M 30M 60M 3H 12H 24H
Voltage AC24V-240V 5OHZ DC12V-110V
Contact H3BA-8: Timed 2PDT H3BA-8H: Timed SPDT, Inst. SPDT
Operation H3BA-8: On-delay H3BA-8H: On-delay with inst. Contact
Timing range 0.5S-100H
Voltage AC24V-240V 5OHZ DC12V-48V
Contact Timed 2PDT
Operation On-delay recycling work off-delay on/off-delay
Timing range 0.5S-100H
Voltage AC24V-220V 5OHZ DC24V-48V
Contact AH3-1: Timed SPDT AH3-2: Timed 2PDT AH3-3: Timed SPDT, Inst. SPDT
Operation AH3-1: Time-limit operation/self-resetting AH3-2: On-delay AH3-3: On-delay with inst. Contact
Timing range 1S 2S 3S 6S 12S 30S 60S 2M 3M 5M 6M 12M 30M 60M 3H 6H 12H 24H
Voltage AC24V-220V 5OHZ DC24V-110V
Contact AH2-Y1: Timed SPDT AH2-Y2: Timed 2PDT AH2-Y: Timed SPDT, inst. SPDT
Operation AH2-Y1: Time-limit operation/self-resetting AH2-Y2: On-delay AH2-Y: On-delay with inst. Contact
Timing range 1S 2S 3S 6S 12S 30S 60S 2M 3M 5M 6M 12M 30M 60M 3H 6H 12H 24H

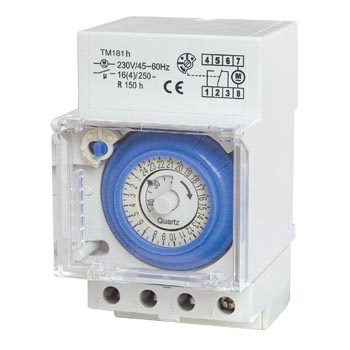

| 1 | Model No: SUL181H |
|
|
|
| 2 | Product name: 24 hours time switch |
|
|
|
| 3 | Operating Voltage: 24~250V AC, 50Hz/60Hz |
|
|
|
| 4 | Power Consumption: 0.5VA |
|
|
|
| 5 | Ambient Temperature: -10~+50º C |
|
|
|
| 6 | Accuracy: ≤ 2 s/day 25º C |
|
|
|
| 7 | Contact Capacity: AC 220V, 16A |
|
|
|
| 8 | Full Timing Range: 24h |
|
|
|
| 9 | Contact Resistance: ≤ 50mΩ |
|
|
|
| 10 | Insulation Resistance: ≥ 100MΩ |
|
|
|
| 11 | Coil Voltage: 110V, 230V AC |
|
|
|
| 12 | Operating Temperature: -40º C~+55 |
|
|
|
| 13 | Minimum Setting Unit: 30 minutes |
|
|
|
| 14 | Setup times: 30m/times 48times |
|
|
|
| 15 | Storage Battery(Working reserve): 150 hours |
|
|
|
| 16 | Life: | Electrical ≥ 10 5 Times |
|
| Mechanical ≥ 10 7 Times |
|
|
|
| 17 | Dimension: 90*54*65 mm |
|
|
|
| 18 | DIN rail Mounting |
