Foshan Suoer Electronic Industry Co., Ltd. >> Suoer DC 12V to AC 220V 3000W Pure Sine Wave Solar Power Inverter (FPC-3000A)

Suoer DC 12V to AC 220V 3000W Pure Sine Wave Solar Power Inverter (FPC-3000A)

Name: Suoer DC 12V to AC 220V 3000W Pure Sine Wave Solar Power Inverter (FPC-3000A)
Brand: china-manufacturer-directory.com
SKU: 748059575
Availability: InStock
Rating: 4.3 (53 reviews)

Supplier:	Foshan Suoer Electronic Industry Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	FPC-3000A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Qty:	4 PCS/CTN
Phase:	Single
Type:	DC/AC Inverters
Output Power:	3000W
Certification:	CTA
Brand:	Suoer

Product Description

Suoer DC 12V to AC 220V 3000W Pure Sine Wave Solar Power Inverter (FPC-3000A)

Features

1. 5V 1A USB charging interface.

2. Pure sine waveform output.

3. Applicable for sensitive loads ( suitable for Air conditioner).

4. High conversion efficiency, smart soft start function.

5. Multiple safe protections.

6. Input and output are completely independent.

7. Smart, light,and portable,designed for home use.

8. Universal socket, suitable for all kinds of plugs.

9. High-procision voltage stability technology.

10. Aerospace-grade silence technology.

11. Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption.

12. Gained CE,CTA,ISO,RoSH certificates guaranteed.

13. 26 years' experience in home power supply industry.

14. 100% pure sine wave output waveform: designed for sensitive loads(resistive load).

15. With the technology of CPU centralized control and SMD inside.

16. True sine wave output (Total Harmonic Distortion(THD) < 3%)

Protections

To ensure the safety of the power inverter, 5 safe protections are designed to ensure the safety of the power inverter,including overload protection, overvoltage protection, low voltage protection, high temperature protection and output short circuit protection.

Applications

This solar power inverter is extraordinarily designed for home use,which can convert DC 12V/24V of portable power supply to AC 110V/220V/230V and it works for almost all the household electrical resistive appliances such as MP3/MP4 player, cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker, digital camera, digital video, CD/DVD player, XBOX/PS4 game player, ordinary electric lamps, bulb, fluoresent light, rice cooker, electric iron, desktop computer, graphoscope, fax machines, printers, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain, hair dryer and so on. (Note: Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine, microwave oven, induction cooker, electric drill, compressor, air conditioner, mercury lamp, sodium lamp and so on)

Technical Parameters

Model	FPC-3000A	FPC-3000B	FPC-3000F
Peak power	6000W(1S)
Rated power	3000W
Output waveform	Pure sine wave
Output voltage	220V/230±5V
Harmonic distortion	<3%(Impedance load)
Output frequency	50Hz(or 60Hz)
Standby current	<0.9A	<0.7A	<0.5A
Conversion efficiency	Maximum 94%
Rated voltage	12V	24V	48V
Maximum input current	300A	150A	75A
Input voltage range	9V-16V	18V-32V	38V-62V
Under voltage protection	9.5V±0.5V	19.9V±0.2V	40.2V±0.2V
Under voltage tip	10.2V±0.5V	20.9V±0.2V	42.2V±0.2V
Under pressure recovery	12.5V±0.5V	24.7V±0.2V	48.2V±0.2V
Over voltage protection	15V±0.5V	30.2V±0.2V	60.4V±0.2V
Over voltage recovery	14.8V±0.5V	29.8V±0.2V	60.1V±0.2V
High temperature protection	Buzzer/LED warning
Output short circuit protection	Buzzer/LED warning

Output overload	Smart control
Load power factor	0.98
USB Output	5V 1A
Battery reverse protection	No
Cooling way	Temperature control
Working temperature	-20~60 degrees celsius
Storage temperature	-20~80 degrees celsius
Working humidity	10~90%(No condensation)
SIZE/CTN	5347.531.5CM
G.W./CTN	28.28KG

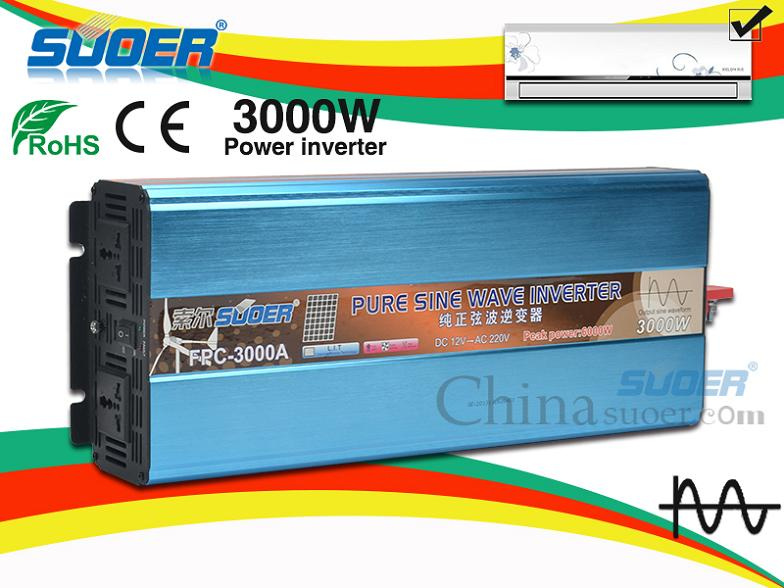

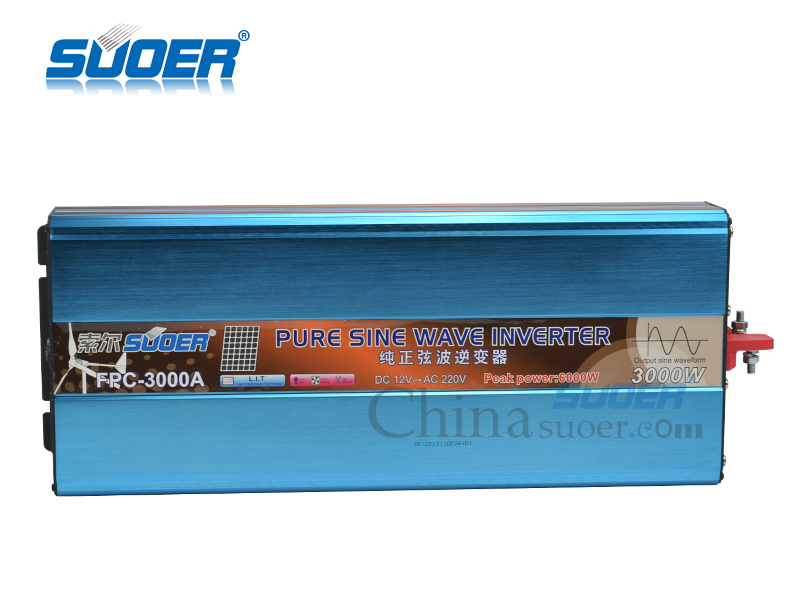

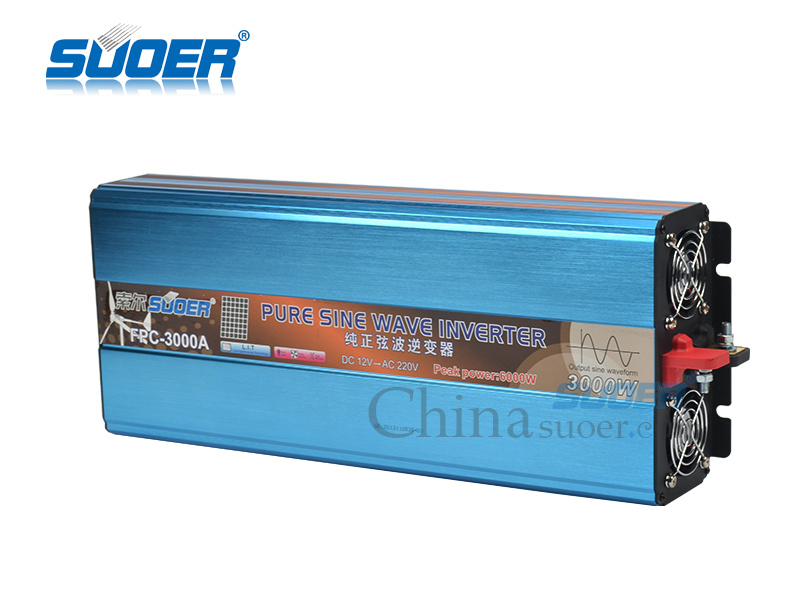

Product Photos

FAQs

1.May I take some samples to test before placing the order ?
Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.

2. How long can you offer the samples?
Answer:1~5 days after the deposit payment is confirmed.

3.What's your payment terms for sample?
Answer:You can pay via T/T

4.What's the price terms can you offer for us?

Answer:We can accept EXW,FOB,CIF and so on.

5. Do you have any certifications for your products?
Answer:We have ISO9001:2000,CE,RoHS,certifications for all of our products.

6.Where is your main market for your products?
Answer:Most of our Suoer brand products are exported to Southeast Asia,Africa and Mid East.

Foshan Suoer Electronic Industry Co., Ltd., located in Dali, Nanhai, Foshan City, Guangdong Province, which is a comprehensive joint-stock corporation integrating R&D, production and sales as one of the high-tech enterprises. Our company has established an industrial park covering a land area of 20 thousand square meters, with standard workshop, advanced production equipment, a standard R&D building and world-leading facilities.

Suoer brand is our registered trademark for our products. Our products mainly include Solar power system, solar power inverter, battery charger, remote control, soldering iron and LCD/LED wall bracket, LCD monitors and laser head components, etc. Our company has been specialized in the manufacture and export of home power supply for more than 10 years. Adhere to the integrity management, sustainable development, and create a win-win service purposes with our customers as our ultimate development philosophy.

Our production base has already passed ISO9001: 2000 quality system certification, CE certification and RoHS certification. Modern factories, outstanding management team and advanced product technologt become the best guarantees for our product quality. Our products are sold in our own country, Europe, the United States, the Middle East, Southeast Asia and other countries and regions with unique and innovative designs, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R&D and production experience, our company has become one of the famous power inverter manufacturer in China.
