| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 100/Piece |
| Pay Type: | T/T |
Features
1.Automatic identification of 12V/24V battery
2.Max charging current 8A
3.Three phase charging mode
4.Reverse connecting protection,overcharge protection,short circuit protection
5.Ajustable charging current:2A,4A,7A
6.No sparks when connecting the battery
7.OEM & ODM are acceptable.
Directions for use
1. Manual operation / automatic charging options (by volume selection key): OU=2A Slow charge, OU=4A conventional charge, OU=6.9A Fast charge, automatic charge.
2. Repair charge: press repair to display RE=ON means open repair, indicator light indicates repair start charging, RE= OF means closed repair (repair time is 90 minutes).
3. Capacity selection / repair switch: short pressing for electric current selection (OU = 1A, OU = 2A , OU = 4A, OU = 4A, OU = 6.9A, OU = AU Fully-automatic charge) ; Press 3 seconds for opening the repair function (display RE= ON) ; Repair indicator light is often said to start repairing charge, press 3 seconds again for closing the repair function (display RE= OF) ; When the charger is in the mode of repairing, short press can also turn to repair electric current, repair time is 90 minutes.
Specifications
Three-phase charging mode
Constant current mode: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.
Technical Data
Model | A02-1224B |
Charging current | 2A, 4A, 6.9A |
Apply to the battery voltage (DC) | 12V / 24V (automatic recognition) |
Rated input voltage (AC) | 170V~250V |
Rated frequency | 50Hz |
Rated efficiency | ≥87% |
Mechanical shock and vibration resistance level | SAEJ1378 |
Temperature range | -40~+90ºC |
Language | Customizable |

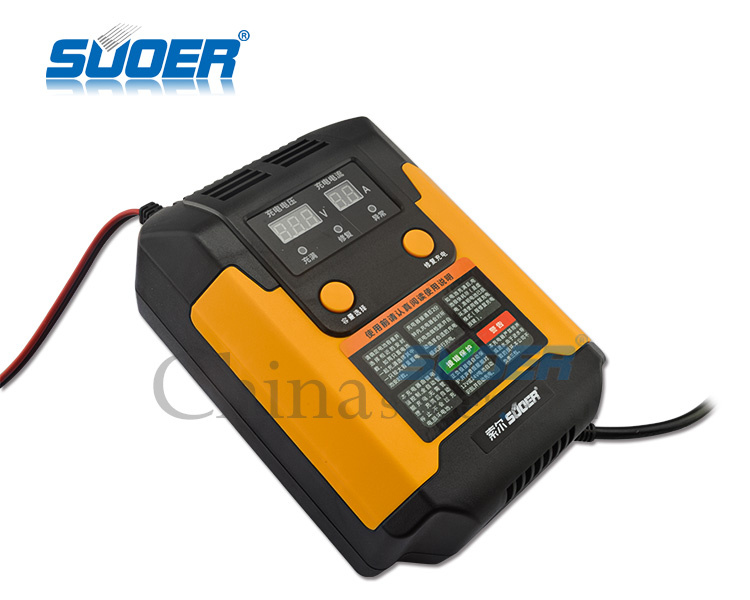

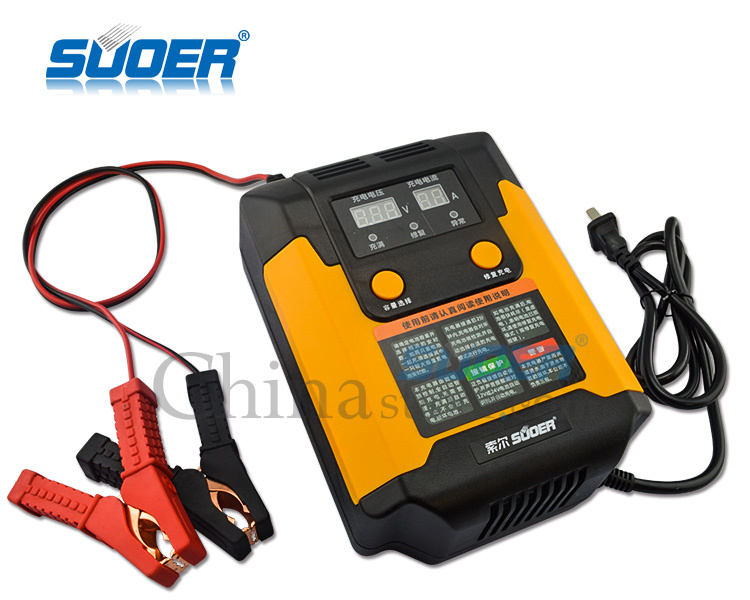

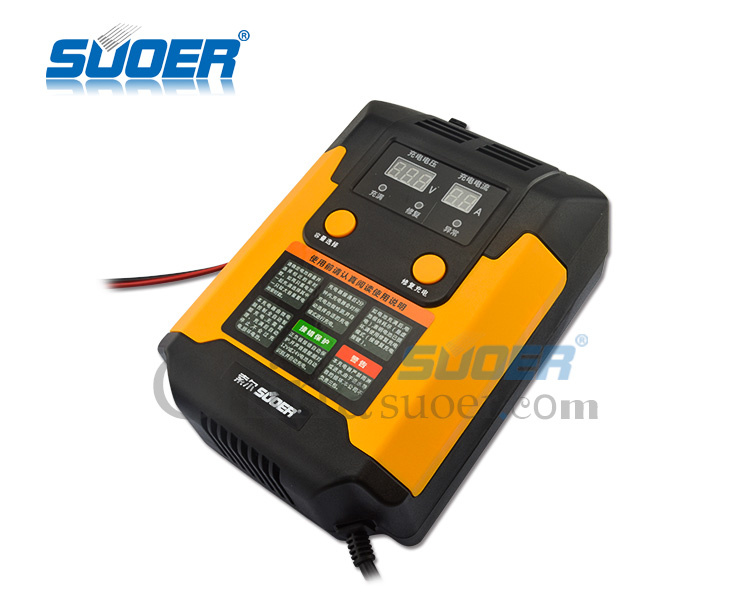

Product Photos
FAQs
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer: You can pay via T/T.
4. What's the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
6. Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
SNS:
Facebook Fan Page:https://www.facebook.com/SuoerGroup
Facebook Shop:https://www.facebook.com/SuoerGroup/shop/
YouTube Channel:https://www.youtube.com/c/SuoerElectronics
Vimeo:https://vimeo.com/suoerelectronics/
Twitter:https://twitter.com/SuoerGroup
Google+:https://plus.google.com/+SuoerElectronics
Instagram:https://www.instagram.com/suoer_electronics/
| Prod Model: | A02-1224 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Lead-Acid Battery Charger |
| Charging Type: | Electric Charger |
| Principle: | Single-Shock Charger |
