Product Specifications
| Prod Model: |
ST-G1205 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Charger Controller |
| Rated Voltage: |
12V |
Product Description

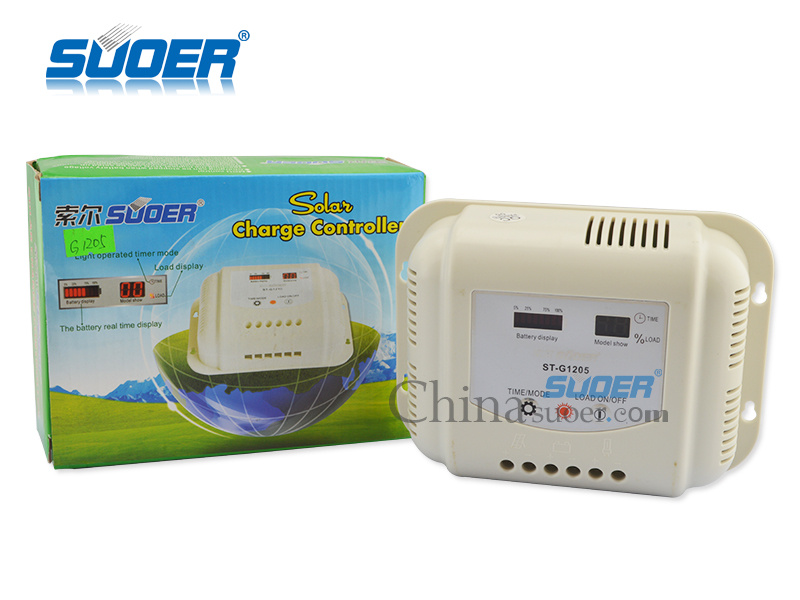

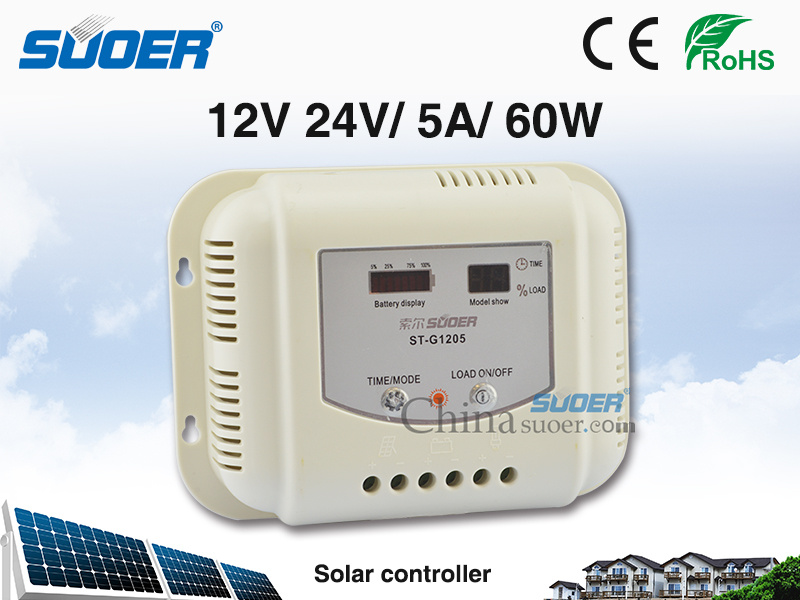

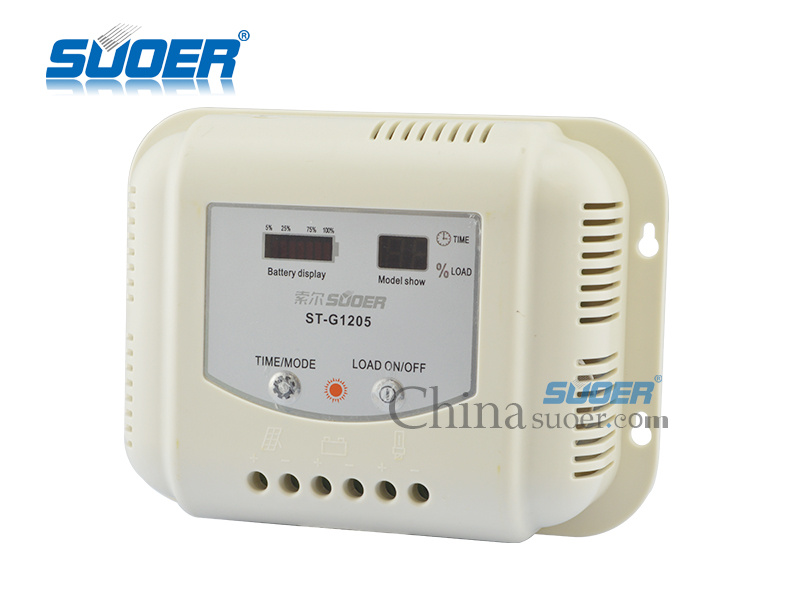

Suoer Portable 5A 12V Solar Charge Controller (ST-G1205)
Features
Convenient and efficient,high-grade and economic solar controller
1. MCU control.
2. Charging can be stopped when battery voltage,reaching the highest,HVD can be set up.
3. Discharging can be stopped when battery voltage reaching the lowest,LVD can be set up.
4. Load turns on work,LVR can be set up.
5. Overloading protection,Short circuit protection,Reverse discharge protection,Reverse polarity connection protection,Thunder and lighting protection,Overcharge protection,Overdischarge protection.
ProtectionsThis PWM Solar controller has Six protections, which are overloading protection, overdischarge protection, short circuit protection, reverse polarity connection protection, thunder and lighting protection and reverse discharge protection.Technical Parameters
| Model | ST-G1205 | ST-G1210 | ST-G1215 | ST-G1220 | ST-G1230 |
| Rated charging power | 60W | 120W | 180W | 240W | 360W |
| Charging current rating | 5A | 10A | 15A | 20A | 30A |
| Battery voltage | 12V/24V |
| Charging voltage | 13.6V/27.2V |
| Float charging voltage | 13.8V/27.6V |
| Discharge cut-off voltage | 10.5V/21V |
| Battery over-voltage protection | 17V/34V |
| Output protection | >1.25 times rated current 60s protection |
| >1.5 times rated current 5s protection |
| >3 times rated current straightway protection |
| >short circuit immediately protection |
| Discharge cut-off voltage | 10mA |
| Standby loss | 0.2mA |
| Charging circuit pressure drop | ≤0.26V |
| Discharge circuit voltage drop | ≤0.15V |
| Charging control mode | PWM pulse width modulation |
| Size(mm) | 167x124x50 |
Application

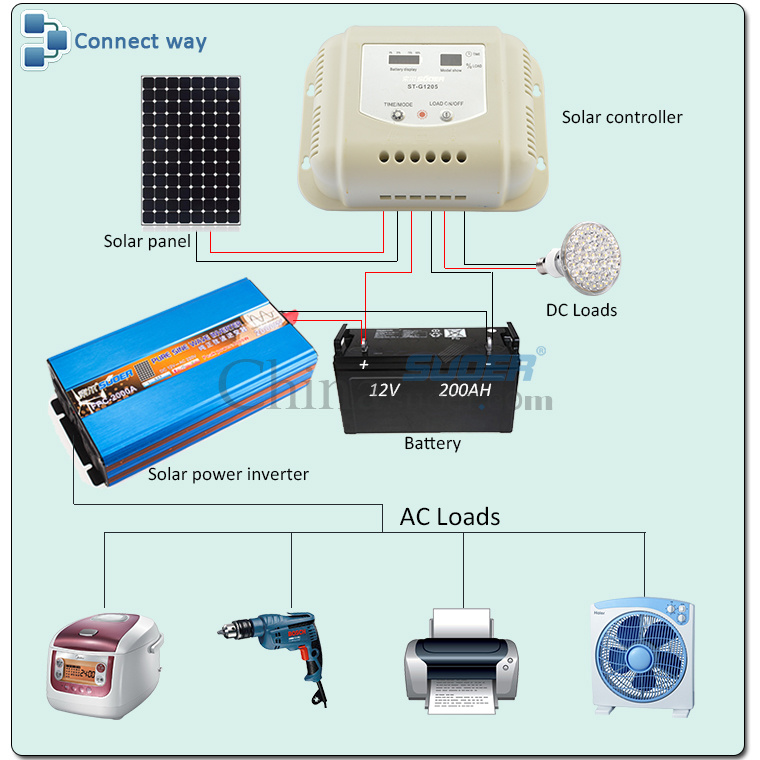

This solar power system is designed for home use,which is workable for almost all household electrical appliances such as MP3 player, MP4 player, cell phone, laptop, emergency light, electric fan, electric blanket, electric shaver, digital camera, digital video, TV, CD, DVD, game machine, electric light etc.
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer: You can pay via T/T.
4. What's the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
6. Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
Foshan Suoer Electronic Industry Co., Ltd., located in Dali, Nanhai, Foshan City, Guangdong Province, which is a comprehensive joint-stock corporation integrating R&D, production and sales as one of the high-tech enterprises. Our company has established an industrial park covering a land area of 20 thousand square meters, with standard workshop, advanced production equipment, a standard R&D building and world-leading facilities.
Suoer brand is our registered trademark for our products. Our products mainly include Solar power system, solar power inverter, battery charger, remote control, soldering iron and LCD/LED wall bracket, LCD monitors and laser head components, etc. Our company has been specialized in the manufacture and export of home power supply for more than 10 years. Adhere to the integrity management, sustainable development, and create a win-win service purposes with our customers as our ultimate development philosophy.
Our production base has already passed ISO9001: 2000 quality system certification, CE certification and RoHS certification. Modern factories, outstanding management team and advanced product technologt become the best guarantees for our product quality. Our products are sold in our own country, Europe, the United States, the Middle East, Southeast Asia and other countries and regions with unique and innovative designs, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R&D and production experience, our company has become one of the famous power inverter manufacturer in China.
