Supanchor R32n Self Drilling Anchor Bolt Sda Bolt in China

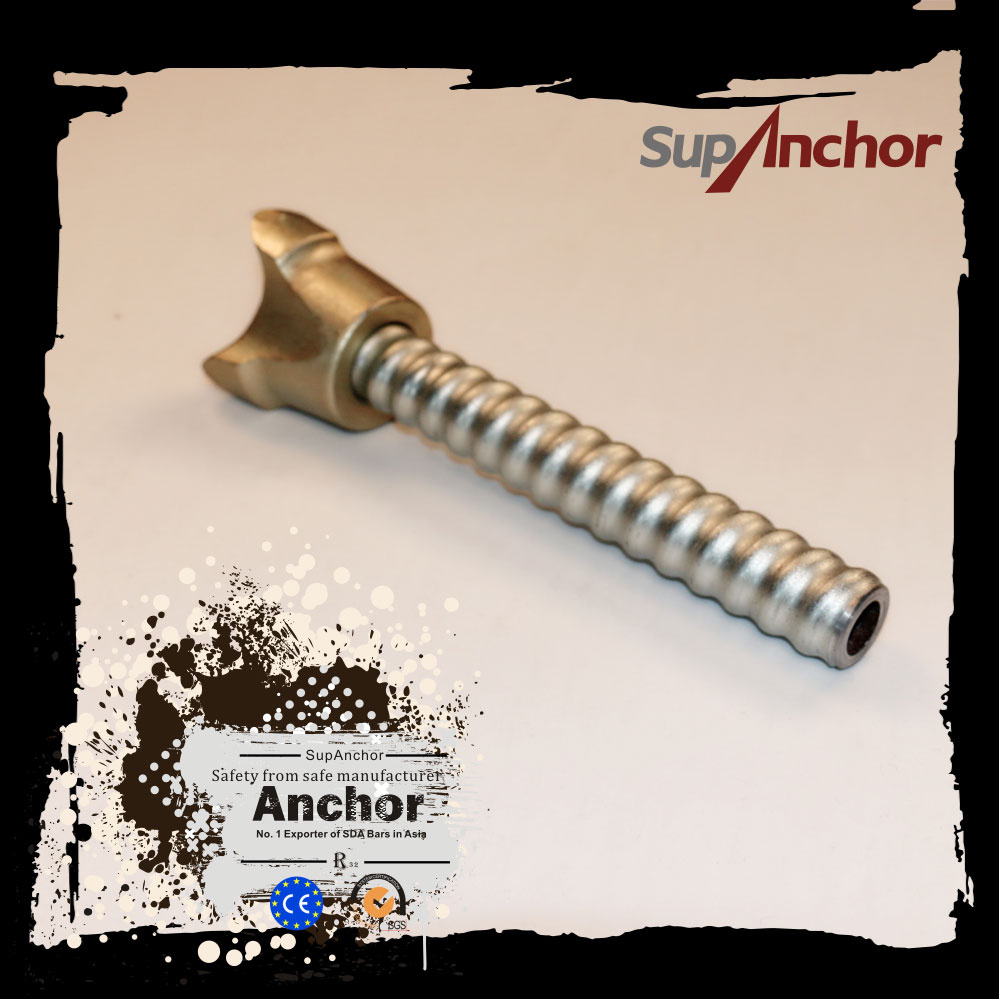

Name: Supanchor R32n Self Drilling Anchor Bolt Sda Bolt in China
Brand: china-manufacturer-directory.com
SKU: 767796075
Availability: InStock
Rating: 4.5 (128 reviews)

Supplier:	Nantong SupAnchor Geotechnical Systems Co., Ltd.
Price:	US $ 3.5/Meter
Min Order:	1/Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	R32N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name Of A Part:	Self Drilling Hollow Grouting Bolt R32n
Outside Diameter Mm:	32
Internal Diameter Mm:	18.5-21
Yield Load(Kn):	230-280
Ultimate Load(Kn):	280-360
Weight(Kg/M):	3.4-3.5
Thread Type:	T & R, Left or Right
Length(M):	1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 5.5m
Mining Object:	Coal Machinery
Material:	High Strength Steel
Type:	Round Head
Connection:	Common Bolt
Head Style:	Round
Standard:	En10083-1
Grade:	10.9
Finish:	Black
Application:	Tunneling, Mining, Deep Foundtion Rock Support

Product Description

SupAnchor Anchor Bar

SupAnchor is a professional manufacturer and No. 1 Exporter of self drilling anchors in Asia.

SupAnchor has been established for 20 years, specialized in exporting for 15 years. Our products have been exported to over 50 countries and have helped over 100 projects on safety installation worldwide.
Choose SupAnchor, choose experience!

Feartures
SupAnchor® self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

Technical Data

Specification	R25	R32N	R32 /18.5	R32S	R38N	R38/19	R51L	R51N	T76N	T76S	30 /11	30 /14	30 /16	40 /16	40 /16S	40 /20	52 /26
Outside Diameter ( mm )	25	32	32	32	38	38	51	51	76	76	30	30	30	40	40	40	52
Internal Diameter ( mm )	14	20	18.5	17	21	19	38	36	49	46	11	14	16	18	16	20	26
Yield load ( kN )	150	230	230	280	400	400	450	630	1200	1500	260	220	180	525	525	430	730
Ultimate load ( kN)	200	280	280	360	500	500	550	800	1600	1900	320	260	220	660	660	539	929
Weight ( kg/m )	2.3	2.9	3.4	3.5	4.8	5.5	6.2	7.8	16.0	19.0	3.1	2.8	2.70	6.3	7.0	5.3	9.5
Thread type	ISO 10208						ISO 1720		MAI Factory standard		TITAN Factory standard
Type of steel	EN 10083-1
Thread Left /right hand	Left or Right
Length ( m )	1 m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m

Nantong SupAnchor Geotechnical Systems Co., Ltd. Which is a joint venture cooperated by Brazil New Asia Group and Chengdu FUREN MINING Corporation in 1994, is specialized in producing and selling rock drill tools targeted for mines, power & water stations, and railway constructing projects.

Supanchor is located in Chengdu, Sichuan Province, the center of Western Development in China, and also a city with abundant mineral resources. It contributes a lot helping us to achieve a minimum cost and low price consequently together with heaper labor force compared with developed countries, and even many devolving ones. Employees are considered as the heart of the enterprise in supanchor A comprehensive Human Resources System has been implemented during many years' Operation.

A highly spirited team that is organized by a group of customers and technology oriented management & specialists have been therefore formed to be a guarantee for quality. Main over past years, supanchor has been focusing on respecting every contract, by providing our customers products in strong accordance with contract in delivery date. Business relationship has been successfully established with customers in Brazil, Australia, England, Germany, Greece, Hong Kong, etc.

"No best, but only better". By it, Supanchor staff is striving for serving customers with better quality and more favorable price on an ongoing basis.
