Product Specifications
Prod Model: |
YLS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Model: |
Rhfc |
Capacity: |
0-25000bottles/Hour |
Machine Brand: |
Yls |
Condition: |
New |
Composition: |
Filling Machine |
Processing Material: |
Liquids |
Process: |
Fill and Cap |
Product Description
Description:
Sphere of applied product: Juice, tea beverage, functional beverage and so on.
Suitable for: PET bottles with all volumes and shapes
Filling system: Hot filling
Production capacity: 2000BPH— 24000BPH

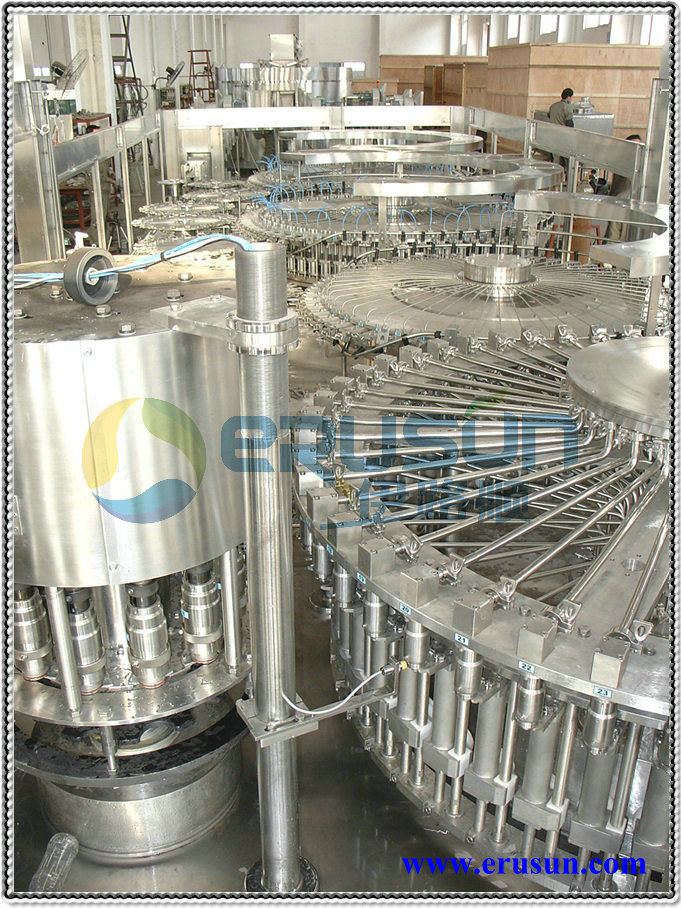

This hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
Technical features:
Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
Sanitary filling head system is of umbrella structure, high filling speed.
Perfect filling temperature control system.
Return tank system has the function of supplying the material automatically.
Perfect CIP system
Mode l | RHFC 16 / 12 / 6 | RHFC 18 / 18 / 6 | RHFC 24 / 24 / 8 | RHFC3 2 / 32 / 10 |
Rinsing Head | 16 | 18 | 24 | 32 |
Filling Head | 12 | 18 | 24 | 32 |
Capping Head | 6 | 6 | 8 | 10 |
Production capacity ( 5 00ml) (B/H) | 2 000 | 5 000 | 8 000 | 1 2 000 |
Filling accuracy | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
Filling the back flow | ≤8% | ≤8% | ≤8% | ≤8% |
Cap shape | Plastic cap | Plastic cap | Plastic cap | Plastic cap |
Rinsing water pressure (Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
R insing water consumption ( ton/ h) | 1t/hour | 1.2t/hour | 1.2t/hour | 2t/hour |
Air pressure (Mpa) | 0. 7 | 0. 7 | 0. 7 | 0. 7 |
Air consumption (m3/min) | 0.25M3/min | 0.8M3/min | 0.8M3/min | 0.8M3/min |
Motor power ( KW ) | 3 | 3.5 | 4.5 | 6 |
Weight ( KG ) | 3 000 | 4 000 | 50 00 | 60 00 |
P acking Size (L*W*H) (mm) | 2 200 × 180 0 × 2300 | 2 3 00 × 2000 × 2300 | 3000 × 2200 × 2800 | 4000 × 2600 × 2800 |
PET bottle size (mm) | Bottle diameter φ50-φ 100mm; Height 150-320 mm |
Mode l | RHFC 40 / 40 /12 | RHFC 50 / 50 / 15 | RHFC 60 / 60 / 15 | RHFC72/72/18 |
Rinsing Head | 40 | 50 | 60 | 72 |
Filling Head | 40 | 50 | 60 | 72 |
Capping Head | 1 2 | 15 | 15 | 18 |
Production capacity ( 5 00ml) (B/H) | 1 5 000 | 18 000 | 2 1 000 | 25000 |
Filling accuracy | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
Filling the back flow | ≤8% | ≤8% | ≤8% | ≤8% |
Cap shape | Plastic cap | Plastic cap | Plastic cap | Plastic cap |
Rinsing water pressure (Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
R insing water consumption ( ton/ h) | 2 t/hour | 3t/hour | 4 t/hour | 5t/hour |
Air pressure (Mpa) | 0. 7 | 0. 7 | 0. 7 | 0. 7 |
Air consumption (m3/min) | 0.8M3/min | 1M3/min | 1 M3/min | 1 .2 M3/min |
Motor power ( KW ) | 6.5 | 8 | 12 | 15 |
Weight ( KG ) | 70 00 | 85 00 | 9500 | 1 1 000 |
P acking Size (L*W*H) (mm) | 4700 × 2950 × 2800 | 5100 × 4800 × 3000 | 6200 × 4950 × 3000 | 70 00 ×55 00 ×30 00 |
PET bottle size (mm) | Bottle diameter φ50-φ 100mm; Height 150-320 mm |
