Product Specifications
| Prod Model: |
FC-F388 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Fortune/Zhuoyu |
| Model Number: |
FC-F388 |
| Operation: |
Computerized |
| Head Number: |
88 |
| Needle Number: |
3 |
| Color: |
Green |
| Computer: |
Dahao 328 Computer |
| Voltage: |
220V |
| Payment Term: |
T/T D/P L/C |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |

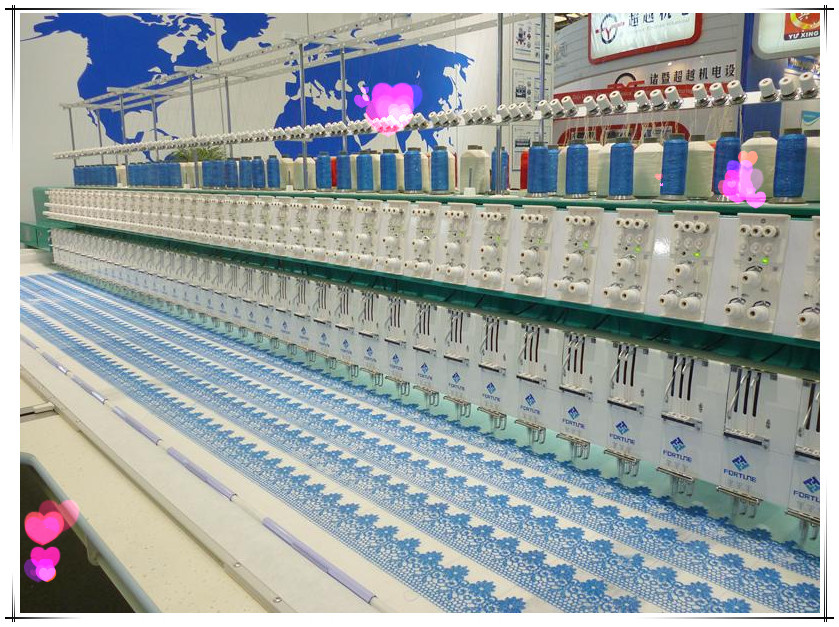

Product Description
TECHNOLOGY PARAMETER:
1. Model: FC-F388
2. Heads: 88
3. Colors: 3
4. Computer: Dahao 328 computer
5. Motor: Dahao servo motor
6. Design software: Tajima or Barudan
CONTROLLER:
1. Adopt Ultra-modern computerized control system with color LCD Network management function, with USB floppy driver, and the under thread detecting system, with separate controller in each machine heads.
2. Drive motor: 3 phase subsection drive.
3. Main motor: Dahao servo motor, 110 stepper.
4. Memory size 2000000 stitches.
5. Automatic trimming, automatic color changing, automatic thread breacking detecting.
6. A variety of optional devices can require, like sequin device, cording head, chenille etc.
MECHANICAL:
1. The controlled computer is Dahao, with USB port.
2. Machine body: adopt molding square girder, after the high temperature& heat treatment to finalize the design.
3. Lowest noise reduction developments helps create a quiet and pleasant working environment for operators.
4. All information can be displayed on the LCD according to the users' requirements
5. Wooden table: Adopt log basic board, and procedures With high temperature and high pressure.
6. Drive: adopts Improved liner guide rail with imported Italy belt.
7. Bearing: Original Japanese bearing.
8. Original Japanese rotary hooks and bobbin cases.
9. Thread Hooking: adopt motor control the concentrate catching.
10. Thread cutting system: the cutter adopting imported Taiwan materials.
Computer include
|
Different computers with different functions in different prices for your choice |
Daohao computer |
322 |
Without thread trimmer |
|
328(basic) |
Thread trimmer and sequin |
|
366 |
Thread trimmer and sequin and sew bag |
|
C18 |
Thread trimmer and sequin and sew bag |
|
C19 |
Sew towel and above all |
|
C88 |
10 inch (touch) above all |
|
C98 |
12 inch (touch) above all |
Every kind of flat embroidery machine can be made by your requirements
|
9 needles Flat embroidery machine model for your reference |
|
model |
needles |
heads |
specifications |
long |
|
FC-F901 |
9 |
1 |
400*450 |
1.2 |
|
FC-F902 |
9 |
2 |
400*450 |
1.6 |
|
FC-F901 |
9 |
1 |
680*680 |
2.5 |
|
FC-F904 |
9 |
4 |
400*450 |
2.6 |
|
FC-F906 |
9 |
6 |
400*450 |
3.4 |
|
FC-F908 |
9 |
8 |
400*450 |
4.2 |
|
FC-F910 |
9 |
10 |
400*450 |
5.1 |
|
FC-F912 |
9 |
12 |
300*330 |
4.6 |
|
FC-F912 |
9 |
12 |
400*410 |
5.9 |
|
FC-F915 |
9 |
15 |
300*330 |
5.7 |
|
FC-F918 |
9 |
18 |
300*330 |
6.6 |
|
FC-F920 |
9 |
20 |
300*330 |
7.2 |
Zhejiang Fangcheng Electromechanic Co., Ltd. Specializes in producing computerized embroidery machines and knitting machine. With an advantageous geographical position and convenient traffic conditions, it is situated in Zhuji City-the hometown of ancient beauty Xishi.
It has abundant and strong technical strength and complete equipments, the major products are FORTUNE multi-head computerized embroidery machines series, which are regarded as high technology products reaching the advanced global standard of the early 2000s, and have pased ISO9001: 2000 interational quality system.
Our company sticks to an opeartional idea of attaching greatest importance to quality and customers, tries to free customers from all worries with a perfect after-sale service system. It also produces computerized embroidery machines of different types to meet customers' demand, The products are of high quality and high efficiencyl. It can accomplish various complicated and beautifully designed embroidery on different materials, making itself ideal embroidery processing equipment completely and automatically controlled by computers. This kind of machine is widely used in embroidery, sick-reeling, fashion design, textiles, leather, and shoes and hat production industries.
We have sold our knitting machine to more than 20 provinecs in China and several countries abroad with good reputation such as HongKong, Bangladesh, India, Vietnam, Cambodia, Syria, Turkey, Russia, Romania, Jordan, Mexico, Rrgentina. We have obtained more than 30 patents and have been the national high-tech egerprise and the main drafter of the national standard of computerized flat kntting machine by our absolutely high position in our field.
An unique owner of Chinese famous brand in computerized flat machine industry in China!
FORTUNE computerized embroideyr machine and knitting machine offers you our sincerity by means of high quality and perfect after-sale service. May Zhuoyu accompany your great success forever! We warmly welcome the visits and negotiation of friends from all over the world.
