Product Specifications
| Prod Model: |
corner raduis end mills |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grain Size: |
0.6um |
| Helix Angle: |
35 Degree |
| HRC: |
55 |
| Bending Strength: |
>=4000 |
| Coating: |
Altin |
| Flute: |
4f |
| Samples: |
Available |
| OEM: |
Accept |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

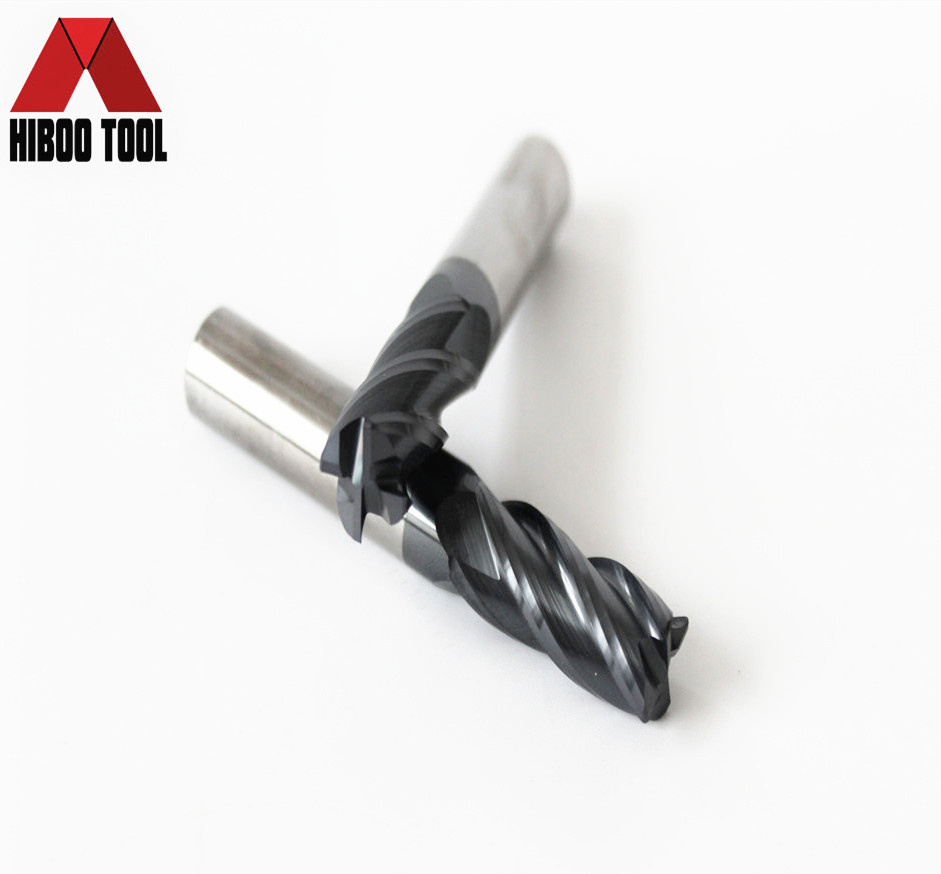

Tungsten Carbide CNC Long Corner Radius End Mill
1. HRC55 carbide rod:
| HRC55 |
| YG10.2 &WF25(Taiwan) |
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2 |
2. Made by world latest 5-AXIS CNC tools grinder, promise the quality and precision of cutter.
3. Super AlTiN Coating reduce the coeffiction of friction, and improve the tools life much.
| AlTiN | TiAIN | TiSiN | Nano |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement.
6. Work Piece: Suitable for processing steel, stainless steel, nickel alloy, Titanium alloy, cast iron,
Plastic and other materials' hardness below HRC55
| Order No | fiult diameter | flute length | shank diameter | R Corner | Overall length |
| 3χ 8χ 3Dχ R0.3χ 75Lχ 2F | 3 | 8 | 3 | R0.3 | 75 |
| 3χ 8χ 3Dχ R0.5χ 75Lχ 2F | 3 | 8 | 3 | R0.5 | 75 |
| 3χ 8χ 4Dχ R0.5χ 75Lχ 2F | 3 | 8 | 4 | R0.5 | 75 |
| 3χ 8χ 4Dχ R1.0χ 75Lχ 2F | 3 | 8 | 4 | R1.0 | 75 |
| 4χ 10× 4Dχ R0.5χ 75Lχ 2F | 4 | 10 | 4 | R0.5 | 75 |
| 4χ 10× 4Dχ R1.0χ 75Lχ 2F | 4 | 10 | 4 | R1.0 | 75 |
| 4χ 10× 6Dχ R0.5χ 75Lχ 2F | 4 | 10 | 6 | R0.5 | 75 |
| 4χ 10× 6Dχ R1.0χ 75Lχ 2F | 4 | 10 | 6 | R1.0 | 75 |
| 6χ 15χ 6Dχ R0.5χ 75L× 2F | 6 | 15 | 6 | R0.5 | 75 |
| 6χ 15χ 6Dχ R1.0χ 75L× 2F | 6 | 15 | 6 | R1.0 | 75 |
| 8× 20χ 8D× R0.5χ 100L× 2F | 8 | 20 | 8 | R0.5 | 100 |
| 8× 20χ 8D× R1.0χ 100L× 2F | 8 | 20 | 8 | R1.0 | 100 |
| 8× 20χ 8D× R1.5χ 100L× 2F | 8 | 20 | 8 | R1.5 | 100 |
| 10× 25χ 10Dχ R0.5× 100Lχ 2F | 10 | 25 | 10 | R0.5 | 100 |
| 10× 25χ 10Dχ R1.0× 100Lχ 2F | 10 | 25 | 10 | R1.0 | 100 |
| 10× 25χ 10Dχ R1.5× 100Lχ 2F | 10 | 25 | 10 | R1.5 | 100 |
| 10× 25χ 10Dχ R2.0× 100Lχ 2F | 10 | 25 | 10 | R2.0 | 100 |
| 12χ 30× 13D× R0.5× 100Lχ 2F | 12 | 30 | 13 | R0.5 | 100 |
| 12χ 30× 13D× R0.5× 100Lχ 2F | 12 | 30 | 13 | R1.0 | 100 |
| 12χ 30× 13D× R0.5× 100Lχ 2F | 12 | 30 | 13 | R1.5 | 100 |
| 12χ 30× 13D× R0.5× 100Lχ 2F | 12 | 30 | 13 | R2.0 | 100 |
Hiboo Shipping and delivery
For samples , we dispatch your tools in 7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
Why Choose Hiboo Tools
several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 20000products are available
For your suggestions or complaints,We will handle them Soonest
We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.
Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.
Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.
We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
