Product Specifications
| Prod Model: |
M2307ADT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
7" |
| Resolution: |
800*480 |
| Connection: |
4 Wires |
| Maximum Length Of Line Connection: |
to 100 |
| Video Channels Quantity: |
2 CCTV + 2 Doorbell |
| Power: |
DC15V/1A (7W/1W) |
| Key Type: |
Touch Keys |
| Dimension: |
185*127*17mm |
| Warranty: |
2 Years |
| Certificate: |
CE & RoHS |
| Wireless: |
Wired |
| Type: |
Intercom Doorbell |
| Style: |
Many-to-One |
| Power Source: |
Plug |
Product Description

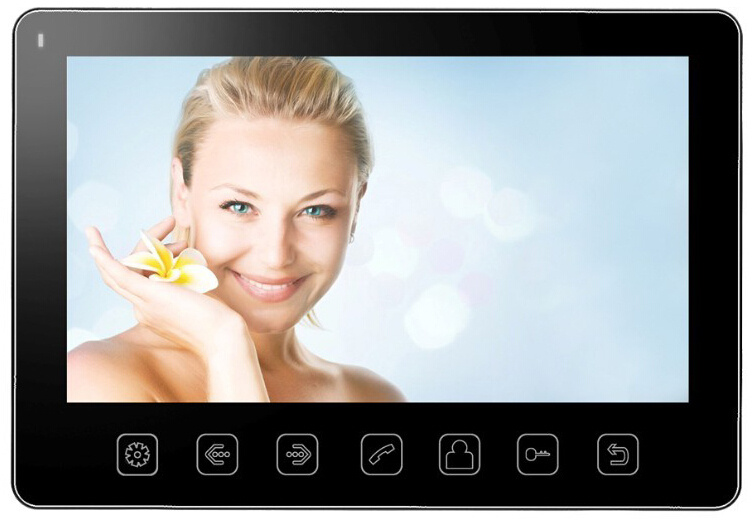

Super slim 7" basic video door phone intercom
Super slim, Basic function, Touch Keys model, with Lock control, voice monitor, intercom transfer/call/broadcast...Functions
Feature:
1. Lock control
2. Monitor listening
3. Support call transfer
4. Broadcast function
Detail description:
Basic function
1. Intercom function: See the image of the visitors and talk with them through the Video Door Answering Systems;
2. Door monitoring function: You can see what going on in front of the doorbell or CCTV camera on the monitor at any time through the Door monitoring system;
3. Lock control: Unlock the door through the intercom door security system.
4. Optional volume adjustment: According to residential needs, the chime volume and talking volume can be adjusted; Appropriate color, contrast and brightness may be adjusted to get better displaying;
5. Don't disturb choice: The best video door phone can set No-Disturb state if you don't want to be disturbed by visual doorbell ring.
Expand function
1. The 4 wire villa intercom system supports visitor-call transfer between monitors and make internal call among intercoms;
2. The smart home system supports indoor monitor listening function. It can be active if you have no less than 2 indoor monitors. Indoor units can choose the monitored number and the listening time is 8 hours;
Specification:
L Display screen: 7 inch Digital LCD
L Resolution: 800× 480
L Connection/Effective length: 4 wires/100m
L Video channels quantity: 2 door bells +2 CCTV
L Additional monitors quantity: Up to 3
L Key type: Touch keys
L Dimension: 185(W)× 127(H)× 17(D)mm
Support Solutions:
L Solution 1: 2 doorbells + 4 monitors + 2 CCTV cameras
L Solution 2: 1 doorbell + 2 monitors + 3 CCTV cameras
|
No. |
Content |
Details |
|
1 |
LCD |
7" color digital LCD |
|
2 |
Resolution |
800 x480 |
|
3 |
Intercom |
Hands free |
|
4 |
Wire connection |
4 wires (video, power, ground, audio) /CAT5-E (apartment system) |
|
5 |
Audio |
300mVp-p (1KHz,300Ω) |
|
6 |
Audio distortion |
≤3% |
|
7 |
Frequency response |
400-3.5K |
|
8 |
Intercom distance |
60m(RVV4x0.5)100m(RVV3*0.5+SYV75-3) |
|
9 |
video |
1Vp-p 75Ω(input)(NTSC,PAL auto) |
|
10 |
Keys |
Touch Keys |
|
11 |
Support outdoor camera |
2 |
|
12 |
Support CCTV |
2 |
|
13 |
Extension monitors |
Up to 3 |
|
14 |
Ring tone |
8 chord ring tone(can be customized) |
|
15 |
Power supply |
DC15V/1A |
|
16 |
Working consumption |
7W(MAX), 1W(stand by) |
|
17 |
Working temperature |
0°C to +40°C |
|
18 |
Storage temperature |
-20°Cto +70°C |
|
19 |
Dimension |
185*127*17mm |
