Supply Inverter Adapter Transformer Power Box Distribution
Product Specifications
| Prod Model: |
18 channels+3ch+04A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
18CH+3CH-04A |
| Max Power: |
84000W |
| Constant Pressure: |
280V |
| Output Current: |
382A/221A |
| Output Voltage: |
220V/380V |
| Insulation Resistance: |
Greater Than 2m Omega/1000VDC |
| Frequency: |
50Hz/60Hz |
| Input: |
380V-5p |
| Operating Temperature: |
0 Degree Celsius to 45 Degree Celsius |
| Type: |
Power |
| Structure: |
Protection |
| Certification: |
CE |
| Size: |
Can Be Disigned for You |
| Shell Material: |
Wood |
| Brand: |
Made by Ourself |
Product Description

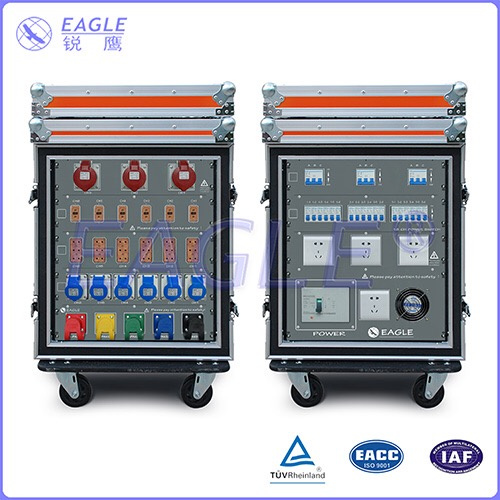

Power box The straight power box is a three-phase five-wire input Rhino plug,it adopts three-phase32A air switch to control six circuits,with the advantages of overload protection.Meanwhile,it adopts 16A air switch,the power supply box has a total of 30 circuits independent output.With the advantages of double protrction,the distribution product was designed specifically for the over-current and short-circuits electrical equipmnet.It is available for computer lamps ,toutine lamps,routine lamps and other equipment.It's an excellent choice for travelling performance.18 channels power distribution box| model | max power | constant pressure | output current | output voltage | insulation resistance | frequency | input | operating temperature | atmospheric pressure |
| 18ch-01A | 72000w | 280v | 327A/189A | 220V/380V | >2MΩ/1000VDC | 50Hz/60Hz | 380V-5P | 0ºC+45ºC | 0.8~1.6 Standard atmospheric |
| 18ch+3ch-04A | 84000w | 280v | 382A/221A | 220V/380V | >2MΩ/1000VDC | 50Hz/60Hz | 380V-5P | 0ºC+45ºC | 0.8~1.6 Standard atmospheric |
Fetures1.Elegant appearance,flexible and portable flight case design.
2.Standard from 6U to 30U
3.It can be customized according to different requirement.
4.Concise and direct reading digital display voltmeter.
5.Self-locking function when the current is too large,rhino plug with thre phase fivr cable.
5.Passed the international CE certification.

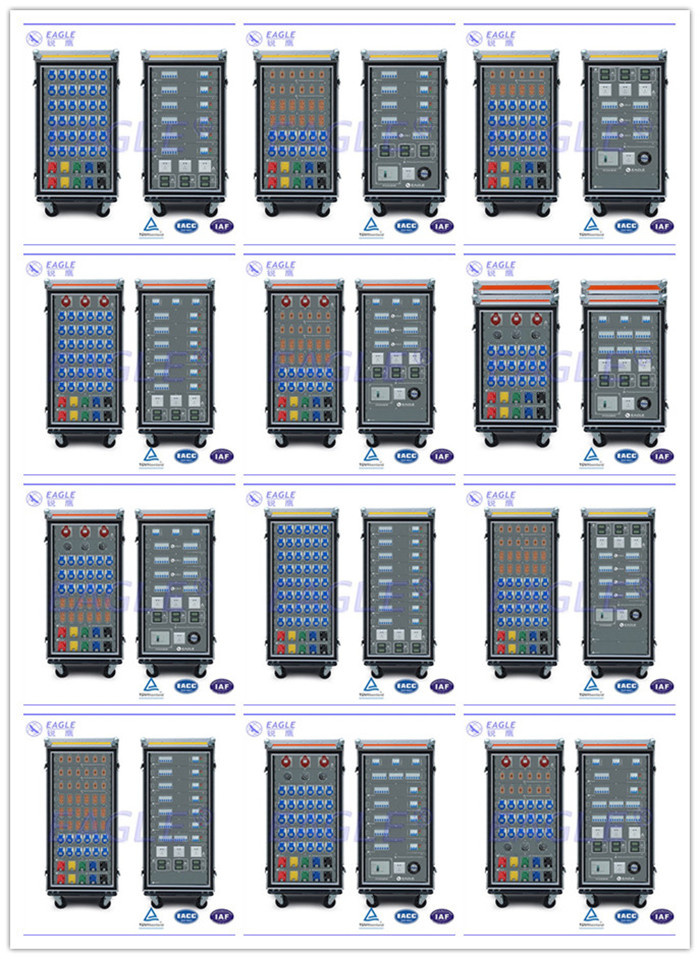

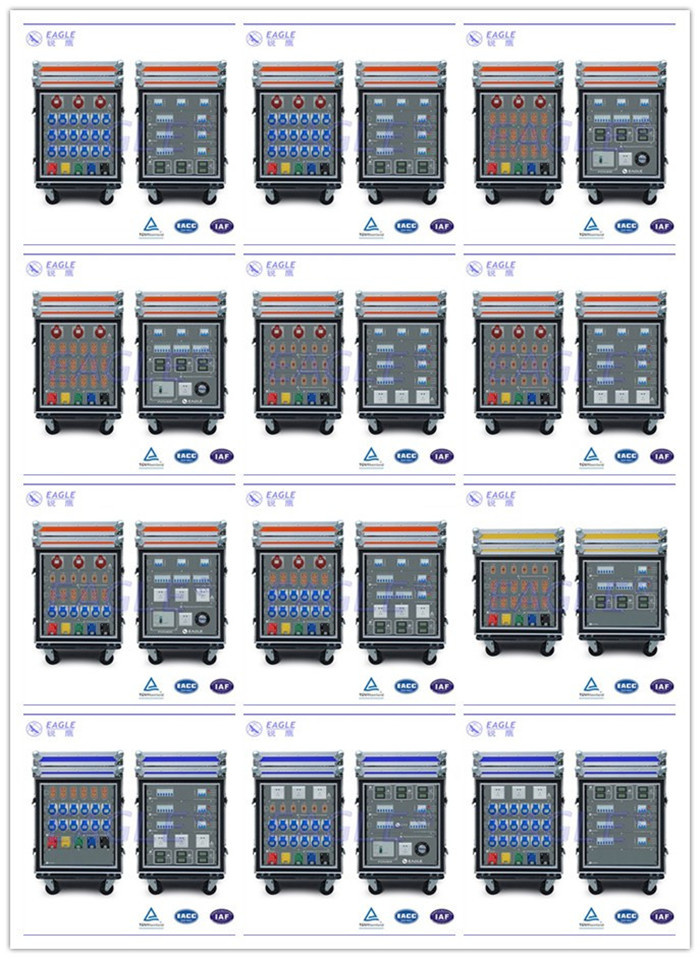

6.Optional Color:black/red/orange/white/buleOther power box's pictures
Cooperation
website:www.china-truss.com

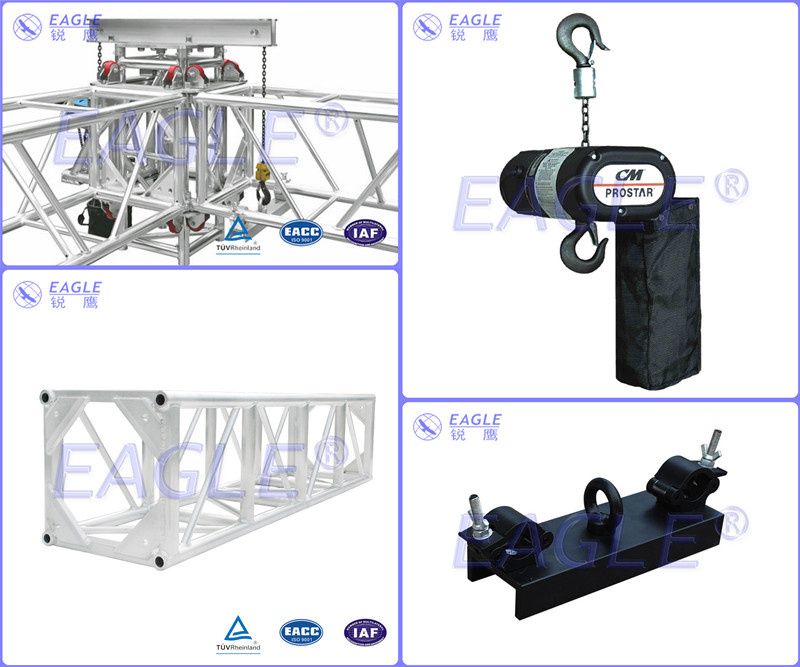

Guangzhou Eagle Stage Equipment Co., Ltd is a professional manufacturer specialized in stage equipments. Main products are flight case, moving stage, aluminum truss, outdoor roof, which are famous for firmness, beautiful appearance and practical usage.
The factory is located at Zhonghe industry zoon, Baiyun district, Guangzhou, which covers more than 6800sqm with modernized workshops. We possess a series of production equipments like advanced CNC precision lathe, digital cutting machine, automatic pressure aluminum-cutting machine and automatic hydraulic aluminum-cutting machine and so on.
The product has been completely passed the ISO9001: 2008 quality management system certification and Germany TUV safety certificate. We have an excellent work team, like professional designers and experienced innovative team and QC department to provide the top-quality products for all clients. The technique and quality was fully recognized by people in this field. After several years' development, Eagle Stage is getting strong and becoming one of the leading manufacturers producing flight case and aluminum light truss with large scale production. We have the experience to supply our product and service for many large performance troupes, government and large projects, and build closed cooperative relationship for a long time. By far, we have set up business relationship with many enterprises from European, North America, Australia, MID East, Hongkong ect.
