Product Specifications
| Prod Model: |
F-120W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Consume: |
70W |
| Operating Voltage: |
DC 24V |
| Opening&Closing Speed: |
450mm/Second to 750mm/Second |
| Lock: |
No Need and Our Operator Has Motor Lock |
| Load Weight: |
120kg*2 |
| Material: |
Aluminum Alloy |
| Type: |
Sliding |
| Open Style: |
Sliding |
| Opening Type: |
Induced |
| Color: |
Silver |
| Certification: |
CE |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
Product Description

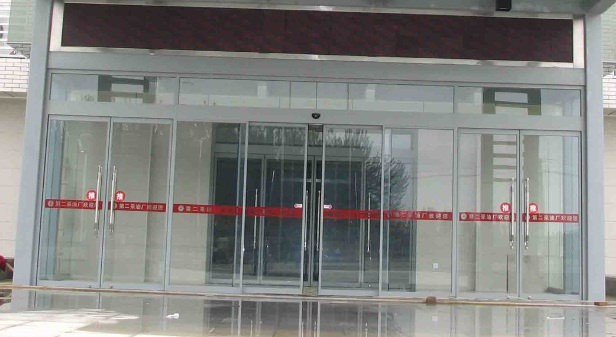

Surface adopted electrophoresis processing automatic door
Competitive Advantage:
1, Wide voltage (AC80-250V)low power consumption when at work, energy saving when at leisure .
2, Intelligent design, easy to install and adjust .
3, Digital programs, running parameters can be revised easily.
4, Specially designed noise-reduction track rail produces noise greatly,ensure the rollers run smoothly .
5, Advanced brushless DC motor and the worm-reduction gear are integrated together .which has advantages such as higher efficiency, large torque and longer life span ,no need for mechanical lock .
6, Different triggering modes are available, such as fire warning, safety beam sensor, handle button, etc.
7, 1 millions times of tests passed.
8, CE,SGS,IS09000,CQC
9, Super quite, safe
Technolgy parameters:
Type |
Single-Winged |
Bi-parting |
|
Model |
F-120W |
F-120WS |
|
Door Weight |
120kgX1(door) |
120kgx2(door) |
|
Door Width |
DW=700mm to 1500mm |
DW=650mm to 1350mm |
|
Installation |
Surface Install |
Surface Install |
|
Motor |
DC24V Brushless DC Motor |
DC24V Brushless DC Motor |
|
Controller |
The Micro-controller |
The Micro-controller |
|
Power Consumption |
70W |
70W |
|
Voltage |
AC80 to 250V (Regulate) |
AC80 to 250V (Regulate) |
|
Environmental Temperate |
-20'c to +50'c |
-20'c to +50'c |
|
Volume |
60decibel(max) |
60decibel(max) |
|
Starting Speed |
450mm/second to 750mm/second |
450mm/second to 750mm/second |
|
Starting Times |
Regulate from 0.5 second to 15 second |
Regulate from 0.5 second to 15 second |
|
Transmission |
Rack belt 150 S8M |
Rack belt 150 S8M |
|
Open door range : Full-open /Half-open(The distance can be regulated) |
Full-open /Half-open(The distance can
be regulated) |
PFC Power efficiency : 0.95 (AC100 Full load) |
0.95 (AC100 Full load) |
|
|
|
|
|
|
Shenzhen Hui Trade Industry Co., Ltd was established in the 1990 s, nearly 20 years in the automatic door control and related products field continuously explore. To products responsible for, is responsible for the customer for the development of the enterprise the premise, and with the overwhelming majority of the automatic door users provide safe, stable, with the highest cost-effective automation product categories for development goals.
In the growth process, successively in mainland area to the user with Chris dodd and, open he is cut off, the brand such as China' S total operation by the service, with the efficient, earnest, practical work for many of the same industry partners consistent approval. Now, the improved "CATERLY" automatic door unit to a lower price, consummate craft, fully functional advantages and the solid price for all the distributors love.
In 2007, in response to the changing market demand, home to more than HuiTrade joint development institutions, successfully develop T8-100 door machine translation, and 2008 years into production, so as to realize the transformation from the trade for production, trade, sales for the integration of diversified management, as the few independent research and development of one of the enterprise completely...In various special door, it has the very strong overweight door industry advantage. Products have been exported to Vietnam and southeast Asia as well as Hong Kong CATERLY "series products already has won the ISO9001: 2000 international standard authentication, and Pass CE certification.
Through the understanding of the Hui Trade to you, you will find that the choice of different channels more automation, unique solutions and the company always insists on the principle of the supremacy of the customer will let our pleasant cooperation, and in the automation channel field high-speed growth. Sincerely welcome vistit our factory to guidance, negotiations.
We, Shenzhen Hui Trade Industry Co., Ltd do our best to satisfied you.
