Product Specifications
| Prod Model: |
CGS-618M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Capacity: |
6inch*18inch |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Type: |
Surface Grinding Machine |
| Controlling Mode: |
Artificial |
| Processing Object: |
Curve |
Product Description

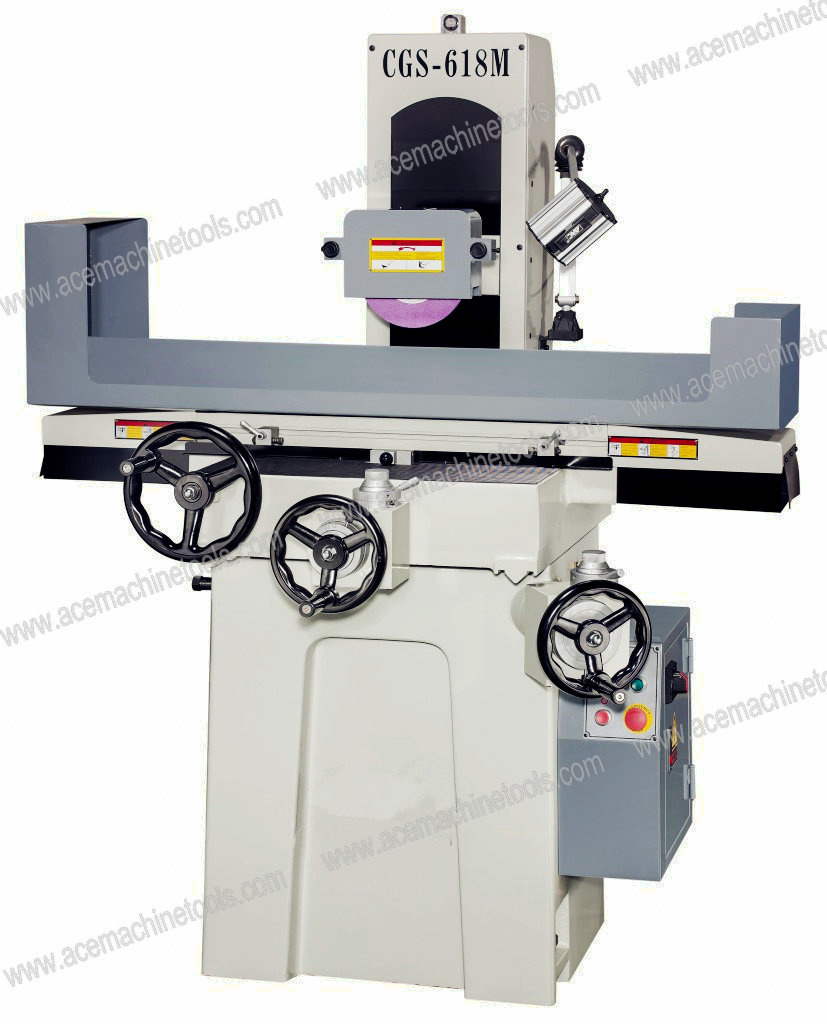

CGS-618M Surface Grinder
Roller ball on linear table ways for easy and smooth longitudinal movements
Ultra-high super rigid H-frame column with 21" spindle center to table for more clearance under the wheel than any other machine in its class
Flange-mount 3.35" diameter spindle cartridge design provides unmatched heavy grinding with superior side-grinding rigidity
Large metal hand wheels on all axis for long lasting dependability and easy operation
Over 2400 pound net weight, almost twice as massive as our competition
Centralized one-shot lubrication system provides lubrication to all points
Safety 24V control circuit power
|
Specs |
|
SPEC\MODEL |
KGS-618 |
CGS-618M |
SGS-816M |
SGS-816MR |
|
Table Travel: |
19.5" |
19" |
17" |
17" |
|
Saddle Travel: |
6.75" |
6.69" |
8.25" |
8.25" |
|
Working Capacity: |
6"x18" |
6"x18" |
8"x16" |
8"x16" |
|
T-Slot: |
1 x 9/16" |
1 x 9/16" |
1 x 9/16" |
1 x 9/16" |
|
Spindle Motor: |
2 HP |
3 HP |
2 HP |
2 HP |
|
Spindle Speed: |
3470 RPM |
3470 RPM (60Hz) |
3500 RPM |
3500 RPM |
|
Grinding Wheel: |
8"x1"x1-1/4" |
8"x1/2"x1-1/4" |
8"x1/2"x1-1/4" |
8"x1/2"x1-1/4" |
|
Vertical Graduation: |
0.0002" |
0.0002" (0.00005″) |
0.0005" |
0.0005″ |
|
Vertical Revolution: |
0.050" |
0.050" |
0.1" |
0.1" |
|
Spindle To Table: |
21" |
18" |
18" |
18" |
|
Net Weight: |
2400 LBS |
1600 LBS |
1430 LBS |
1430 LBS |
|
Gross Weight: |
2600 LBS |
1800 LBS |
1760 LBS |
1760 LBS |
|
Accesories |
|
|
|
|
|
|
Standard |
Optional |
|
|
|
Grinding Wheel |
S |
|
|
|
|
Wheel Flange |
S |
|
|
|
|
Wheel Balancing Base |
S |
|
|
|
|
Wheel Balancing Arbor |
S |
|
|
|
|
Diamond Table Dresser Base & Tip |
S |
|
|
|
|
Leveling Bolts & Pads |
S |
|
|
|
|
HalogenWork Light |
S |
|
|
|
|
Toolbox w/ Tools |
S |
|
|
|
|
Kanetsu 6×18 fine pole electric chuck & control |
|
O |
|
|
|
Kanetsu 6×18 permanent magnetic chuck |
|
O |
|
|
|
Walker 6×18 Ceramax permanent chuck |
|
O |
|
|
|
Walker 6×18 fine pole electric chuck & control |
|
O |
|
|
|
Dust-suction coolant system |
|
O |
|
|
|
Flood coolant system |
|
O |
|
|
|
Overhead parallel dresser |
|
O |
|
|
|
Extra wheel flange |
|
O |
|
|
|
DRO system (Acu-Rite 2-axis, 200S, 8×18 scales) |
|
O |
|
|
|
Rotary magnetic chuck-ψ150mm |
|
O |
|
|
