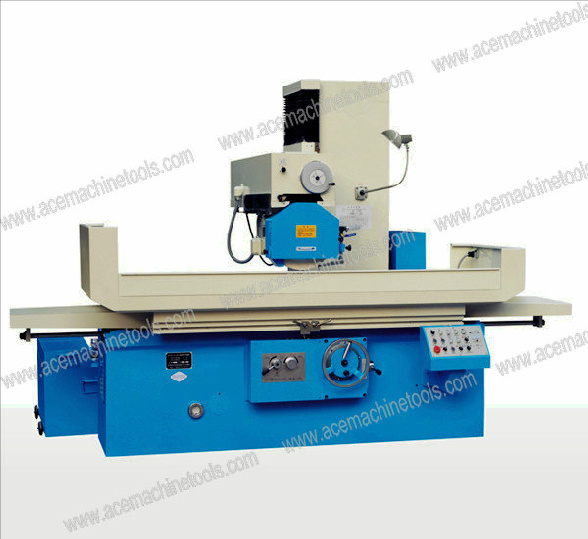

Surface Grinding Machine 7163
MAIN APPLICATION
Be applicable to working of various spare parts, such as machine processing, car accessories, work tongs and clamping tools, magnetic steel and molding tools...Etc. This machine can be used to grind various kinds of blankets of different materials such as steel, iron, porcelain and ceramics, non-ferrous metals and etc...
|
Product Description |
|
Main Specifications |
Unit |
SG7150×12-GM |
SG7160-GM |
SG7163×12-GM |
|
Table |
Table working surface (W×L) |
mm |
500×1250 |
600×1000 |
600×1250 |
|
Max. size of workpiece to be ground (W×L×H) |
mm |
500×1250×400 |
600×1000×400 |
630×1250×400 |
|
Table Longitudinal travel (Hydraulic) |
mm |
200-1350 |
200-1100 |
200-1350 |
|
Speed of table (Stepless) |
m/min |
3-25 |
3-25 |
3-25 |
|
Table "T" slots |
mm |
3 |
3 |
3 |
|
Width |
22 |
22 |
22 |
|
Max. allowable weight of workpiece (Including electromagnetic chuck) |
kg |
980 |
980 |
980 |
|
Electromagnetic chuck size (W×L) |
mm |
500×1250 |
600×1000 |
600×l250 |
|
|
Max. travel wheel-head |
mm |
550 |
650 |
680 |
|
Automatic cross-feed of wheel-head (Stepless) |
m/min |
0.5-2.5 |
0.5-2.5 |
0.5-2.5 |
|
Continuous |
|
|
|
|
|
Intermittent |
mm/m |
3-30 |
3-30 |
3-30 |
|
Grinding wheel head |
Min. Down-feed hand-wheel dial graduated to |
mm |
0.005 |
0.005 |
0.005 |
|
Wheel-head feed for each turn of hand-wheel |
mm |
0.5 |
0.5 |
0.5 |
|
Vertical |
|
Grinding wheel size (O.D×W×I.D) |
mm |
400×50×203 |
400×50×203 |
400×50×203 |
|
Motor power |
Electrical equipment total capacity |
KVA |
14 |
14 |
14 |
|
Grinding wheel motor power |
kw |
7.5 |
7.5 |
7.5 |
|
Speed |
r/min |
1440 |
1440 |
1440 |
|
work accuracy |
Working surface to base level parallelism |
mm |
300:0.008 |
300:0.008 |
300:0.008 |
|
Surface roughness |
μm |
Ra0.63 |
Ra0.63 |
Ra0.63 |
|
Base parameter |
Overall dimensions (L×W×H) |
mm |
3540×2073×2280 |
3040×2173×2280 |
3540×2173×2280 |
|
Packing case dimensions (L×W×H) |
cm |
383×218×270 |
343×218×270 |
383×228×270 |
|
N.W |
kg |
4900 |
4800 |
5100 |
