Product Specifications
| Prod Model: |
SGS-816M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Type: |
Surface Grinding Machine |
| Controlling Mode: |
Artificial |
| Processing Object: |
Curve |
Product Description

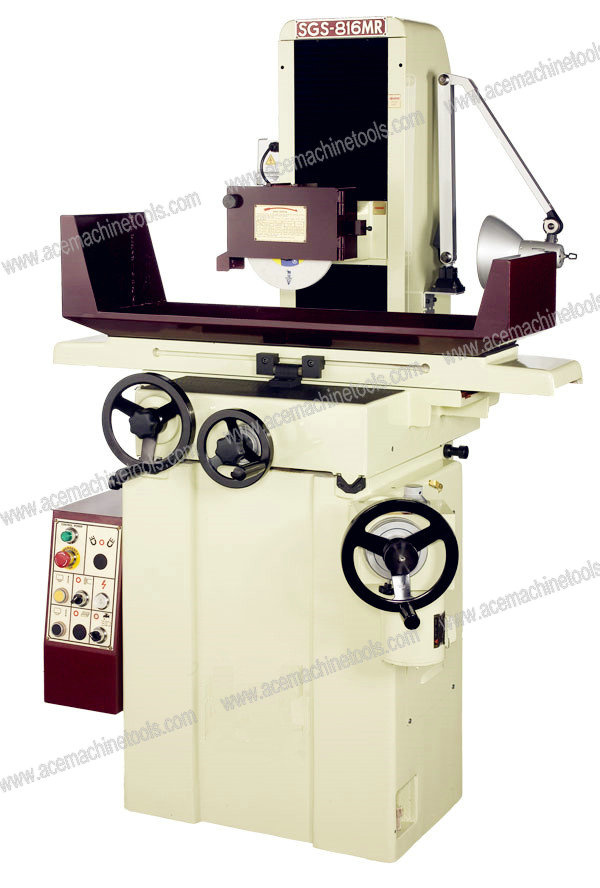

SGS-816M Surface Grinder
8"X16" working capacity
Downfeed dial graduated in 0.0001"
Roller ball on linear table ways for easy and smooth longitudinal movements
High column, 18" spindle center to table for extra clearance under the wheel
8" cross traverse for extra width and capacity, perfect for the mold shops
Centralized automatic lubrication system provides lubrication to all points
Safety 24V control circuit power
|
Specs |
|
SPEC\MODEL |
KGS-618 |
SGS-816M |
SGS-816MR |
KGS-1020 |
|
Table Travel: |
19.5" |
17" |
17" |
24.5" |
|
Saddle Travel: |
6.75" |
8.25" |
8.25" |
11" |
|
Working Capacity: |
6"x18" |
8"x16" |
8"x16" |
10"x20" |
|
T-Slot: |
1 x 9/16" |
1 x 9/16" |
1 x 9/16" |
1 x 9/16" |
|
Spindle Motor: |
2 HP |
2 HP |
2 HP |
3 HP |
|
Spindle Speed: |
3470 RPM |
3500 RPM |
3500 RPM |
2850 RPM (50 Hz)3420 RPM (60 Hz) |
|
Grinding Wheel: |
8"x1"x1-1/4" |
8"x1/2"x1-1/4" |
8"x1/2"x1-1/4" |
12"x1"x3" |
|
Vertical Graduation: |
0.0002" |
0.0005" |
0.0005″ |
0.0002" |
|
Vertical Revolution: |
0.050" |
0.1" |
0.1" |
0.050" |
|
Spindle To Table: |
21" |
18" |
18" |
21" |
|
Net Weight: |
2400 LBS |
1430 LBS |
1430 LBS |
3256 LBS |
|
Gross Weight: |
2600 LBS |
1760 LBS |
1760 LBS |
3800 LBS |
|
Accesories |
|
|
|
|
|
|
Standard |
Optional |
|
|
|
Grinding Wheel |
S |
|
|
|
|
Wheel Flange |
S |
|
|
|
|
Wheel Balancing Base |
S |
|
|
|
|
Wheel Balancing Arbor |
S |
|
|
|
|
Diamond Table Dresser Base & Tip |
S |
|
|
|
|
Leveling Bolts & Pads |
S |
|
|
|
|
Work Light |
S |
|
|
|
|
Toolbox w/ Tools |
S |
|
|
|
|
DRO System |
|
O |
|
|
|
Fine Pole Electric Chuck & Control |
|
O |
|
|
|
Permanent Chuck |
|
O |
|
|
|
Dust-Suction Coolant System |
|
O |
|
|
|
Flood Coolant System |
|
O |
|
|
|
Overhead Parallel Dresser |
|
O |
|
|
|
Extra Wheel Flange |
|
O |
|
|
|
Rustlick Coolant (1 Gal, Mixes 1:30) |
|
O |
|
|
