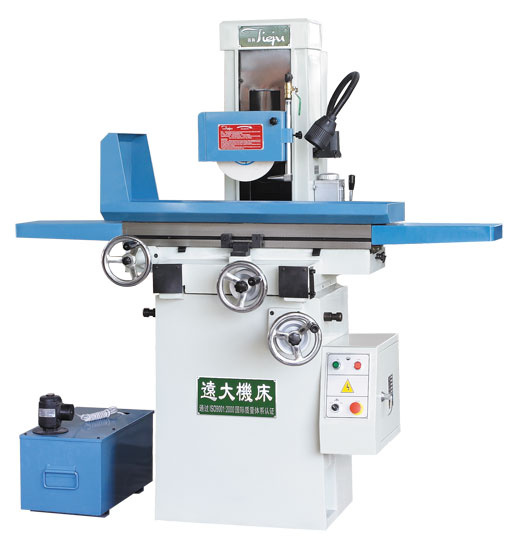

1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
Technical Parameters
Units
M618A
MS618A
Max. workpiece to be Ground
( L× W× H)
mm
500× 190× 335
500× 190× 335
Max. Grinding Length
mm
460
460
Max. Grinding Width
mm
180
180
Distance From Table Surface To Spindle Center
mm
335
335
Slide way
V-type rail with Steel-ball
V-type rail with Steel-ball
V-type rail with Steel-ball
Kg
200
200
Table Size (L× W)
mm
460× 180
460× 180
Number of T -Slot
mm× n
14× 1
14× 1
Speed OF Working Table
m/min
3-23
3-23
Cross Feed On Handwheel
mm
0.02/Graduation2.5/revolution
0.02/Graduation2.5/revolution
Vertical Feed On Handwheel
mm
0.01/Graduation1.25/revolution
0.01/Graduation1.25/revolution
Wheel Size (dia. × width× bore )
mm
200× 16× 31.75
200× 16× 31.75
Spindle Speeds
50Hz
rpm
2850
2850
0-6000
30-6000
Spindle Motor
Kw
1.1
1.1
Coolant Pump
Kw
0.4
0.4
Minimum of Numerical Display
mm
0.001-0.005
Machine Size (L× W× H)
mm
1550× 1060× 1590
1550× 1060× 1590
Packing Size (L× W× H)
mm
1060× 1170× 1870
1060× 1170× 1870
Gross, Net
T
0. 75, 0.65
0. 79, 0.69
Our company is a factory of manufacturing surface grinding machines, has the certificate for export and has passed through the international quality system with the certificate of ISO 9001-2000. The products also have passed the national inspection of machine tool. "Tieju" is the trademark of our surface grinding machines and combine the technology and experience of Taiwan grinding machines, which are our honorary products. The major products of our company are model M618A/M820/MY1022/MY1224 /M7140and so on, which adopt the V-type guide, bring transmission by synchronous belt. Meanwhile, adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electro-magnetic chuck or the dense chuck of permanent magnetism and having the following features: Operating simple and convenient, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement and a long-life service, mostly suitable for applying to process various moulds and ceramics.
