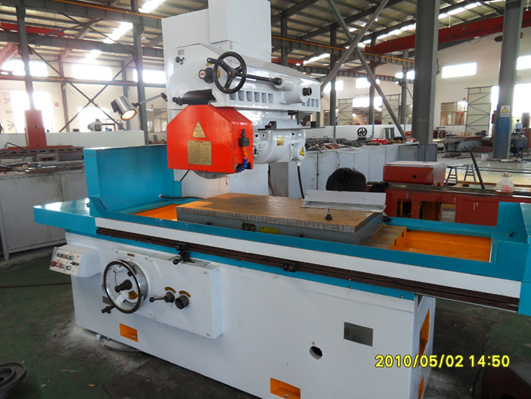

Surface Grinding Machine with Grinding Head Moving (M7150)
| Price: |
Negotiable |
| Trade Terms: |
by Sea |
| Min Order: |
1Set |
| Pay Type: |
T/T |
M7150 horizontal surface grinder
Introduce:
Performance & characteristic feature:
This series of machines were adopted with the grinding wheel to do grinding, it is widely used in machine manufacturing industry for grinding the surface of all sorts of metal parts such as the steel, the cast iron and the non-ferrous metal
Accessories
Grinding wheel 2 PCS
Electromagnetic chuck 1 set
Grinding wheel balancing bracket 1 set
Wrench 1 piece
Grinding wheel finisher 1 set
Foundation bolt 2 pairs
Grinding wheel chuck 2 pairs
Sizing block 7 pairs
Grinding wheel balancing shaft 1 pair
Shaving scrap iron board 1 pair
Size 500x1250mm 500x1600mm 500x2000mm
|
SPECIFICATION |
M7150 |
|
S ize of workatable ( L × W × H ) |
mm |
125 0× 500 |
1600 × 500 |
2000 × 500 |
|
Max. Longitudinal movement of worktable |
mm |
1350 |
1700 |
2100 |
Max. Distance from the spindle centerline to
the worktable surface |
mm |
800 |
800 |
800 |
|
Max. Cross movement of grinding head |
mm |
580 |
580 |
580 |
|
Max. Vertical movement of grinding head |
mm |
600 |
600 |
600 |
Vertical movment of the grinding
head by hand wheel |
Per graduation |
mm |
0.01 |
0.0 1 |
0.0 1 |
|
Per revelotion |
mm |
1.00 |
1.0 |
1.0 |
|
Rapid lifting motor |
Power |
KW |
0.37 |
0.37 |
0.37 |
|
S peed |
r/min |
1450 |
1450 |
1450 |
|
Abrasive wheel dim ( D × W × d ) |
mm |
400x203x50 |
400x203 x50 |
400x 203 x50 |
|
Speed of grindwheel |
r/min |
1440 |
1440 |
1440 |
|
T otal power of motor |
Kw |
12 |
12 |
12 |
|
Power of spindle motor |
KW |
7.5 |
7.5 |
7.5 |
|
Power of oil pump motor |
KW |
4 |
5.5 |
5.5 |
|
Processing accuracy |
mm/mm |
1000: 0.015 |
1000: 0.015 |
1000: 0.015 |
|
Surface roughness |
|
Ra: 0.63 |
Ra: 0.63 |
Ra: 0.63 |
|
N/G weight |
kg |
5300/6000 |
6000/6900 |
7000/7800 |
|
Packing size(LXWXH) |
mm |
3800X2700X2800 |
4500X2700X2800 |
5600X2700X2800 |
| Prod Model: |
M7150 500x1250mm 500x1600mm 500x2000mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Abrader/Abraser |
| Material: |
Iron |
| Type: |
Grinding Machine |
Established in 2005, as a growing factory located in dafeng city, jiangsu province, we, Yancheng C&J Machinery Co., Ltd. is specialized in manufacturing all kinds of surface grinders machine and shot blast cleaning machines for many years. Also we can supply all kinds of lathe machine, milling machine, driling machine and sawing machine, shearing machine, press brake and so on other machine tools based on customer's requirement.
With high quanlity and competitve price & rapid delivery time our goods have been popular in every country. Our goods has been mainly exported to USA and Europe and other Asia, south America countries, especially, Vietnam, Brazil, Argentina. Poland, Turkey and so on.
In our company we have many professional technicians specialized in design, manufacture, inspection and after-sales services of our grinding machine.
Also quanlity assurance has been always the key secret of our success. Every single machine is thoroughly tested under load before delivery the customers. And we provide one-year parts warrantly to our customers around the world as well as professional technical support and services.
With the sprite of "quality first, user supreme", we're insisting on seeking survival with quanlity, to seek the development with reputation, to compete by technology, with the management concept of taking customer as god, we provide best quality with best price to our overseas buyerand we will forever do our best to proceed and gain further sucess. Your demand is our pursuit forever. We are ready to establish mutual benefits with companies both at home and abroad. If you are interested in any of our products, please feel free to contact us immediately.
At present our main products range as following:
Surface grinding machine
Manual Surface grinder: M618A, M820, M250
Auto electric Surface grinder: MD618A, MD820, MD250
Auto Hydraulic Surface grinder: MY618, MY820, MY250, MY3060, MY3075, M230A, M7125A, M7135A, M7140A
Full Auto (PLC) hydraulic Surface grinder: SG2050AHD, SGA2550AHD, SGA3063AHD, SGA4080AHD, SGA40100AHD
Wheel Head Moving Surface grinder: M7130, M7132, M7140, M7150, M7160, M7163
Full Auto PLC Column moving surface grinder: SG50100AHD, SG50160AHD, SG60120AHD, SG60160AHD, SG60220AHD, SG50100SD, SG50160SD, SG60120SD, SG60160SD, SG60220SD,
Cylindrical grinding machine (MW1320, M1332, M1350, M1363, M1380), Universal cylindrical grinding machine M1420, MW1420, M1432B, M1450, M1463) and so on.
Shot blast cleaning machine
- Q31 Rotary barrel( drum) type shot blast cleaning machine
- Q32 Tumblast type shot blast cleaning machine
Q324, Q326, Q328, Q3210 tumble rubber belt shot blasting machine
Q3210 Auto loading tumble shot blasting machine
- Q35 Turn table type shot blasting machine
- Q36 series car type shot blasting machine
- Q38/48/58 series hanging chain type shot blasting machine
- Q76 series car type shot blasting machine
- Q37 Spinner Hook tpye shot blast cleaning machine
- Internal & external pipe series shot blasting machine
- Q69 Roller type pass through shot blast cleaning machine
Q69 series Steelplate/profile series shot blasting machine (horizontal)
QH- Section/H-Bean structural steel series shot blasting machine ( Vertical)
- Steel plate pretreatment line
- Air recycling type/ Mechanical recycling shot peeing machine
- Internal & external pipe series shot blasting machine
- Big Sand Blasting room
- Blasting coating production line
- Sand blasting machine
- Dust collector (pleated bag with vibrating mechanism, cartridge filter with pulse valve)
- Blast wheels(impellers), shot blasting turbines system
( motor direct driven or belt driven 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw, 30kw, 75kw ),
- All kinds of spare parts
-blades, control cage, impeller, wheel hub, end liner, top liner, side liner, chamber liner.
