Surge Protective Device Protector 600VDC SPD

Product Specifications

Prod Model:	FSP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Surge Protection of PV System in DC Side
Voltage:	Below 1000VDC
Type:	Power Source Arrester
Structure:	Pluggable
Installation:	DIN Rail

Product Description

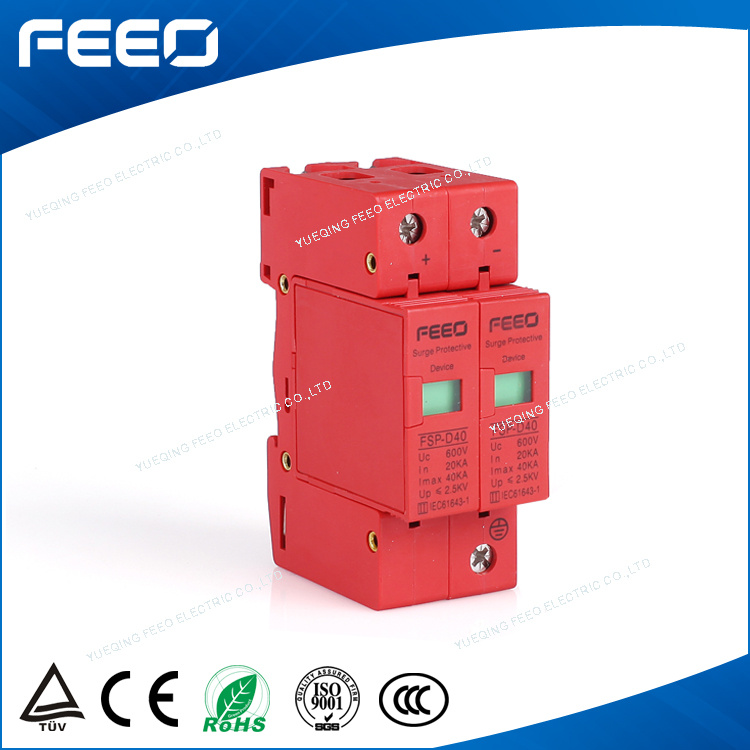

FEEO Solar Energy DC Surge Protector

FSP surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Technical Data

FSP  series surge protector		FSP
PV DC-specific(LEC 66143-I/EN 61643-1 1)
Pole		2P	3P
Electrical Parameter
Classified test		II	II
Uoc max(V DC)		500	1000
Uc(V DC)		500	1000
In(8/20)us(KA)		20	20
Imax(8/20)us(KA)		40	40
Up(KA)		2.0	3.8
Remote control and indication
Indication window
Plug-in Module
Remote signal contact
Remote signal contact	maximum working voltage(V)	250AC/30V DC	250AC/30V DC
	maximum working current(A) IA(250V/AC)	IA(250V/AC)	IA(250V/AC)
	IA(30V DC)	IA(30V/AC)	IA(30V/AC)
Wiring &  installation
Wiring capacity(mm 2 )	Hard wire	4 ~ 25	4 ~ 25
	Flexible wire	4 ~ 16	4 ~ 16
Stripping length(mm)		10	10
Terminal screwa		MS	MS
Torque(Nm)	Main circuit	3.5	3.5
	Remote signal contact	0.25	0.25
Protection class	All profile	IP40	IP40
	Connection port	IP20	IP20
Installation environment		No obvious shock and vibration
Altitude (m)		≤ 2000	≤ 2000
Wording Temperature		-3.0 ~ +70	-3.0 ~ +70
Relative humidity		30% ~ 90%	30% ~ 90%
How to Install		Installed with H35-7.5/din35 steel mounting rail
Size(mm)(W ´ H ´ L)	W	36	54
	H	90	90
	L	67.6	67.6
Weight(kg)		0.24	0.36
