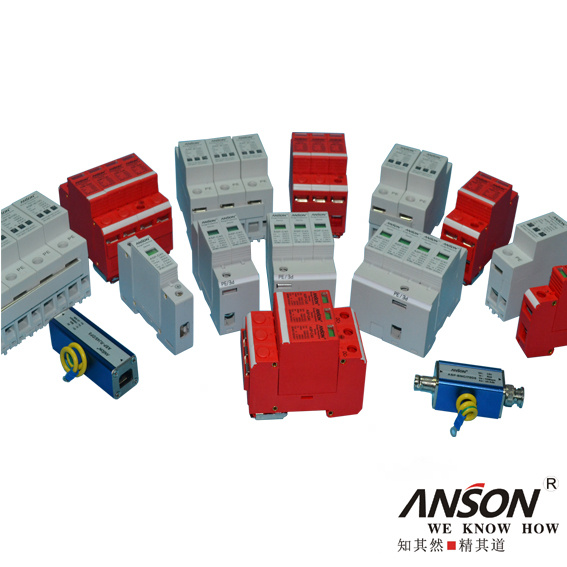

Surge Protective Device/Surge Protective/Lightning Protector
Product Specifications
| Prod Model: |
ASP-B 100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Power Source Arrester |
| Installation: |
Tandem Arrester |
| Brand: |
Anscnlec |
| Structure: |
Detachable |
Product Description

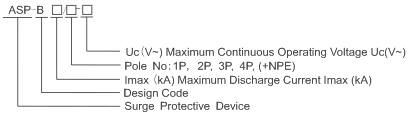

Product Description:ASP5 series surge protective device (in short: SPD, alias: surge protector, surge arrester) is suitable for TN-S, TN-C-S, TT, IT etc. power supply system of AC 50/60Hz, =380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, it's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, therein a failure release mounted on the module of surge protective device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.Model and Meaning:
Product Features:1. The integration of the style surge protective device.2. The cooler of visible window shows operating status.3. Double protection of over-heat and over-current.4. Have the accessory of remote signaling interface, could be remote control. Main Technical Parameters:| Model | ASP-B 200 | ASP-B 150 | ASP-B 120 | ASP-B 100 | ASP-B 80 | ASP-B 60 |
| Technical Parameters |
| Rated Operating Voltage Uv (V~) | 220V/ 380V |
| Maximum Continuous Operating Voltage Uc (V~) | 385V/420V |
| Voltage Protection Level Up (V~) kV | ≤4.0 | ≤3.2 | ≤3.0 | ≤2.8 | ≤2.4 | ≤2.2 |
| Maximum Discharge Current Imax (8/20µs)kA | 150 | 150 | 120 | 100 | 80 | 60 |
| Nominal Discharge Current In(8/20µs)kA | 200 | 100 | 80 | 60 | 40 | 30 |
| Response Time ns | <25 |
| L/N(mm²) The Cross Section of L/N Line | 25,35 | 16,25 | 16,25 | 16,25 | 16,25 |
| PE(mm²) The Cross Section of PE Line | 35 | 25,35 | 25,35 | 25,35 | 16,25 |
| Fuse or Switch (A) | 63A,125A | 63A | 63A | 63A | 63A,32A |
| (mm²) The Line Section of Communication and Alarm | ≤1.5 |
| Operating Environment ºC | -40ºC~+85ºC |
| Relative Humidity(25ºC) | ≤95% |
| Installation | Standard Rail 35mm |
| Material of Outer Covering | Fiber glass reinforced plastic |
Shanghai Anson Electric Technology Co., Ltd, founded in 2003, after more than 10 years development, it has been grown to be a professional manufacturer & distributor of a wide variety of industrial control and protective devices, contactors, DC isolators for photovoltaic systems, weatherproof portable power distribution boards, switches and sockets, surface switches, combination switched sockets, power distribution boards, electrical enclosures, MCBs, MCCBs, AC contactors, relays and control components.
Anson enjoyed a very good reputation from our customers around the world by offering a variety of quality industrial control, protective and connectionproducts.
As a manufacturing company certified by ISO9001, our main products approved by CE, SAA, Anson electric regarded the quality, customer' S 100% satisfaction as our philosophy.
We guarantee you extremely high quality, reliability, safety, innovative drive, proximity and performance to the market and sustainability in our business are the qualities that single our brand out, this guarantee is one of the main reasons why our Anson brand is irreplaceable. We live our brand and are committed to it.
