Product Specifications
| Prod Model: |
SWA-450 |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Diampers Package |
| Usage 2: |
Baby Diapers Package |
| Speed: |
30-150packs/Min |
| OEM Service: |
Available |
| Automatic Grade: |
Automatic |
| Application: |
Solid Food |
| Driven Type: |
Electric |
| Material Type: |
Solid |
| Packaging Material: |
Film |
| Forming Species: |
Bag Packing |
| Packaging Type: |
Plastic Bag |
Product Description

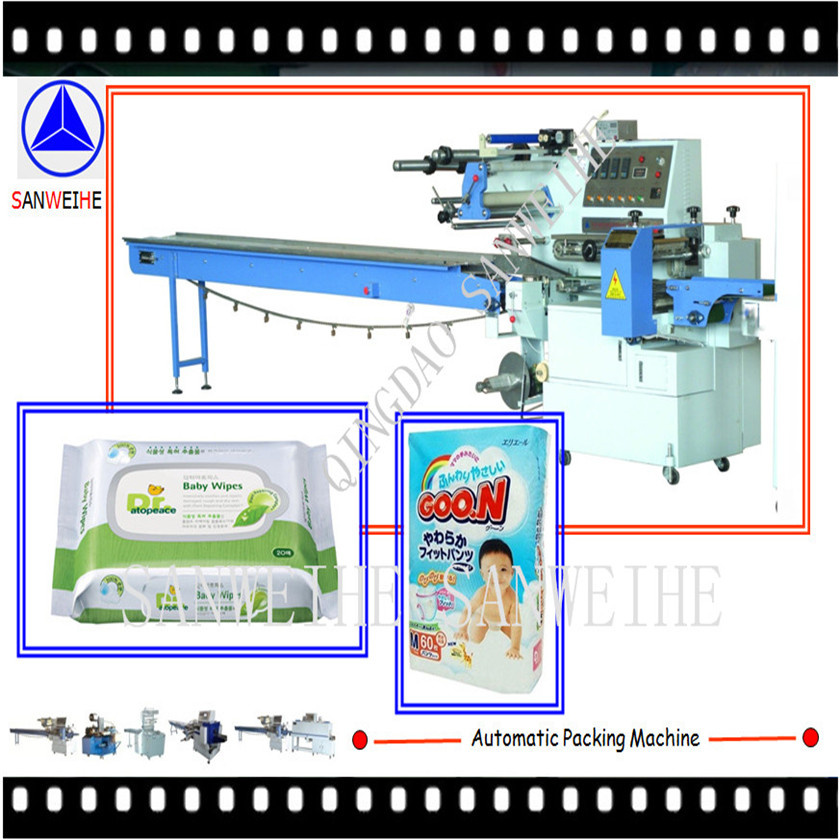

SWA-450 Horizontal Type Baby Diapers Automatic Packaging Machinery
High-speed pillow shape atomatic packaging machinery is suitable for packaging various kinds of food, industrial products, plastic forks or knives etc.
The features about the packaging machinery:
1. The main circuit is multi-point controlled by the PLC, accurate, reliable and with stable performance.
2. Adopting the frequency converter to step-less speed regulation.
3. The temperature control circuit is composed of intelligent temperature controller, constant energy relay and other components, enables the machine with accurate temperature control, direct display and convenient setting. The electro-magnetic realizes the multi-point tracking and detection, enables a precise cutting position, that means accurate pack length and reliable packing speed control.
4. Forward and reverse intelligent tracing is used to increase the tracing precision and reduce tracing time, in order to reduce the amount of waste products.
5 The machine will be stopped at a predetermined position when stopped, so to prevent film from burning-up.
6. According to the customer's demands, we could add auxiliary equipments: Date and batch number printer, various automatic feeding machines, film winding device chip edge, angle-folding mechanism of packing bag etc.
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packaging machinery for your specific need
3. Our professional workers will make the perfect packaging machinery for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packiagng machinery
FAQ:
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film, CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
The spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
Problem, we will help you to solve the problem freely, we will also send the spare
Parts for replacement, of course the spare parts are not for free
| Parameters of the packaging machinery |
| Max width of film | 450mm |
| Packaging range | L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed | 30-2200Bag/min |
| Category of film | Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor | 1.5KW |
| Power of electrical | 2.5KW |
| Total power | 4.6KW single phase 220V |
| Overall dimension L×W×H | 5700×1050mm×1700mm |
| Weight | About 1000kg |
We are manufacture of automatic packing machinery as well as related equipment for more than 13 years, At present, our products cover five categories of more than ten varieties and their auxiliary products. Our machines include horizontal flow wrapping machine, shrink wrapping machine, Automatic packing machine for mosquito mat, Noodle automatic weighing and packing machine, Tray-free over-wrapping machine, These automatic wrapping machines apply to pack the blocky articles, such as foodstuff, light industrial components, daily necessities, medicine and so on.
As one of the top-leading company for providing quality packing machinery, as we are in manufacturing horizontal flow packing machinery for many years, we offers not only advanced wrapping machinery but also bring a turn-key solution for the packaging to our customers.
Our clients are all over every province of China, also our customers covers many other foreign countries, such as Thailand, Malaysia, Indonesia, Turkey, Poland, Chile, Portugal, Madagascar, Egypt, Iron, Jordan, United Arab Emirates, Uzbekistan, Pakistan, Bangladesh, Myanmar etc.
The company principle in business is that regard the people as the dominant factor, sincere to customers and try to win the market with high quality.
We warmly welcome the inquiries from both China and overseas old and new friends.
