Product Specifications
| Prod Model: |
UDZZG-600 UDZZG-800 UDZZG-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function 1: |
Boiling |
| Function 2: |
Vacuum Compression |
| Function 3: |
Melting |
| Function 4: |
Disinfect |
| Function 5: |
Precook |
| Function 6: |
Concentration |
| Application: |
Sweetened Bean Paste ,Jam |
| Customized: |
Customized |
Product Description

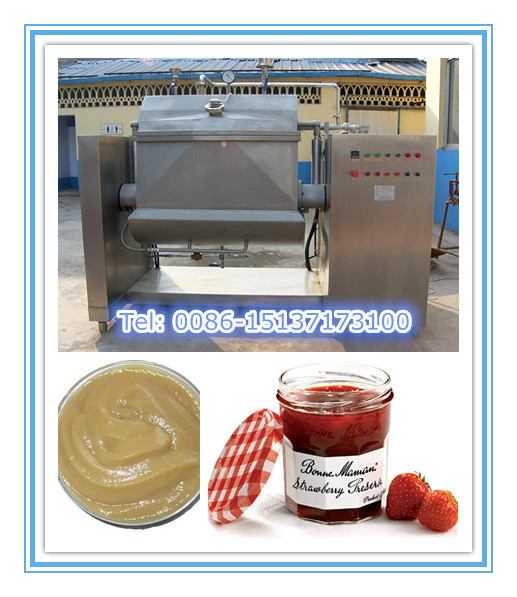

low temperature vacuum white granulated sugar dissolve machine
sweetened bean paste/Fruit Puree/Jam/vegetable/aquatic product
boiling&Vacuum&compression&melting&disinfect&precook&concentration
Features:
1.Product Overview
Transverse horizontal mixing pot by spiral paddle and mixing plant, which makes the material flow cycle and make them fully mixing, by mixing plant will continue to have heating and without heating material mixing, stirring.The technical performance is high, easy to operate.
2.Applied Range
Widely used in bean paste, seasoning food, aquatic products, vegetables, fruits and vegetables, soup mix heating, etc.
3.Advantages
--Browning, the phenomenon such as zoom, products will not happen, can keep the original material color
--Under the vacuum state, can be dissolved in low temperature, such as white granulated sugar
--can improve the quality of vacuum low temperature concentration
--The cooling effect, deaeration, prevent degeneration and so on
--Temperature control, royal
-- the weight of the display
--Record
--Frequency converter speed,
--Intermittent mixing plant.
Specifications:
| Model | UDZZG-200 | UDZZG-300 | UDZZG-600 | UDZZG-800 | UDZZG-1000 |
| Volume | 200L | 300L | 600L | 800L | 1000L |
| Mixer power | 1.5 | 1.5 | 2.2 | 3.7 | 3.7 |
| Steam pressure | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Steam consume | 125 | 135 | 180 | 220 | 235 |
| Evaporation capacity | 40 | 60 | 120 | 160 | 200 |
| Overall dimensions | 1190*800*1100 | 2230*840*1170 | 2500*1000*1445 | 2930*1160*1510 | 3250*1260*1760 |
