Product Specifications
| Prod Model: |
SWF-450 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
30-150packs/Min |
| Place Of Origin: |
Qingdao China |
| Keywords: |
Packing Machine |
| Packet Type: |
Pillow Shape Bag Packing |
| Automatic Grade: |
Semi-Automatic |
| Driven Type: |
Electric |
| Packaging Material: |
Film |
| Material Type: |
Solid |
| Applicable Industry: |
Gift, Handicraft |
| Application: |
Skin Care Products |
| Forming Species: |
Bag Packing |
| Packaging Type: |
Bag Packing |
Product Description

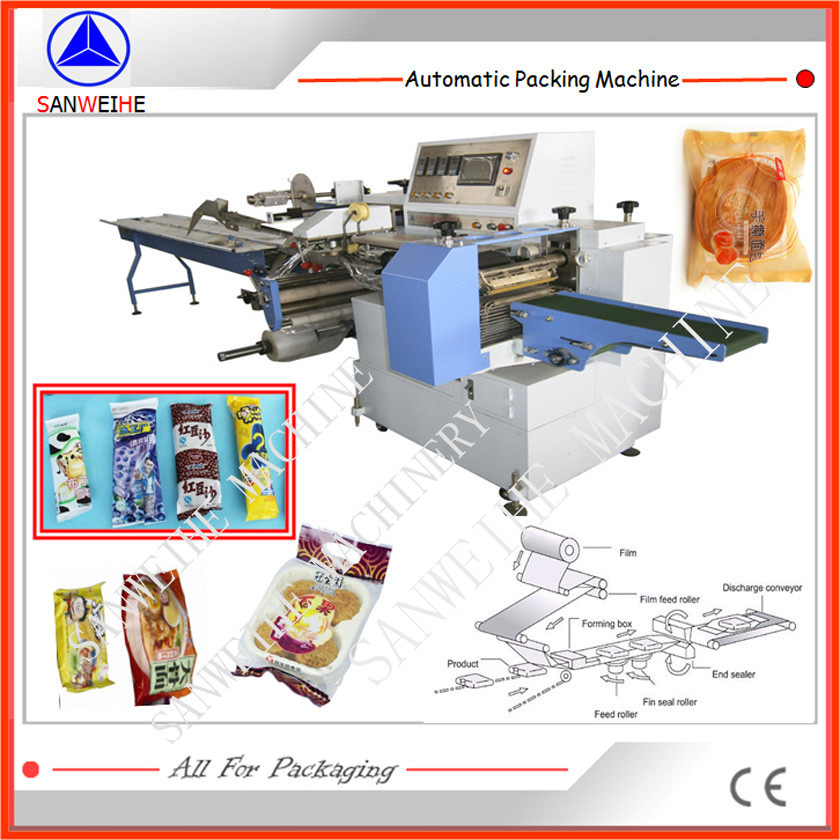

SWF-450 Horizontal Inverted Type Automatic Packing Machinery
Film enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical flow packing machinery.
Application of packing machinery:
Single Piece product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.
Features of Pillow Type Automatic Packing Machinery:
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machinery and the PLC touch screen controlled flow packing machinery
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machinery for your specific need
3. Our professional workers will make the perfect packing machinery for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machinery
| Parameters of the Pillow Type Automatic Packing Machinery |
| Max width of film | 450mm |
| Packaging range | L:53~300mm, W:20~100mm, H:5~70mm |
| Packing speed | 30-180Bags/min |
| Category of film | Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
| Power of main motor | 1.5KW |
| Power of electrical | 2.5KW |
| Total power | 4.6KW single phase 220V |
| Overall dimension L×W×H | 5700×960mm×1480mm |
| Weight | About 1000kg
|
