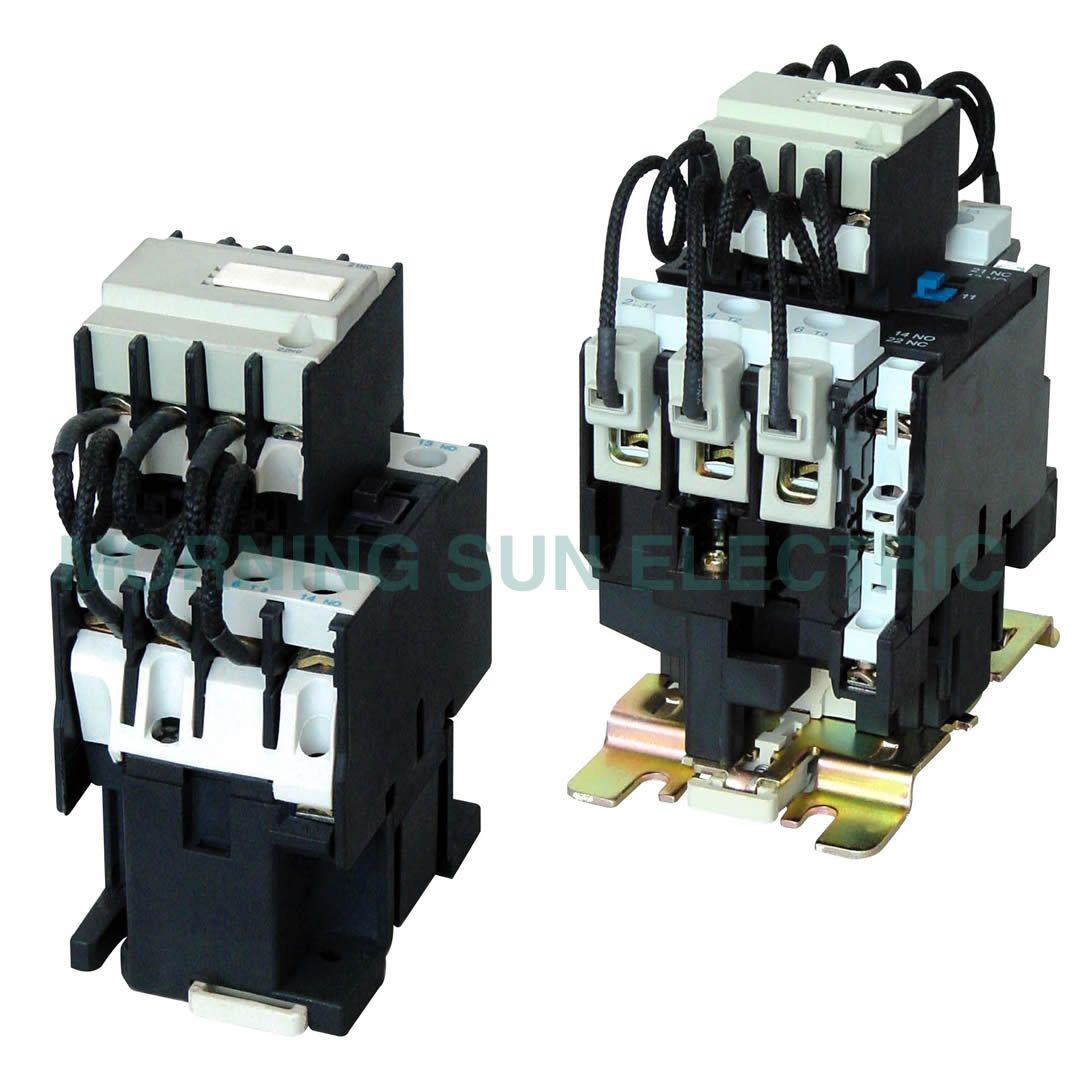

CJ19 AC contactor switch over for power capacitor 63A 220V 3 pole
The contactor is direct action double break structure ,the contact system consists of upper and downward layout ,upper part has 3 pairs of contacts and current limiting resistance what become surge restrained device ,when closing current limiting contacts will make several millise cond at first ,then work contact is made closed later ,,current limiting contact will be released under the action of everlasting magnet and spring ,current limiting resistance is switched off ,please read contact inside electrical circle diagram
.
CJ19 AC contactor switch over for power capacitor 63A 220V 3 pole Main technical data
Item | Voltage | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-95 |
Electrical life 104 |
| 10 | 10 | 10 | 10 | 10 |
Rated current (380v)A |
| 17 | 23 | 29 | 43 | 63 |
Controllable capacity (kvar) | 220v | 6 | 9 | 10 | 15 | 22 |
380v | 12 | 18 | 20 | 30 | 44 |
Rated insulating voltage (V) |
| 500 | 500 | 500 | 500 | 500 |
Surge limiting capacity |
| 20le | 20le | 20le | 20le | 20le |
Operating conditions | Absorbing (85%-110%)US release (20%~75%)Us |
Coil burden (start up /lasting )VA |
| 70/8 | 110/11 | 110/11 | 200/20 | 200/20 |
Control capacity of auxiliary contact | AC 15 360VA DC-13 33W |
Weight |
| 0.44 | 0.63 | 0.64 | 1.4 | 1.5 |
Contactor model | A max | B max | C max | D max | E | F | Notes |
CJ19-25 | 80 | 47 | 124 | 76 | 34/35 | 50/60 | Screw mounting and 35mm railway available |
CJ19-32 | 90 | 58 | 132 | 86 | 40 | 48 |
CJ19-43 | 90 | 58 | 136 | 86 | 40 | 48 |
CJ19-63 | 132 | 79 | 150 |
|
|
| Except for screw mounting ,also can use 35 70mm railway available |
CJ19-95 | 135 | 87 | 158 |
|
|
|
CJ19 AC contactor switch over for power capacitor 63A 220V 3 pole advantage
1.20 years global leading profession manufacture of reactive power compensate
2. No power pollution
3.Zero voltage trigger no inrush current
4.Zero current resection without arc
5.It replace solid switch , solid switch replace ac contactor
6..Fast delivery : you will get the order when you need it
7.OEM is warmly welcome
8.Convenient : 45 minutes to wenzhou airport
CJ19 AC contactor switch over for power capacitor 63A 220V 3 pole function
1.CJ19-25-43 contactor have two pairs of auxiliary contacts ,
2.CJ1963/95 has three pairs auxiliary contacts .contactor 's terminal have isolation cover .it is safety .coil connect terminal have V signal avoid to connect wrong .
3.CJ19-25/43 has screw installation way .and it also have other way din dial 35mm .and face cover have a discharge square sheet .and user can print the code on the sheet .
4.CJ19 63/95 only have din dial 35mm or 75mm
