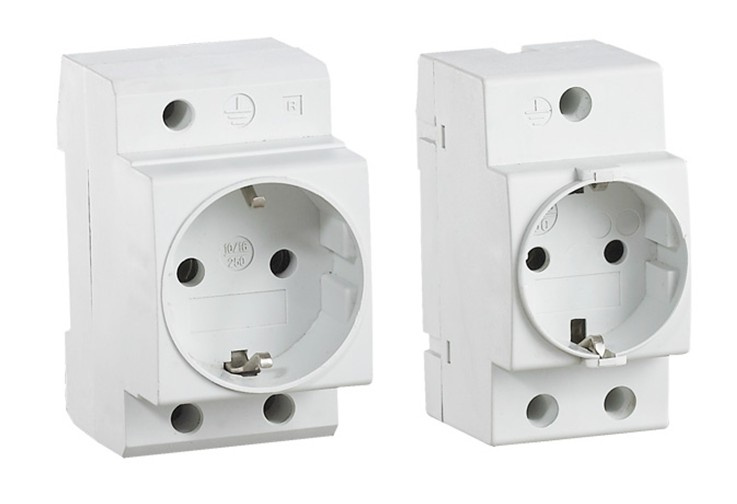

Switch Socket / Electrical Sockets / Modular Socket (STP)

Product Specifications

Prod Model:	STP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang, China (Mainland)
Rated Voltage:	250V
Installation:	Plug on The Electric Equipment,DIN Rail
Type Of Grounding:	Standard Grounding
Voltage:	440V
Packaging Details:	by Carton ,1PCS in Paper Box with PP Bag
Life:	Long
Applying:	Office,Family Farmland,
Operation Life:	5000 Cycles
Modular Mounting:	Yes
Grounding:	Standard Grounding
Type:	With Switch
Application:	Residential/General-Purpose
Color:	White
Certification:	RoHS
Customized:	Customized
Condition:	New
Hole-Digit:	All
Cable Length:	Customized
IP Rating:	Customized

Product Description

Frequency: 50 or 60Hz
Electrical life: 5000times
Rated insulation voltage Ui: 500V
Rated impulse withstand voltage
Uimp: 5000V
Dielectric test voltage at ind. Freq.
For 1 min.: 2.8kV

Mounting category: II, III
Pollution degree: 2
Protection class: IP20
Standard mounting: 35mm DIN rail
Ambient temperature: -5 centigrade to +40 centigrade
Storage temperature: -25 centigrade to +70 centigrade

STP7 and STW 20 Modular Socket can be used together with our other modular products for connection
Of mobile devices, tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.

Catalogue Number	Rated  current (A)	Standard	Width (mm)	Connection capacity
ST P7	10, 16, 25	France	44.5	≤   6mm 2
ST P20	10, 16, 25	Germany	44.5	≤   6mm 2
