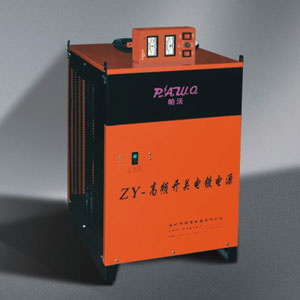

Switching DC Power Supply for Electro Plating
Features
1. Small, light and efficient.
The proper combination of unique assembly structure and nanotechnology makes it small in size and lightweight, saving space and improving efficiency.
2...High-frequency pulse current output.
It can be used in the electroplating of non-ferrous metals and alloys. With strong penetrability and adhesion, it can significantly quicken deposition rate of the plating coat.
3. Easy and flexible operation.
The output voltage and current can be adjusted freely and flexible according to the electroplating requirements. It can also be flexible switched between constant voltage and constant current complete protection functions.
It has many functions which protect against input under-voltage, over-voltage, phase loss, output over-current and overheating respectively.
The duct treated internal structure enables reliable performances of the whole product. All of the electronic elements are sealed completely to reduce harm from the exterior environment and ensure stable and long-term operation.
4. Expandable functions.
Timing control function and communication function. (4-20mA, 0-5V and 0-10V standard control signal interfaces are optional)
Soft start and current calculation (ampere hour) Complete models. Optional output specifications (output voltage and current ). Optional matching functions and control modes.
Applications: It can be used in electroplating of acid copper, alkali copper, nickel, zinc and chrome, as well ad electrolytic degreasing.
|
specification |
|
Input voltage |
Three phase AC380V± 15% single phase AC220V± 15% 50HZ |
|
Output rated value |
Output current : 0-20000A as your requirement
Output voltage : 0-6V 12V18V 36V as your requirement |
|
Output range |
Output voltage: 0~rated value. (no limited)
Output current : 0~rated value. ( no limited) |
|
Control mode |
PWM Pulse control |
|
Cool mode |
Forced by air cooling |
|
Control accuracy |
Rated value within± 1% |
|
Operation mode |
The precision of voltage-stabilizing and current-stabilizing under the condition of different operation |
