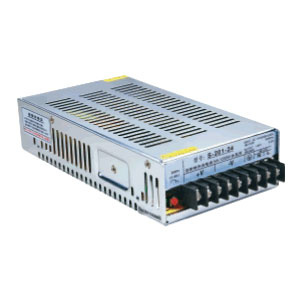

Switching Power Supply 200W

Name: Switching Power Supply 200W
Brand: china-manufacturer-directory.com
SKU: 647101695
Availability: InStock
Rating: 5 (147 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Single unit output: Powers 200W
Input voltage 110/220VAC± 20%. Selected by swich
When the orders input
Output voltage: The voltage we all can produce between3V-220VDC
215× 115× 50mm

Model Specification	S-201-5	S-201-12	S-201-24	S-201-48
DC output	5V 40A	12V 16.5A	24V 8.3A	48V 4.2A
Wave and noise	150mVp-p	150mVp-p	150mVp-p	240mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%
Efficiency	74%	80%	83%	84%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC Selected by switch 47~63Hz,240~370VDC
AC input voltage range	Cold-start current 25A/115V 50A/230V
OverLoad protection	105%~135% hiccup mode,auto-recovery
OverLoad protection	115%-145% rated output voltage
Setup,rise,hold up time	200ms, 100ms, 20ms
Withstand voltage	I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
Working temperature	-10~+50
Safety standards	Design refer to GB4943,UL60950,EN60950
EMC standards	Design refer to GB9254,EN55022 classB
Weight	0.9kg

Prod Model:	S-200
Output Type:	Single
