Supplier: | Star Security Technologies(Shanghai)Co., Ltd. |
---|---|
Price: | US $ 12-15/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,EXW,CIF |
![]() |
Prod Model: | ST-P01 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output: | Single |
Voltage: | 12V |
Size: | 120X95wx38mm |
Time Relay: | 0~15sec |
Output Voltage: | 12VDC; 3A |
Protect Safely: | Short Circuit Protection |
Weight: | 0.5kg |
Standard Designe: | Steel Material, Painte |
Contact Wire: | Red, Black |
Applicaion: | Access Control, Electric Lock |
Output Type: | Single |
Warranty: | 1 Year |
Connection Mode: | Series Switching Power Supply |
Starting Mode: | Separate-excited Switching Power Supply |
Voltage Regulating Mode: | Width Modulation Type |
Output Power: | 36W |
Input Voltage: | 12V |

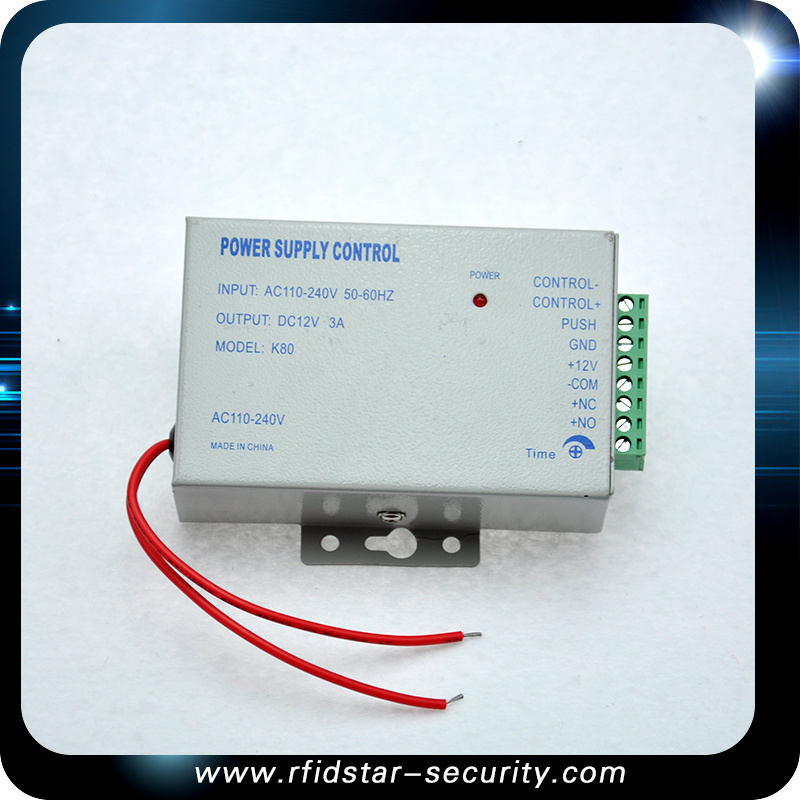

Access Control power supply Specification | |
Dimensions | 120Lx95Wx38H(mm) |
Input Voltage | 110VAC~260VAC;50HZ~60HZ |
Output Voltage | 12VDC |
ripple voltage | Up ≤ 50mV |
Output Power | 50W |
Output current | 3A ( largest ) |
Output Contact | Access control, Electric Lock, Release Button |
Time Relay | 0~15sec. |
Standard Designe | Steel material, Painted |
Protect Safely | Short Circuit protection |
Suitable For | Access control, Electric lock |
Weight | 0.4kg |
Warranty | 12 months |
Protection Level | 2 |
Fourth, the output terminal wiring diagram | Figure |
Features | |
1: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled lock(0-15 seconds delay , a positive , three negative ) ; | |
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered, then the electric or magnetic latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ; | |
3: DC12V output voltage regulation, 4 is positive , 5 negative ; | |
4: open button input terminal ( for negative power supply ) , which can be accessed switch output (relay output, low )control Electric lock access control system ; | |
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output ( relay output, high level ) control ,Electric lock access control system ; | |
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control |
