Wenzhou Reelen Import And Export Co., Ltd. >> Switching Power Supply S-120 Single Output

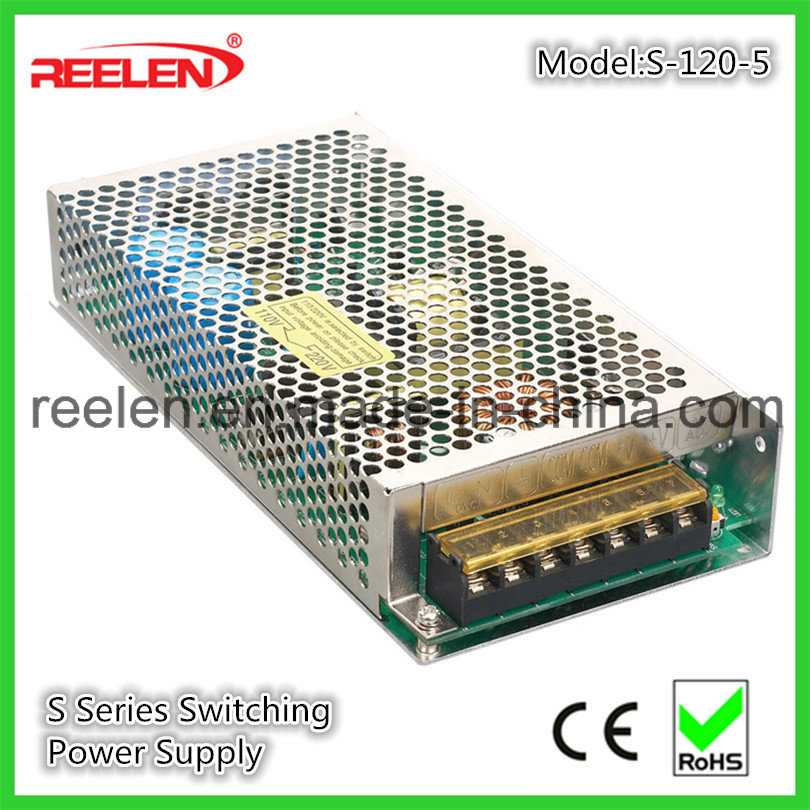

Switching Power Supply S-120 Single Output

Name: Switching Power Supply S-120 Single Output
Brand: china-manufacturer-directory.com
SKU: 751147655
Availability: InStock
Rating: 4.6 (70 reviews)

Supplier:	Wenzhou Reelen Import And Export Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-120-5, 12, 15, 24, 48
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	101 - 200W
Input Voltage:	Full Range
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	Reelen

Product Description

1. Features:
1. Low price and high reliability
2. AC input range selected by Switch
3. Protections:Short circuit/Over load/Over voltage
4. High efficiency and Long life
5. Soft-start current can reduce the AC input impact effectively
6. Cooling by free air convection
7. Compact size, light weight
8. 100% full-load burn-in test
9. Installed with EMI filter, minimum wave
10. Low output ripple and noise
11. CE.ROHS approval
12. 2 years warranty

2.Specifications

MODEL		S-120-5	S-120-12	S-120-24	S-120-48
OUTPUT	DC VOLTAGE	5V	12V	24V	48V
	CURRENT RANGE	0 ~ 24A	0 ~ 10A	0 ~ 5A	0 ~ 2.5A
	RATED CURRENT	24A	10A	5A	2.5A
	RATED POWER	120W	120W	120W	120W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	10.8 ~ 13.2V	21.6 ~ 26.4V	43.2 ~ 52.8V
	VOLTAGE TOLERANCE NOTE.3	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.3%	±0.3%	±0.2%	±0.2%
	LOAD REGULATION	±0.3%	±0.3%	±0.2%	±0.2%
	SETUP, RISE TIME NOTE.5	200ms, 10ms, 30ms at full load
INPUT	VOLTAGE RANGE	85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	78%	82%	83%	84%
	AC CURRENT (Typ.)	2.4A/115VAC 1.2A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	105% ~ 150% rated output power
		Protection type : Fold back current limiting, recovers automatically after fault condition is removed.
	OVER VOLTAGE	115% ~ 135%
		5.75 ~ 6.75V 13.8 ~ 16.2V 27.6 ~ 32.4V 55.2 ~ 64.81V
ENVIRONMENT	WORKING TEMP.	-10ºC ~ +60ºC(Refer to output load derating curve)
	WORKING HUMIDITY	20% ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20ºC ~ +85ºC , 10% ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/ºC(0 ~ 50ºC )
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC(Note 4)	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Design refer to FCC Part15 J Conduction Class B
OTHERS	MTBF	314.9K hrs min. MIL-HDBK-217F (25ºC)

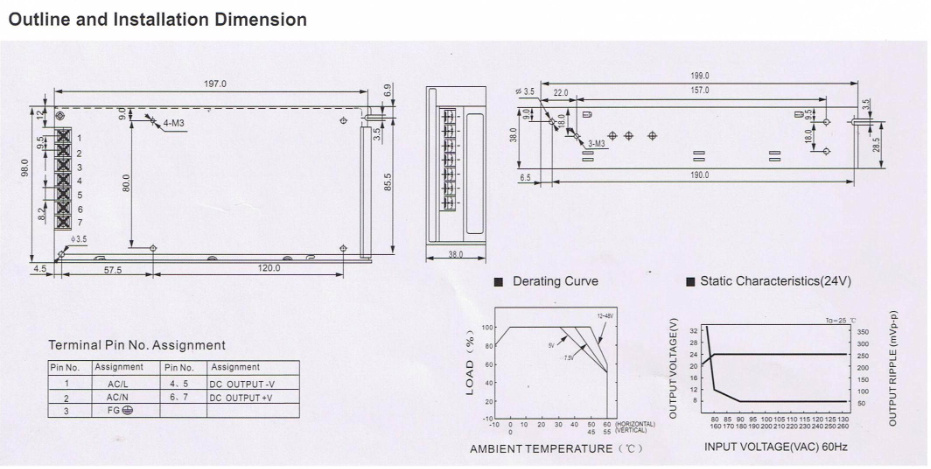

	DIMENSION	1999838mm (LWH)
	PACKING	0.65Kg; 20pcs/14.2Kg/0.8CUFT
NOTE	1.The testing condition for the parameter above is:230VAC input, rated load,25°C 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note,5) 3.Wave test:adopting"A12"double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting. 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.

Why choose REELEN:

1. One-stop supplier globally.
2. 8 years professional experiences in electrical appliance industry.
3. We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: REELEN will be responsible for any problem.
9. Whatever big or small order,we can provide you one-to-one service.
10. Most of our products have passed CE, ROHS certificates.

Our Service:
We can provide sample pieces.
We can make the special samples as clients' requirement.
We can do everything before delivery. You only need to make the order,then box designing,raw material preparing,product producing,delivery and documents preparing all can be done by ourselves.
We can desgin the products color box,based on customers' requirement.
