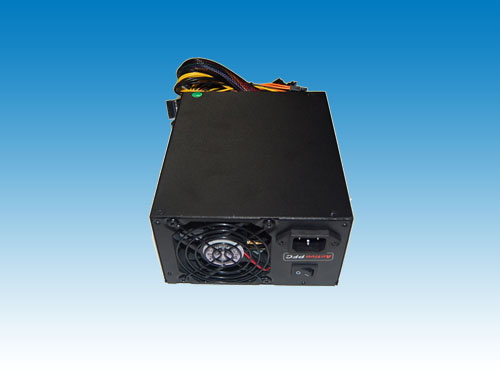

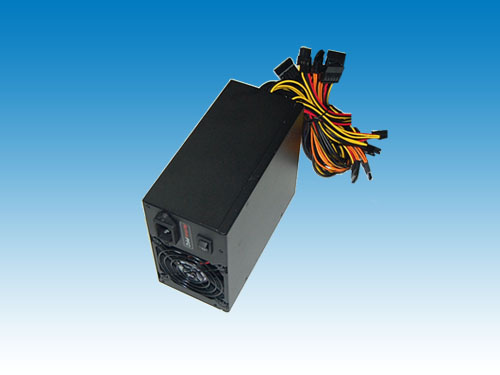

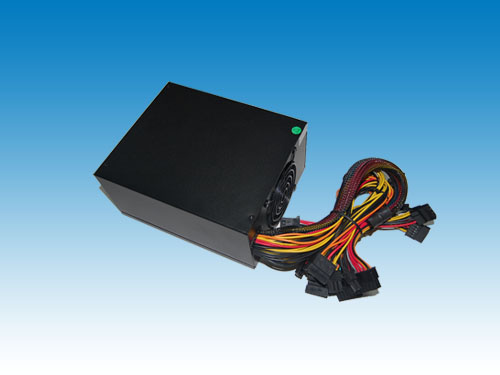

Switching Power Supply Single Output PC ATX
Product Specifications
| Prod Model: |
LD-APFC550W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compatible Mainboard: |
ATX |
| Material: |
Plastic |
| Color: |
Black |
| Case Structure: |
ATX |
| Cable Management Feature: |
Back Cable Man |
| Front Interface: |
ODM |
| Sheet Thickness: |
1mm |
| Maximum Lenght Of Graphics Card: |
200-300 |
| Each Box Number: |
10PCS |
| Use: |
Tower |
Product Description
Product Description
Product Description:1. Features: * Stable output * High quality material * One year warranty * 80plus bronze certification
* 100% full load burn-in test * High efficiency, long life and high reliability * LED indicator for power on 2. Specifiction*
ATX Version: ATX 12V 2.3Ver * Support the latest Intel & AMD processors
* Support SLI and Crossfire
* Support Serial ATA interface
* Efficiency: > 85% Typical
* Thermal Control Technology
* PCI-Express 6pin Connector
* Silent 135mm Intake Fan
* Dimensions: 150 x 158 x 86mm
* 20+4pin*1(with sleeve) power connector * 8pin*1 12V power connector * 6pin PCI-E*1 power connector * PCI-6pin+2pin power connector * SATA*6 power connector * 6 large Molex 4-pin power connectors * 1 small floppy power connector * 550mm cable * 1.5m European cord / American cord.AC input range selectable by switch 3. Protections:* Short circuit protection
* Over current protection
* Over voltage protection
* Overcharge protection
* Overdischarge protection
* Cooling by free air convection
| Specification | LD-APFC550W |
| Wave and noise | 75mVp-p |
| Inlet stability | ±0.5% |
| Load stability | ±0.5% |
| Adjustable range for DC voltage | ±10% |
| AC input voltage range | 85-132VAC/170-264VAC 47-63Hz |
| AC Inrush current | Cold-start current 25A/115V 50A/230V |
| DC output | 12V 29A |
| OverLoad protection | 105%-150% hiccup mode,auto-recovery |
| Over-Voltage protection | 115%-150% rated output voltage |
| Withstand voltage | I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
| Isolation resistanc | I/P-O/P IP/FG OP-FG:500VDC/100MΩ |
| Working temperature | -10ºC_+50ºC |
| Weight | 1.0Kg |
