Switching Regulator Modular Switching Power Supply

Name: Switching Regulator Modular Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 756959905
Availability: InStock
Rating: 4.8 (39 reviews)

Supplier:	Wenzhou Tosun Electric Co., Ltd.
Price:	US $ 47-137/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DRP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency:	84%~89%
R&N:	80, 120 or 150mv
Power:	240, 480W
Output Voltage:	24, 48V
Dimensions:	12.512.5100mm, 227125.2100mm
Output Type:	Single
Output Power:	1 - 50W
Input Voltage:	110-220V
Warranty:	1 Year
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Brand:	Tosunlux

Product Description

Specification

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DR-30-5	5V, 0.0-3.0A	±2%	80mV	74%	30W
DR-30-12	12V, 0.0-2.0A	±1%	120mV	81%	30W
DR-30-15	15V, 0.0-2.0A	±1%	120mV	82%	25W
DR-30-24	24V, 0.0-1.5A	±1%	150mV	83%	30W
DR-45-5	5V, 0.0-5.0A	±2%	100mV	72%	45W
DR-45-12	12V, 0.0-3.5A	±1%	200mV	77%	42W
DR-45-15	15V, 0.0-2.8A	±1%	240mV	77%	42W
DR-45-24	24V, 0.0-2.0A	±1%	480mV	80%	48W
DR-60-5	5V, 0.0-6.5A	±2%	80mV	76%	60W
DR-60-12	12V, 0.0-4.5A	±1%	120mV	82%	60W
DR-60-15	15V, 0.0-4.0A	±1%	120mV	83%	60W
DR-60-24	24V, 0.0-2.5A	±1%	150mV	84%	60W
DR-75-12	12V, 0.0-6.2A	±2%	100mV	76%	60W
DR-75-24	24V, 0.0-3.1A	±1%	150mV	82%	60W
DR-75-48	48V, 0.0-1.5A	±1%	240mV	83%	60W
DR-120-12	12V, 0.0-10A	±2%	80mV	80%	120W
DR-120-24	24V, 0.0-5.0A	±1%	80mV	84%	120W
DR-120-48	48V, 0.0-2.5A	±1%	100mV	84%	120W
QSR-25-5	5V, 0.0-5A	±1%	80mV	60%	25W
QSR-25-12	12V, 0.0-2.0A	±1%	80mV	65%	25W
QSR-25-24	24V, 0.0-1A	±1%	100mV	72%	25W
QSR-25-28	48V, 0.0-0.5A	±1%	240mV	75%	25W

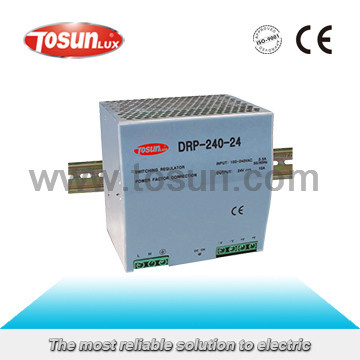

DRP-240-24	24V 0.0-10.0A	±1%	80mV	84%	240W
DRP-240-48	48V 0.0-5.0A	±1%	150mV	85%	240W
DRP-480-24	24V 0-20A	±1%	120mV	89%	480W
DRP-480-48	48V 0-10A	±1%	120mV	89%	480W

About us

1. More than 21 years' experience. We have extensive experience in low tension electric items illuminaiton products.

2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².

3. Reliable quality. We have a group of professional inspectors supervisng the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.

4. Favorable service. We have experienced salesmen to handle business for you specially.

5. Attractive packing. We have particular designers in charge of packing material in a unique style.

For Further Information
www.tosun.com www.tosunlux.com

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
