Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

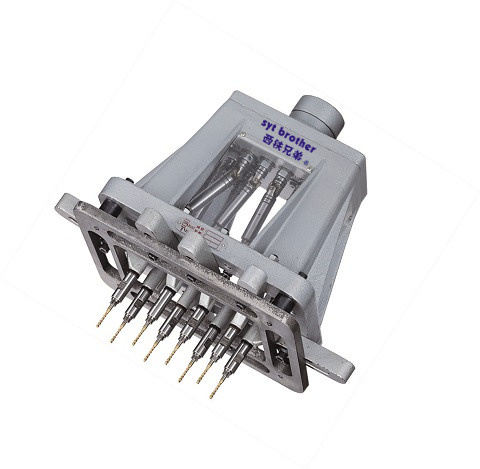

SWU-series multi-spindle (multi-axis drilling / multi-axis head / multi-axis drilling / drilling group) structure with the use of a gearbox consisting gimbal head, easy adjustment, processing pitch from gear restrictions, saving adjustment time, very few restrictions dead, the bearings, gears, output shaft, universal joints are made of a strong series, suitable for steel and other powerful applications. To maintain this life gimbal head movement range should not exceed 15 degrees, which is equal to the vertical around, less than 30mm
model | SWU110 | SWU165 | SWU200 | SWU250 | SWU100×165 | SU120×200 | SU120×300 |
| Speed ratio | 1:01 | 1:1 | 1:1 | 1:01 | 1:01 | 1:01 | 1:01 |
| Minimune Range (MM) | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Maximum Range (MM) | 110 | 152 | 190 | 240 | 90×152 | 106×190 | 10×290 |
| Multi Axis Support | 2-8 | 2-10 | 4-12 | 4-12 | 3-18 | 4-12 | 6-14 |
| Feature | Multi holes can be drilled or tapped at once time. |
Adjustable multi-spindle features:
Adjustable multi-axis machining within its scope, its number of spindles, the distance between the spindle can be adjusted, once processed simultaneously feed several holes. When the machine is working, it can automatically fast forward, work into (workers back), rewind, stop, with single-axis drilling (tapping) relatively high workpiece accuracy, efficiency quickly, investors can effectively save manpower and material resources ,financial resources. In particular, automated machine tools greatly reduce the operator's labor intensity.
Founded in year 2000, Located in Tainan City, Taiwan Province, SYT BROTHER is a professional manufacturer and exporter of Precision automatic tapping machine, CNC machine, precision automatic drilling machines, multi-axis drilling and tapping machine.
Our products are widely used in machinery manufacturing and processing a wide range of industries such as engineering machinery manufacturing, mold manufacturing, energy equipment manufacturing, large refrigerator and compressor manufacturing, railway locomotive industry, vehicle manufacturing, aerospace manufacturing, precision electronic parts manufacturing.
With years of practice, we have been recognized as a leading tapping & drilling solution provider in China and featured by the following points:
1. Strong R&D capability-16 years always develop or customize the products right to your need
2. Well-organized quality control system- make sure high speed, high precision, accuracy machine for you.
3. Short lead time and good flexibility -always well support you in challenging projects
SYT BROTHER always provide superior quality products with competitive price, prompt delivery and excellent services. We are your reliable business partner.
