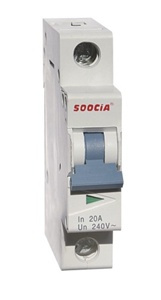

Sxb2 (L7) Type High Quality Professional Mini Circuit Breaker with CE Approval
Product Specifications
| Prod Model: |
SXB2(L7) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pole No: |
1p,2p,3p,4p |
| Rated Voltage(V): |
230/240V |
| Rated Current(a): |
1,3,5,6,10,16,20,25,32,40,50,63 |
| Characteristic Curve: |
B,C,D |
| Rated Breaking Capacity(Ka): |
7.5,10 |
| Electrical Life: |
>6000 Times |
| Mechanical Life: |
20000 Times |
| Tropicaliration: |
Treatment2(Rh95%,At55) |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
CE |
| Poles Number: |
1p,2p,3p,4p |
Product Description
Application SXB2(L7) mini circuit breakers series are new kinds of products researched and developed by the company on the basis of digesting and obsorbing the international advanced technology. The products are provided with the features such as reliable product performance, accurate protective characteristics, high breaking capacity and small appearance. It is the best product for entering into twenty-first century.
The circuit breaker is applicable to rotect from overload and short circuit in the circuit of AC 50/60Hz, rated voltage 230/400V, rated current 63A. It also can be used in switch the infrequent operation of the circuit under normal conditions. It is mainly used in industry, commerce, high-rise buildings and residential houses and other fields.
The circuit breaker conforms to IEC60898:1995,EC60947,GB10963-1999 standards. It has attained the Electrical Equipment Safety Certificate.
Zhejiang Songxia Electric Meter Co., Ltd. is recommend by the national economy and commerce authority department, founded in 1992, is one of the earliest manufacture in our city, and also the largest export company in the field of meters in Wenzhou. Of the earliest manufacture in our city, and also the largest export company With building area of more than 12000m2 and kinds of high precision specialized equipment. High and new-technology industries and advanced technology use in our many kinds of products. Our products have more than 40 national certificates authorized by the national technology management. We get export certificate from 1999 and our products are very popular and famous in domestic markets, export to many countries and areas such as Pakistan, Nepal, Thailand Bangladesh, Philippine, ltaly, Sudan, Taiwan, etc. Of the earliest manufact.
Our company is established in high-tech and best quality, recognition the customer is the most important, quality is the best, service is the best and credit standing is the best, and we carry out these in our production, Supply and distribution. Our company has perfect quality system. It has passed the ISO9001 Quality System, CCC Quality certificate and KEMA Quality certificate, carrying out currently national standard and International Electro Technical Commission IEC521 standards strictly. With outstanding achievements, our company has got many honorary titles by our government such as Abide by contract, keep promise enterprise, Outstanding enterprise, Consumer recommends goods, Quality brand in Zhejiang Province etc.
We stillcarry on the developmentand research of new products constantly; Absorbing advanced technology and modernized technology equipments and management. We will abide by quality promise with the sprite of expanding, innovating quality, and marketing. Songxia will be more powerful and good further by your support.
