Product Specifications
| Prod Model: |
SY-A500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Working Voltage: |
20mpa |
| Machine Size: |
800*700*1200mm |
| Max Output Flow: |
9kg/Min |
| Voltage Requirements: |
2-pH 220V 50Hz/3-pH 380V 50Hz |
| Insulation Material Mixing Ratio A:B: |
1:1 |
| Pneumatic Source: |
0.7-0.9mpa 1m³/Min |
| Net Weight: |
170kg |
| Max Feeding Tube Length: |
90m |
| Cleaning Mode: |
Free Cleaning, Air Purge Type Gun |
| Automation: |
Automatic |
| Type: |
Polyurethane Foam Machine |
| Computerized: |
Computerized |
| Certification: |
GMP |
| Principle: |
High-Pressure Air Type |
| Raw Material: |
Mixing |
Product Description
Brief introduction:
Polyurethane foaming material has many advantages such as indulation, heat proofing, noise proofing and anticorrative etc. Widely used in many areas. Environmental friendly and energy-saving. The insulation and heatproofing function are better than any other materials.
Application:
Mainly for pouring construction, spraying construction, buffer packaging.

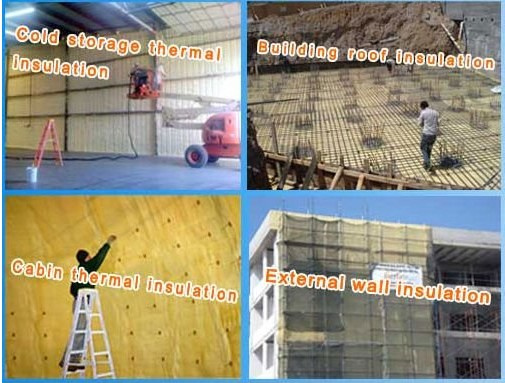

For spraying: Building exterior and interior wall spraying, cold storage spraying, cabinet insulation and noiseproofing of car&bus, roof insulation and waterproof, refrigerated trucks and industrial anticorrative spraying.
For injecting: Solar water heater, car seat moulding, refrigerator, freezer, pipe joints, door-crack padding, products padding&packaging, roller shutter door, security door, road construction, wall noiseproofing, landscape modeling etc.
Heating power 9000watts
Standard configuration:
Main engine: 1 unit
Spray gun: 1 piece
Feeding pump: 2 pieces
Material insulation pipe: 15m/set(can be up to 90m)
Short tube connect with gun: 1.5m
1 set of accompanied accessories
