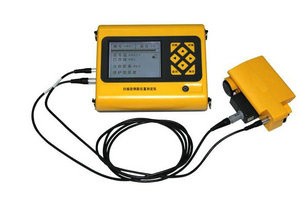

PurposeSYR51+ rebar Location system is used to test rebar diameter, distribution, coating thickness in concrete.
Specification JGJ/T152-2008
Performance
Longer service life of the Connector Clip: The instrument has long service life because of using Lemo Connector Clip which comes from Swiss and uses for aircraft industry.
Good quality of signal cable: The signal cable has long service life because of its flexible and substance.
High precision and stability: The instrument can locate the steel-bar accurately and quickly.
Longer service life of the sensor: Improve the service life by paste abrasion resistance allowance bottom of the sensor
Single sensor: No-change sensor in test, switching between high and low test range can assure the precision of test data and the test depth.
Display test information real-time: Display the test data directly to avoid man-made errors.
Grid and section scan mode: Instrument can display steel bar distribution and scan steel bar without concrete boundary limited.
Three-wheel steel-bar scan system: The system can assure scan path along line and the precision of test data.
Powerful Windows data process and analysis software: Software can display analysis result by diagram. Test data can be export to word or Excel easily.
Technical Data
Applicable rebar diameter | 6mm~50mm |
Tested range of concrete coating thickness | Low range: 6mm~90mm; High range: 7mm~190mm |
Permissible error |
| Low range | High range |
±1 | 6~59 | 7~79 |
±2 | 60~69 | 80~119 |
±4 | 70~90 | 120~190 |
Tested range of rebar diameter | 6mm~50mm |
Permissible error of rebar diameter test | ±1 grade |
Applicable environmental | Temperature: -10ºC~+40ºC; Dampness: <90%RH EMI: no Strong electromagnetic field |
Power supply | 6 dry cells, work more than 30 times |
