Product Description

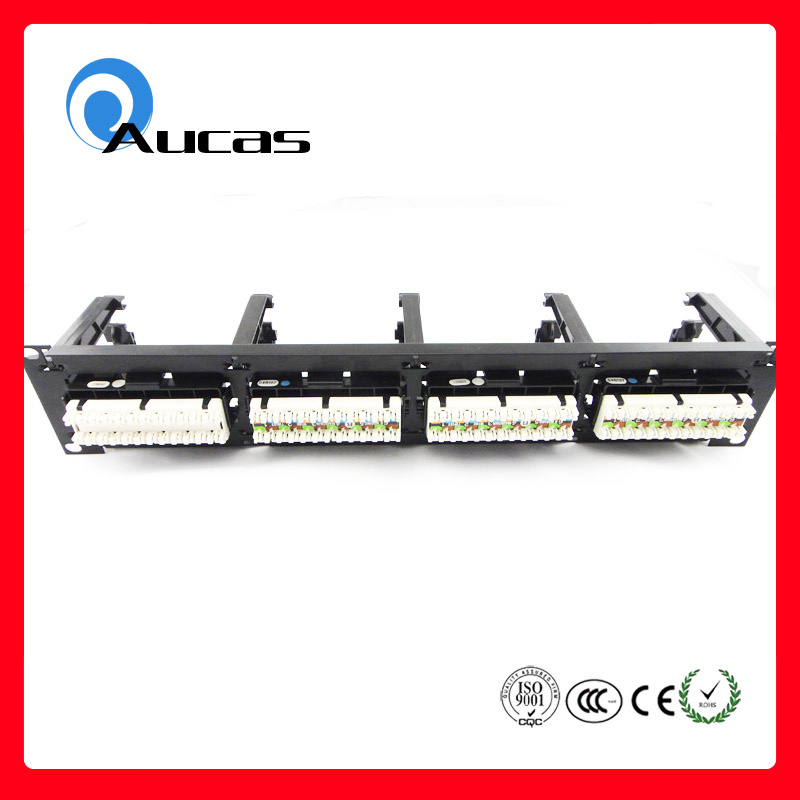

Description of Systimax CAT6 24 port UTP patch panel
Specifications
12/24/48 Ports UTP Patch Panel
Quality product, low price and honest service
Cat5e/CAT6 UTP 24/48 ports patch panel
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5e/6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110&Krone Type
Electrical:
According to UL 1863
Current rating: 1.5 AMP Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area.
