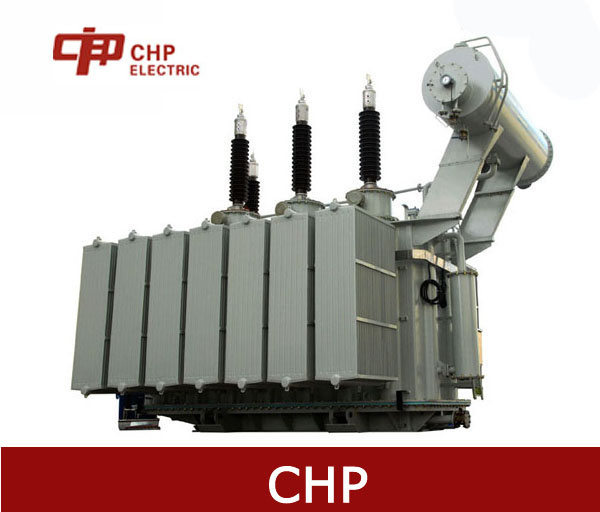

SZ10 110kv on-Load-Tap-Changing Power Transformer

Name: SZ10 110kv on-Load-Tap-Changing Power Transformer
Brand: china-manufacturer-directory.com
SKU: 709784425
Availability: InStock
Rating: 4.4 (24 reviews)

Supplier:	Yueqing Champn Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer
Application:	Power

Product Description

The 110KV Level Oil Immersed On-Load Regulation Power Transformer has to series of big changes in material, technical and construction with the characters of small size. Light weight, high effiency with low loss and low noise, stable opable operation which cutting down large number of loss from Energy GRID and missing operation charge, improving the industrial economic benefit. It is used in power plant, transformer substation, big-sized and chemistry factory and etc.

110KV POWER TRANFSORMER
Rated capacity	Voltage combination		Vector group	S9 series		S10 series		No-load	Short-circuit
(KVA)	and tap range							Current	Impedance
	(KV)							(%)	(%)
	HV	LV		No-load loss	Load loss	No-load loss	Load loss
6300		6.3	Ynd11	9.3	36	8.4	34	0.77	10.5
8000		6.6		11.2	45	10.1	43	0.77
10000		10.5		13.2	53	11.9	50	0.72
12500		11		15.6	63	14	60	0.72
16000				18.8	77	17	73	0.67
20000	110+/-2*2.5%			22	93	19.8	88	0.67
25000				26	110	23.4	105	0.62
31500	121+/-2*2.5%			30.8	133	27.7	126	0.6
40000				36.8	156	33.1	148	0.56
50000				44	194	39.6	184	0.52
63000				52	234	46.8	222	0.48
75000		13.8		59	278	53.1	264	0.42
90000		15.75		68	320	61.2	304	0.38
120000		18		84.8	397	76.3	377	0.34
150000		20		100.2	472	90.2	448	0.3
180000				112.5	532	101.3	505	0.25

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
