Standard:ISO 5470
Description:
The machine is suitable for cloth, paper, paints, plywood, leather, tile, glass, ceramic and natural rubber abrasion resistance test.
Working principle:
Mounted to a rotating turntable, specimens are subjected to the rub-wear action of two abrasive wheels. Driven by the test sample, the wheels produce abrasion marks that form a pattern of crossed arcs over a circular ring approximately 30 square centimeters. This reveals abrasion resistance at all angles relative to the weave or
grain of the material.
Specifications:
Specimen: outside diameter 120 mm internal diameter of 6.5mm thickness 3mm
Abrading Wheel: Φ2 "(max 45mm) (W) 1/2"
Abrading Wheel center spacing: 63.5mm
Abrading Wheel disc with specimen center spacing: 37mm ~ 38mm
Rotation speed: 70r.p.m.
Abrading Wheel track: outer diameter 3 " internal diameter 2" area of 30mm2
Load: 1000g
Counter: LCD display, counting can be 0 ~ 999,999
Specimen with vacuum tube distance: 3 mm adjustable
Volume (approximately): 53cm × 32cm × 31cm
Weight (approx.): 18kg
Power: 1∮ AC220V 50Hz 5A
Accessories:
Weight: 750g x2
Allen wrench: 5mm x1
Sandpaper: 150 # x10
Stickers (optional): 5
Abrading Wheel (optional): CS-10 / CS-17 / H-18 / H-22, optionally one pair
Auxiliary tool (optional):
Vacuum cleaner: 800W x1
| Specimens: | Ø120mm, Ø6.5mm, thickness: 3mm, 45mm, abrasion wheel: Ø2" (maximum) (W) 1/2" |
| Abrasion wheel center distance: | 63.5mm |
| Abrasion wheel specimens with disc center spacing: | 37-38mm |
| Rotary speed: | 70rpm |
| Abrasion wheel track: | outer diameter 3", Ø2", area was 30mm² |
| Load: | 1000g |
| Counter: | LCD liquid crystal display, counting can be 0 - 999999 |
| Specimens and dust collection tube distance: | 3mm is adjustable |

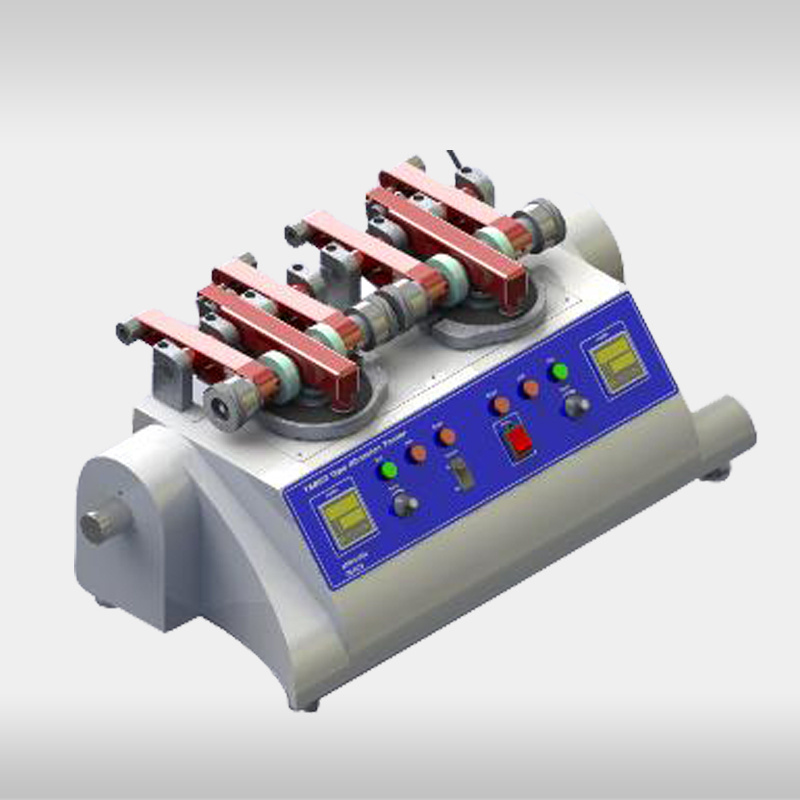

| Model: | MX-A2006A Taber Abrasion Tester - 1 Head |
| MX-A2006B Taber Abrasion Tester - 2 Heads |
| Dimensions(WxDxH): | 530x320x310mm |
| Power/air source: | 220/110V, 50/60Hz, 3A (In accordance with the national specified) |
| Weight: | 18kg/40lbs |
