Product Specifications
| Prod Model: |
CNC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Detail: |
Within 2 Weeks |
| Color: |
Red or Blue |
| Control Mode: |
CNC |
| Cutting Mode: |
Plasma |
| Type: |
CNC |
Product Description
Specifications
1. Cutting speed can reach 12m/min
2. Its efficiency and precision of cutting can be comparable to laser cutting
General Description

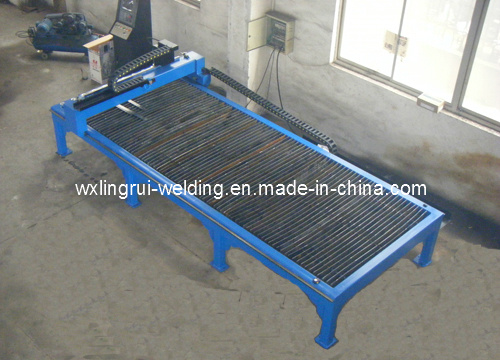

Table style CNC cutting machine is a compact-type device. As its lathe bed and guide rail are designed in a seamless structure, it can completely satisfy the rapid plasma cutting. The cutting speed can reach 12m/min. It is especially suitable for high precision cutting and parts in large quantities and small size with complex structure. Combined with its dust removing and equipment, underwater cutting platform and plasma power, its cutting precision and efficiency can be comparable to laser cutting. Also, it can achieve green cutting.
Features
1. It is unified modularization structure and easy and quick to install.
2. It is especially applicable to the cutting of small-size middle thin plate with high precision.
3. The main components such as body, crossbeam, column etc. Were through aging treatment, so they have good stability and high machining precision.
4. It has many functions such as automatic ignition, automatic perforation and capacitance height-regulating. If you select the plasma cutting, the arc voltage height-regulating device shall be equipped.
5. According to the needs of users, it can be used in flame cutting, plasma cutting, fine plasma cutting etc.
6. According to the needs of users, it can be designed to be smoke evacuation type worktable or underwater cutting type worktable to realize"environment friendly" cutting.
|
track gauge(mm) |
2500-4000mm |
|
cutting width(mm) |
2000-3500mm |
|
cutting length(mm) |
2000-8000mm |
|
drive speed |
4000-12000mm/min |
|
guide accuracy |
±0.2mm |
|
vertical accuracy |
±0.3mm |
|
lineation accuracy |
±0.3mm |
|
cutting accuracy |
Germany DIN8523 Standard |
|
number of torch |
1 set |
|
way of cutting |
plasma or fine plasma |
Wuxi Lingrui Welding & Cutting Technology Co., Ltd. is a high-tech enterprise, which designs, manufactures and provides automatic and efficient welding and cutting equipment. Products are widely used in shipbuilding, boiler, chemical, machinery, metallurgy, electric power, wind tower manufacturing, steel and other industries. Our products are exported to Europe, America, Southeast Asia and other countries.
We not only provide customized efficiently automatic welding system, but also can optimize integrate every process, such as prepare welding, welding working, after-treatment welding through various kinds of advanced processing equipment and efficiency logistics. We have a team of engineers who all have skillful welding and cutting knowledge, with designing application and considerate after-sale service, at the same time, our company imported foreign advanced technology and manager system.
Lingrui will keep hard working and provide satisfactory products for our customers. We always abide by the motto of innovation with keen determination, creditable management in pursuit of excellence.
